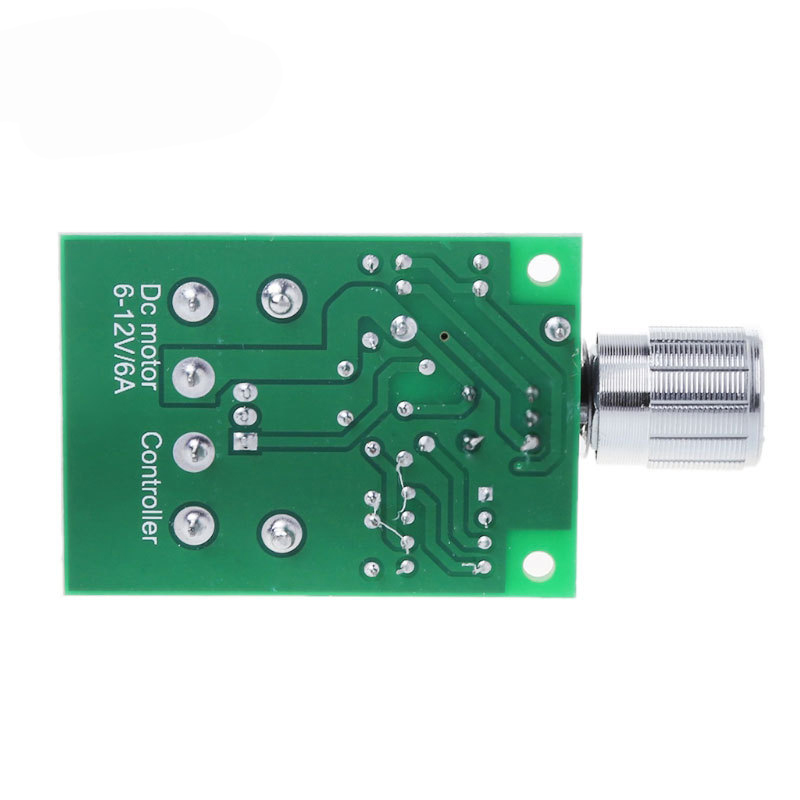

DC Motor Fan Speed Controller 6V-12V 6A High Power PWM Stepless Speed Control Board Speed Control SwitchItem NO.: 8F1
-
Customized Requirements
- Quantity
-
-
- Product Name: DC Motor Fan Speed Controller 6V-12V 6A High Power PWM Stepless Speed Control Board Speed Control Switch
- Item NO.: 8F1
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: High Power , 6A , Speed Control Switch , DC Motor Fan Speed Controller , 6V-12V , PWM Stepless Speed Control Board
- Creation Time: 2024-04-09
DC Motor Fan Speed Controller 6V-12V 6A
Product Parameters:
● Input voltage: DC 6-12V
● Applicable current: 6A
● Applicable motor: 6V/36W; 12V/72W
● Speed regulation range: 2% -100%
● PWM frequency: 15KHz

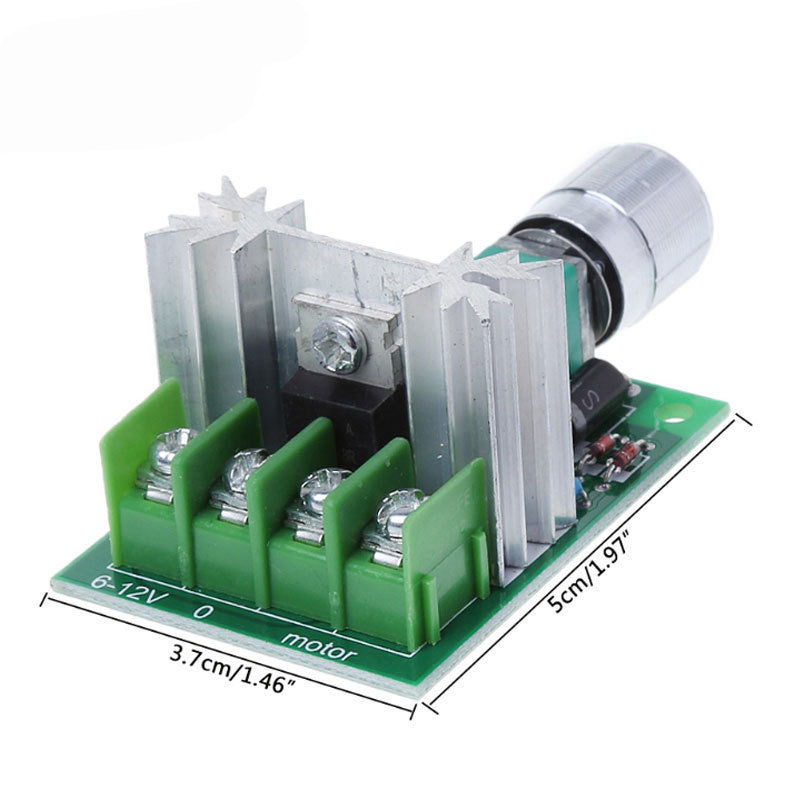

● Specification and size: 51 * 37 * 30mm
● Product weight: 35g
Product Features:
1. Select original MOS tubes to ensure product quality and quality
2. Equipped with thickened heat dissipation fins, easy to use and convenient to use
3. Precision Potentiometer, with switch function, aluminum alloy knob, fashionable and beautiful
4. Generous appearance, reasonable layout, and meticulous craftsmanship, just to do better
Precautions:
1. The input of the DC motor governor is DC power, and it cannot be directly connected to AC power (such as household 220 AC power), otherwise it will burn out!!!
2. Do not reverse connect the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.
3. The motor can distinguish between positive and negative, and when the running direction is not consistent with the expected direction, the direction can be changed by adjusting the line sequence.
4. Adjusting the Potentiometer knob can change the output duty cycle of the governor. When the motor speed changes the wiring, the circuit must not touch the radiator.
5. The Potentiometer is adjusted clockwise, and the greater the value is.
