Customized Requirements
- Quantity
-
-
- Product Name: MCU-83 AEDR-8300 Encoder Reflective 2-Channel Optical Encoder Encoders
- Item NO.: MCU-83
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: MCU-83 , AEDR-8300 , ncoder , Optical Encoder
- Creation Time: 2024-05-05

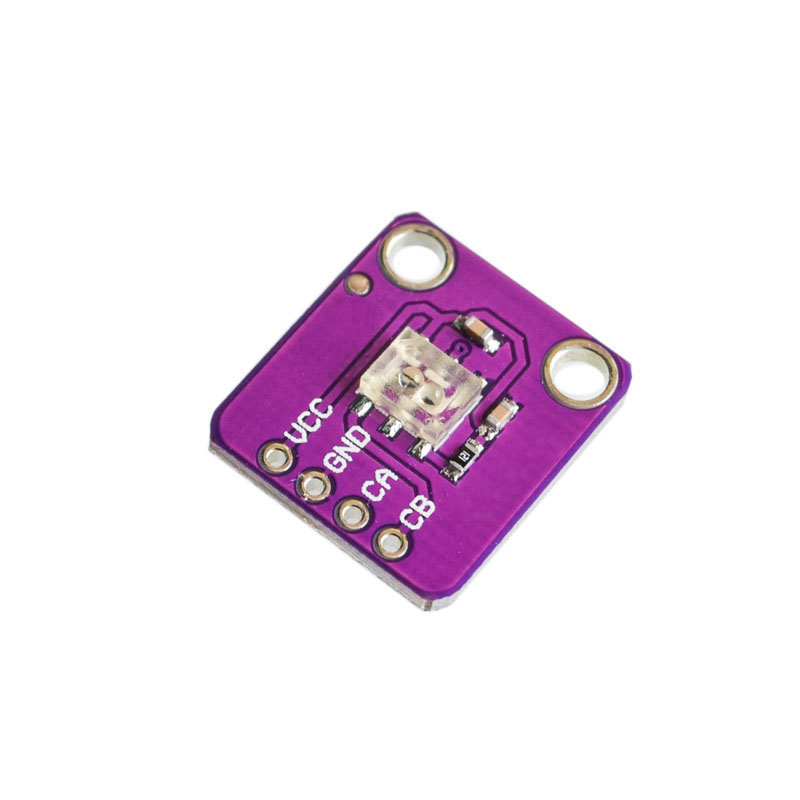

MCU-83 AEDR-8300 Encoder
Features:
AEDR-8300 is currently a small optical encoder product that uses reflective technology for motion control applications. When used with a coder or linear lever, it can convert rotary or linear motion into digital output. It consists of an LED lighting source, a detection IC with a photodiode, and a lens.
The AEDR-8300 series can output TTL level compatible orthogonal signals, so it can directly interface with most signal processing circuits.
Specifications:
● Reflective technology
● Surface Mount Small Profile
● Single channel incremental output
● Two channel orthogonal direction sensing for
● TTL compatible output - 5V single power supply
● Operating temperature from - 20 ° C to 85 ° C
● Encoding resolution options:
36, 75, 150, 180 (lines/inch) or 1.42, 2.95, 5.91, 7.09 (lines/mm)
Parameters:
● Module power supply voltage: DC4.5V-5.5V
● Working ambient temperature: 0 ° C-85 ° C
● Large counting frequency: 15KHz counting frequency=speed (r/m) * N/60

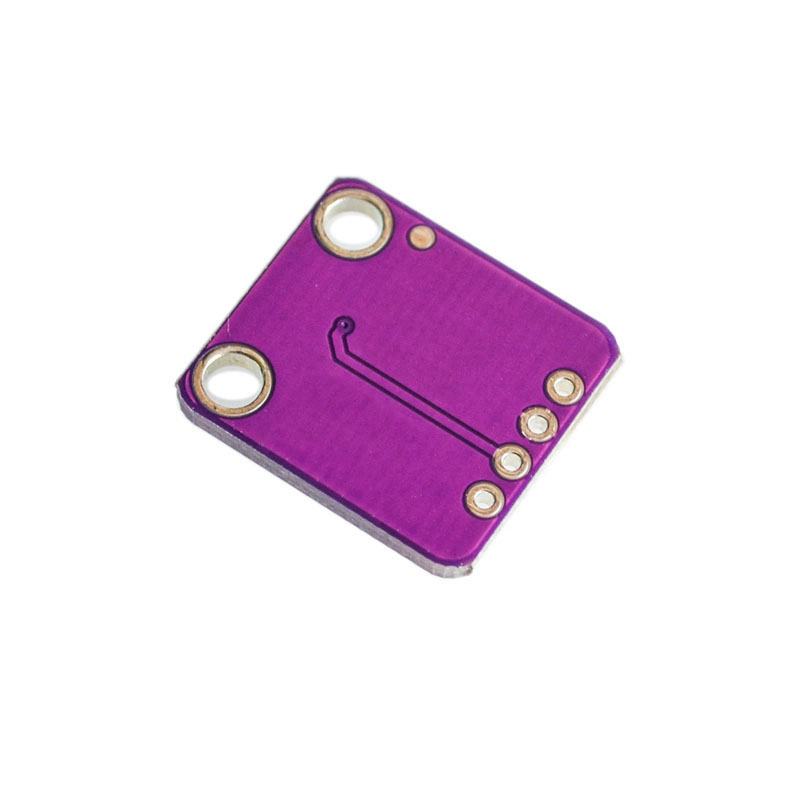

● Module size: 18.5mm * 16.4mm * 3.45mm, with two M3 mounting holes
Package Includes:
1 AEDR-8300 encoder reflective 2-channel optical encoder
