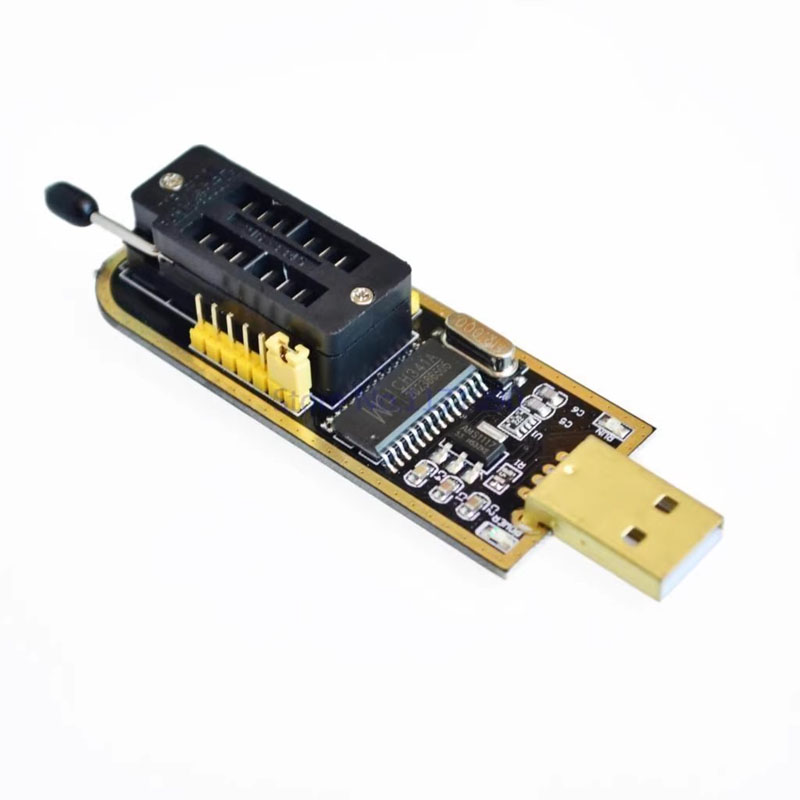

Tuhao Jin CH341B Programmer USB Motherboard Routing LCD BIOS/FLASH/24/25 BurnerItem NO.: Local Gold CH341A Programmer
-
Customized Requirements
- Quantity
-
-
- Product Name: Tuhao Jin CH341B Programmer USB Motherboard Routing LCD BIOS/FLASH/24/25 Burner
- Item NO.: Local Gold CH341A Programmer
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Development Board
- Tag: CH341B Programmer
- Creation Time: 2024-04-18
Local Gold CH341B Programmer
Product characteristics:
Adopting FT232BL chip with external EEPRON (93C46)
Support for Windows 10
Supports three power supply modes: 5V external power supply; 3.3V external power supply; External power supply (3.3V-5V required)
With 3 LEDs: TXD LED, RXD LED, POWER LED
GND, RXD, TXD, 3V3, 5V: using curved needle leads
Other functions PIN: reserved pad CTS, RTS
Instructions for use: (Taking connecting to MCU as an example)
GND: Connected to GND
RXD: Connected to MCU. TX (Signal flow direction: MCU. TX>>FT232>>PC.RX)
TXD: Connected to MCU. RX (Signal flow direction: MCU. RX<<FT232<<PC. TX)
3V3/5V: Output 3.3V or 5V (module powered by USB, jumper cap must be jumped to 3.3V or 5V)
RTS: Connected to MCU. CTS (Signal flow direction: MCU. CTS<<FT232<<PC.RTS)
CTS: Connected to MCU. RTS (Signal flow direction: MCU. RTS>>FT232>>PC. CTS)
