GY-AMG8833 IR 8x8 Infrared Thermal Imager Array Temperature Measurement Thermal Imaging Sensor ModuleItem NO.: GY- AMG8833
-
Customized Requirements
- Quantity
-
-
- Product Name: GY-AMG8833 IR 8x8 Infrared Thermal Imager Array Temperature Measurement Thermal Imaging Sensor Module
- Item NO.: GY- AMG8833
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: GY-AMG8833 , IR 8x8 Infrared Thermal Imager , Thermal Imaging Sensor Module
- Creation Time: 2024-04-15

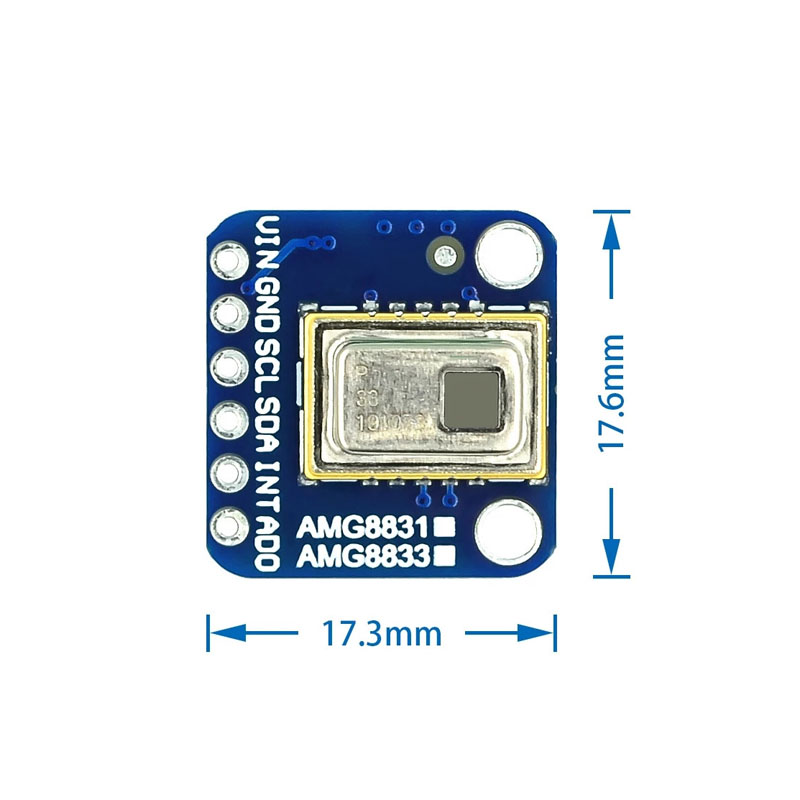

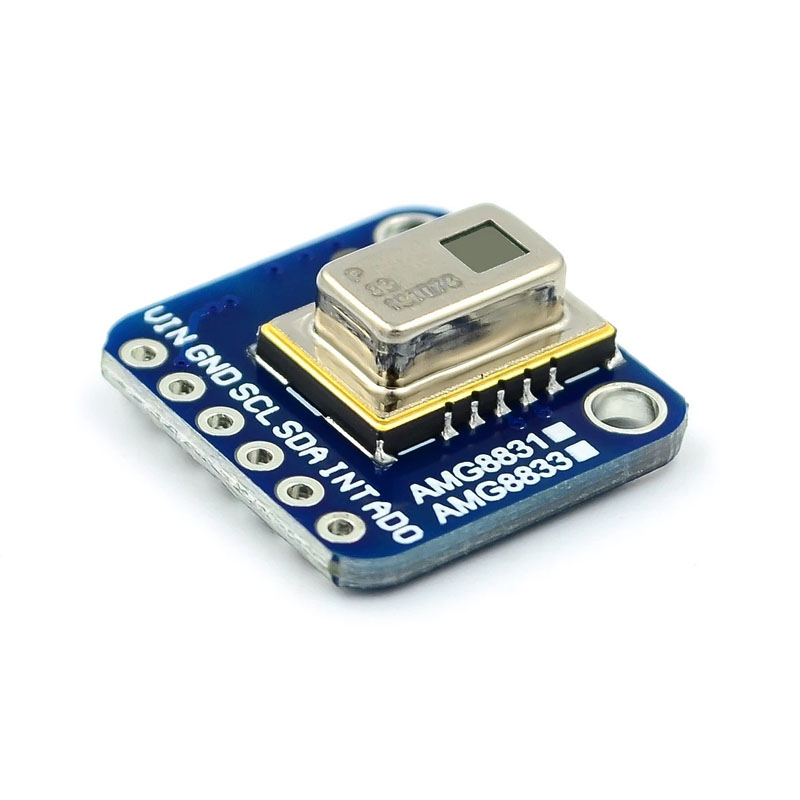

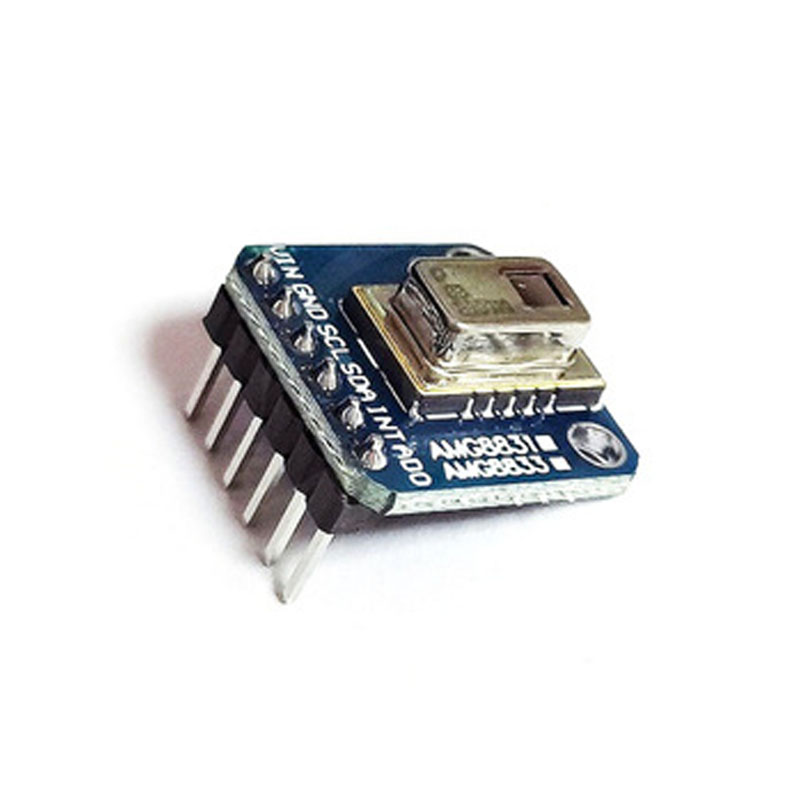

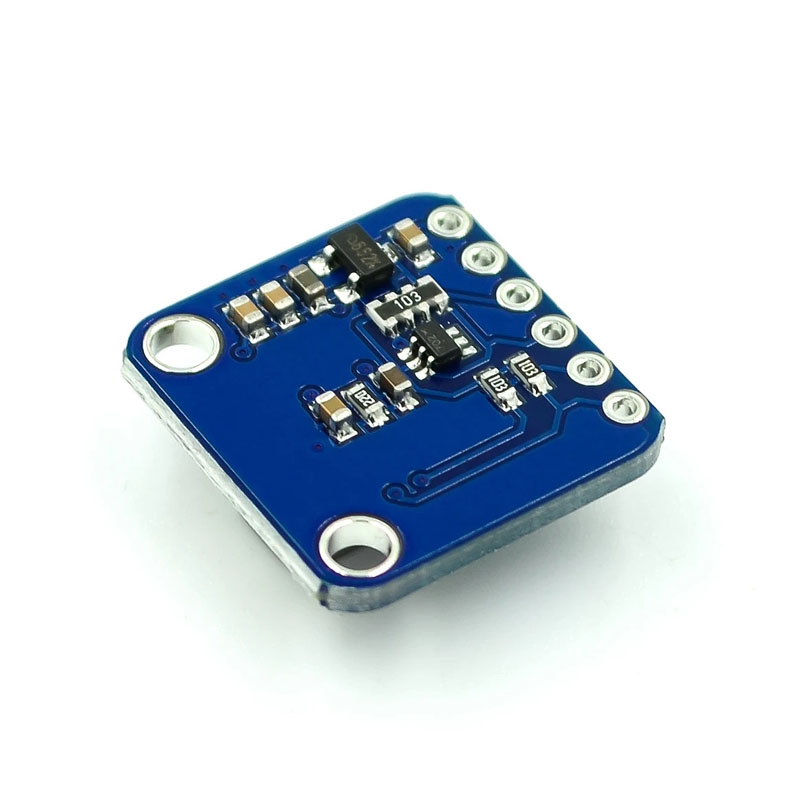

GY-AMG8833 IR 8x8 Infrared Thermal Imager
Product Information:
Power supply: 3-5 v
The AMG8833 infrared thermal imager sensor is an 8x8 infrared thermal sensor array. When connected to your microcontroller (or Raspberry Pi), it will return a set of 64 individual infrared temperature readings via I2C. This is like those fancy thermal imagers, but it is compact and simple, and easy to integrate. The AMG8833 is Panasonic's next generation 8x8 thermal infrared sensor and provides higher performance than the previous AMG8831. The sensor only supports I2C and has a configurable interrupt pin that can be triggered when any single pixel is above or below the threshold you set.
The AMG8833 infrared thermal imager sensor has a temperature measurement range of 0 ° C to 80 ° C (32 ° F to 176 ° F),
The accuracy is+- 2.5 ° C (4.5 ° F). It can detect humans from a distance of up to 7 meters (23) feet. The large frame rate is 10Hz, making it ideal for creating your own body detector or mini thermal imager. We use this breakthrough code on Arduino or compatible (sensors communicate through I2C) or Raspberry Pi using Python. On Pi, with the help of image processing from the SciPython library, we can insert an 8x8 grid and obtain some very good results!
