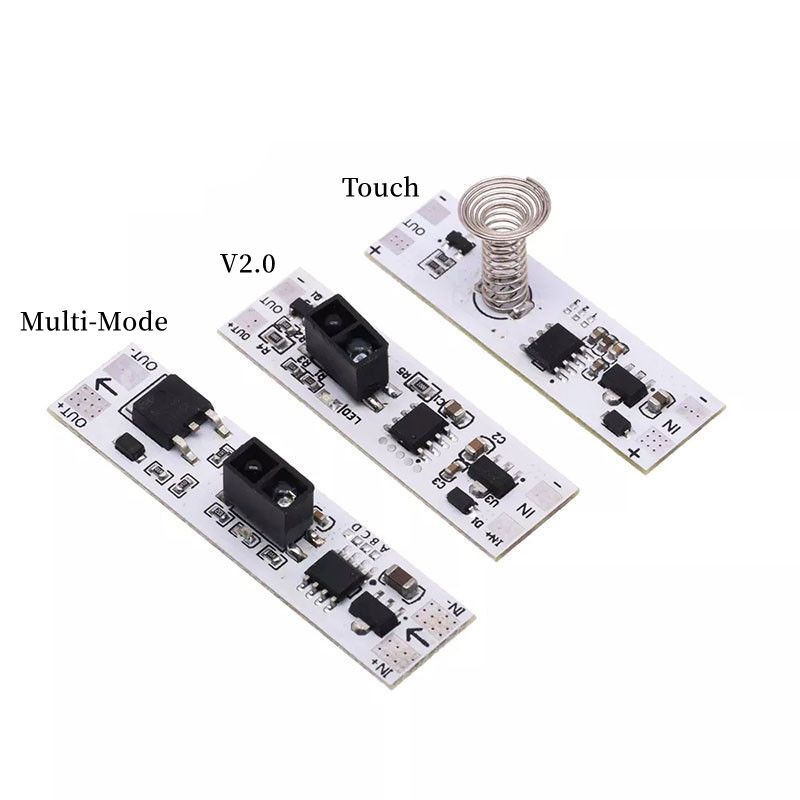

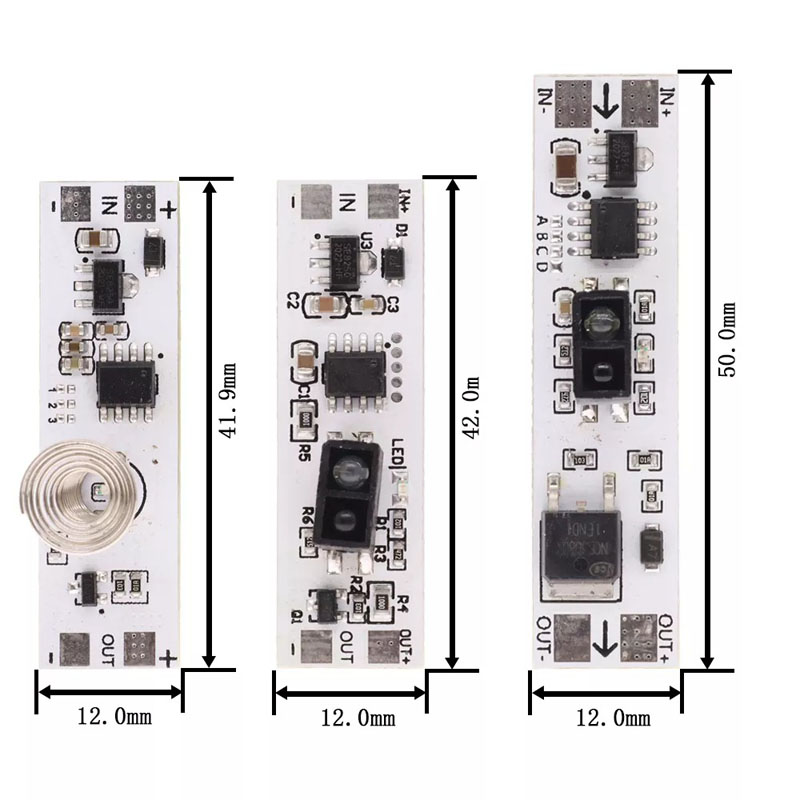

Hand Sweep and Wave Induction Switch Module Touch Switch 5V-12V-24V 72W Wardrobe Shoe Cabinet LED LightItem NO.: XKGK4010A

Sweep Hands Induction Switch Module

Touch Induction Switch Module

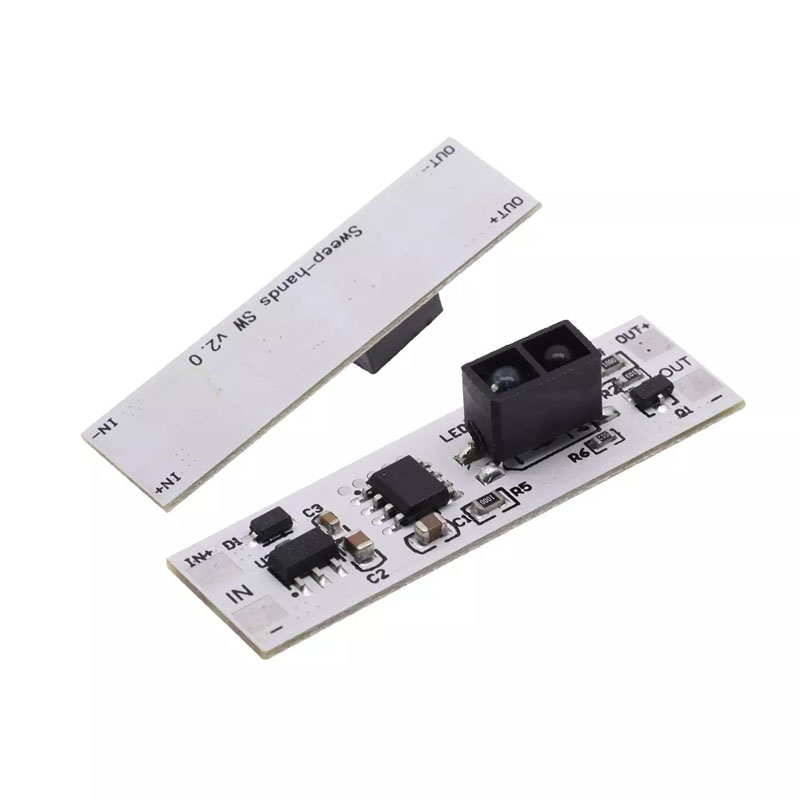

V2.0 Product Parameters:

● Product name: Sweep Hands Induction Switch Module V2.0

● Output mode: switch+indicator light

● Delay time: on/off without scanning

● Scope of application: DC constant voltage

● Standby current: 10-15mA

● Load power: ≤ 72W

● Input voltage: DC5-24V

● Output voltage:=input voltage

● Sensing distance: 30-80mm

● Sensing principle: infrared distance

● Load current: resistance 3A

● Warm prompt: the controller is only used for the switch control of LED lights, not for live inductive loads (such as inductor, motor, relay, etc.).

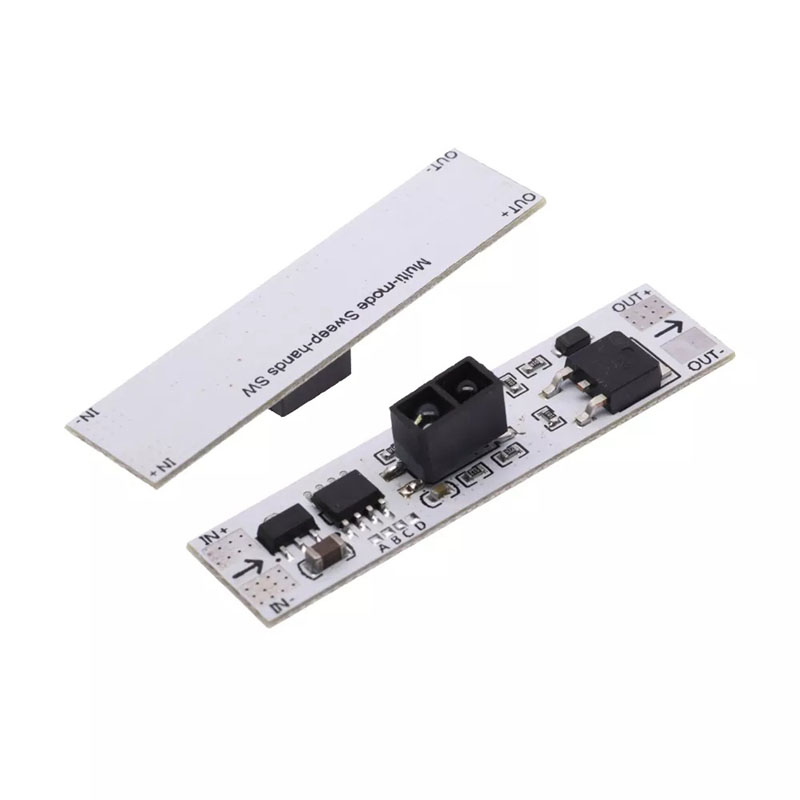

Multi-Mode Product Parameters:

● Product name: Multi-Mode Sweep Hands SW

● Induction mode: 1 out of 6 (slow on/off/on/off/off, on/off, on/off, on/off, off/on+dimming/on/off+dimming)

● Load current: resistive 5A

● Load power: 120W (MAX)

● Standby current: ≤ 10mA

● Sensing principle: infrared distance

● Sensing distance: 30-80mm

● Input voltage: DC5-24V

● Output voltage:=input voltage

● Output mode: switch+indicator light

● Scope of application: DC constant voltage

● Delay time: none

Function Mode Selection:

1: A B C D: slow on and off (default)

2: A-B C D: on and off

3: A B C-D: release off, cover on

4: A-B C-D: release on, cover off

5: A-B-C D: on and off+dimming

6: A B-C D: slow light on and off+dimming

Note: 1. - indicates welding between two points. 2. Dimming process: After the LED is turned on, the hand does not leave, and enters the dimming mode after 2S. In the dimming mode, the hand leaves (returns within 2S), and the addition and subtraction can be switched. After the dimming is completed, the hand leaves for more than 2S, and the dimming parameters can be saved. At this time, the manual scanning visible dimming takes effect.

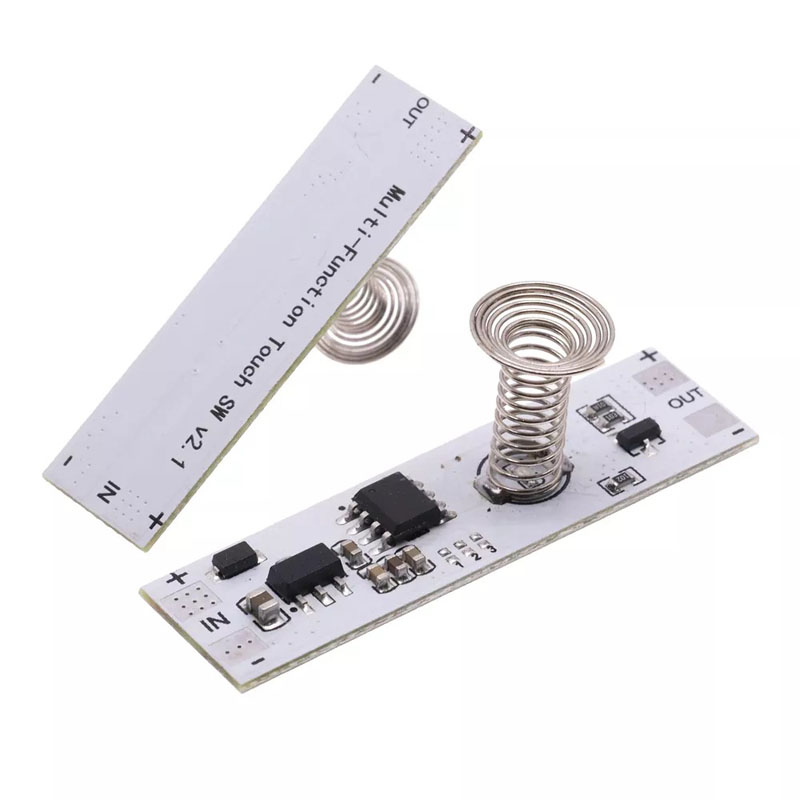

Touch Module Product Parameters:

● Product name: Touch Induction Switch Module

● Input voltage: DC5-24V (12V recommended)

● Output voltage:=input voltage

● Load power: 72W (MAX)

● Load current: resistive 3A (MAX)

● Standby current: 10-15mA

● Standby power consumption: about 0.01W

● Working temperature: - 25 ℃~85 ℃

● Output frequency: 32KHZ

Function Mode Selection:

1:1 1 1: no brightness memory, no brightness buffer, stepless dimming

2:1 1 0: brightness memory, no brightness buffer, stepless dimming

3:1 0 1: sequence high ->medium ->low ->cycle out, three-stage dimming

4:1 0 0: sequence low ->middle ->high ->cycle out, three-stage dimming

5:0 1 1: The output is low and effective, and it is usually high, and the synchronization button

6:0 0 1: The output is high and effective, and it is usually low level, and the synchronization button

7:0 1 0: The output is low and effective, usually high, and the switch is self-locking

8:00 00: The output is high and effective, usually low, and the switch is self-locking

Note: 1. The default value of the suspended pad is high level 1, and that of the short-circuited pad is low level 0. 2. Brightness memory does not mean power-off memory. It means that after the module is powered on, the touch switch process has brightness memory. Once the module is powered off, the brightness will return to the default state.

Scope Of Application:

Wardrobe lamp, display cabinet lamp, LED hard light strip, light strip, aluminum slot lamp, touch eye protection table lamp, etc. (Applicable materials of panel: insulating materials, such as plexiglass, ordinary glass, tempered glass, plastic, wood, paper ceramics, stone, etc.)
