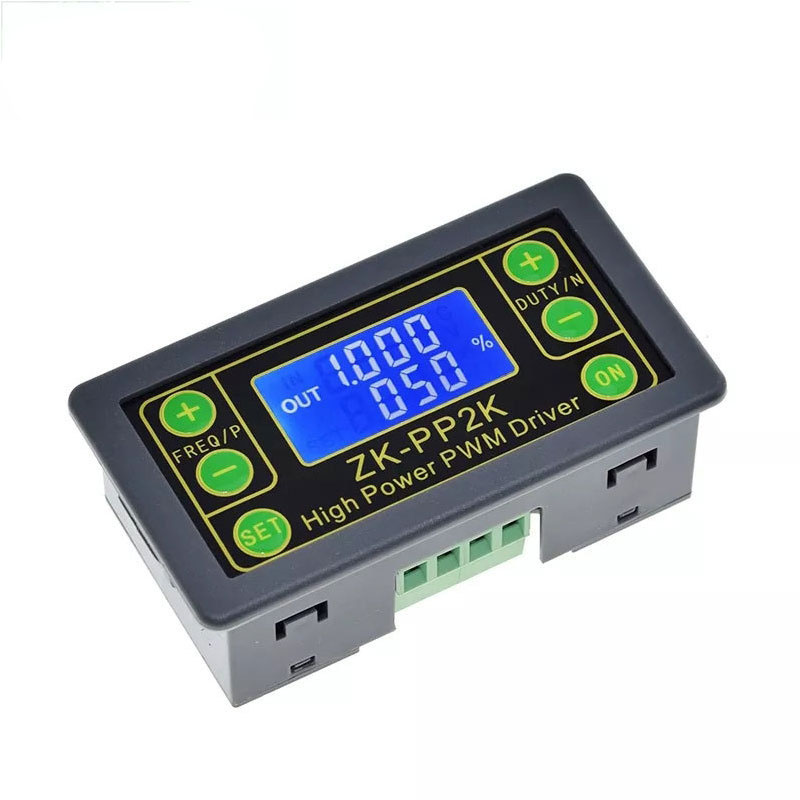

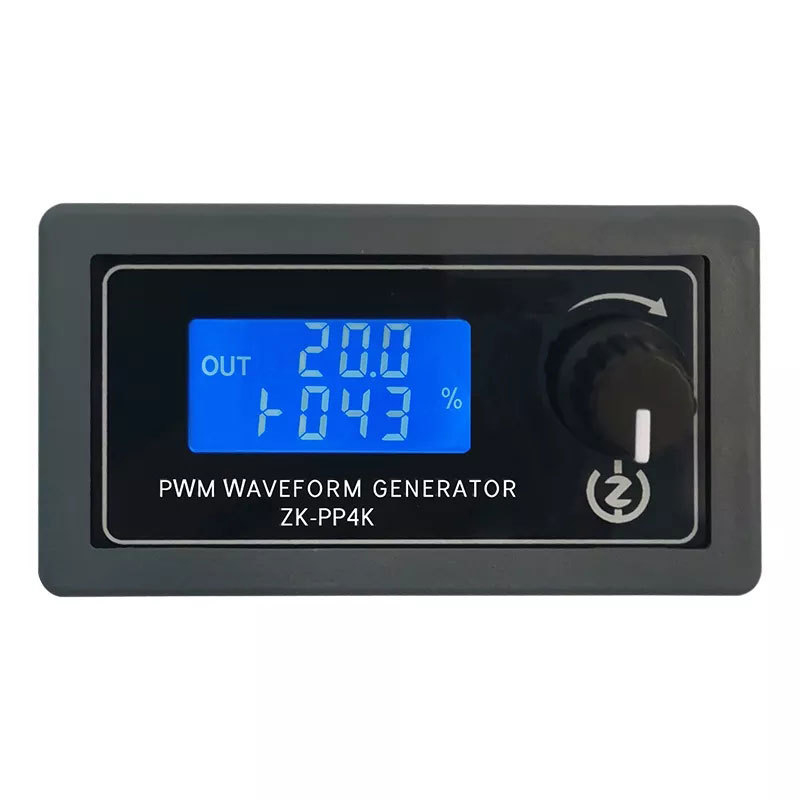

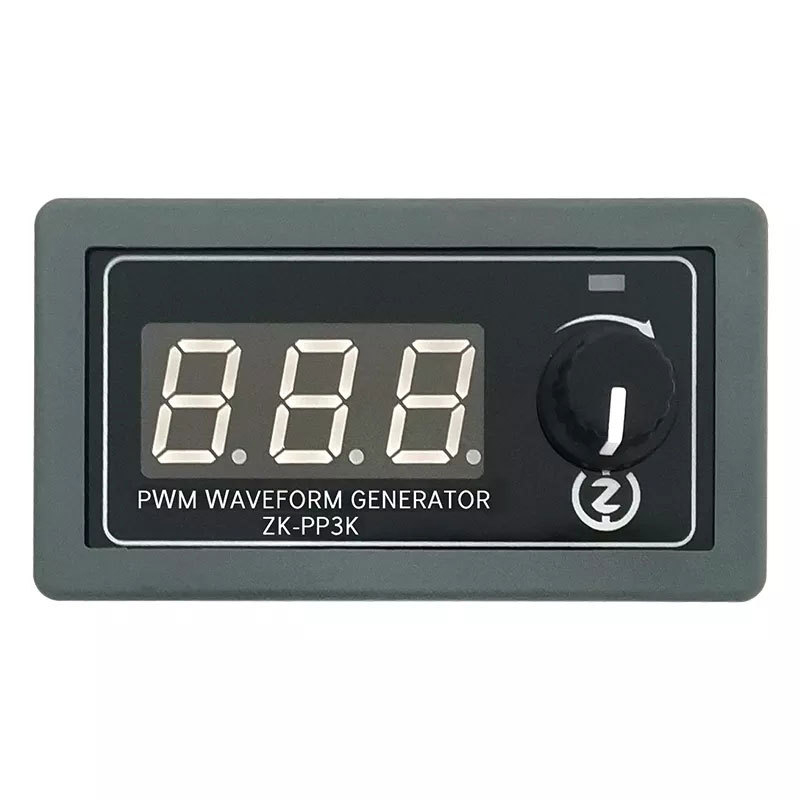

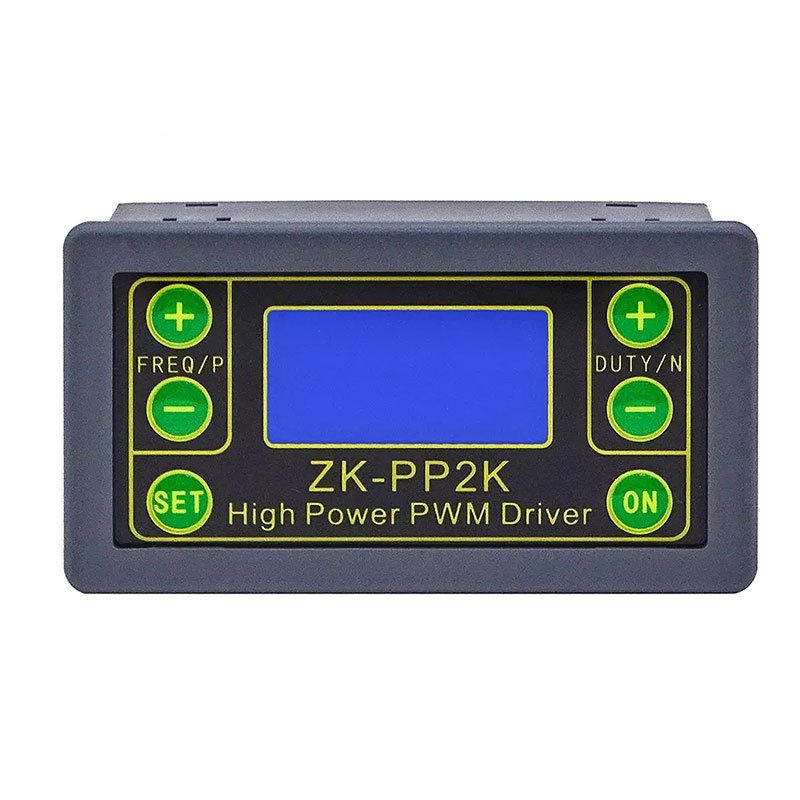

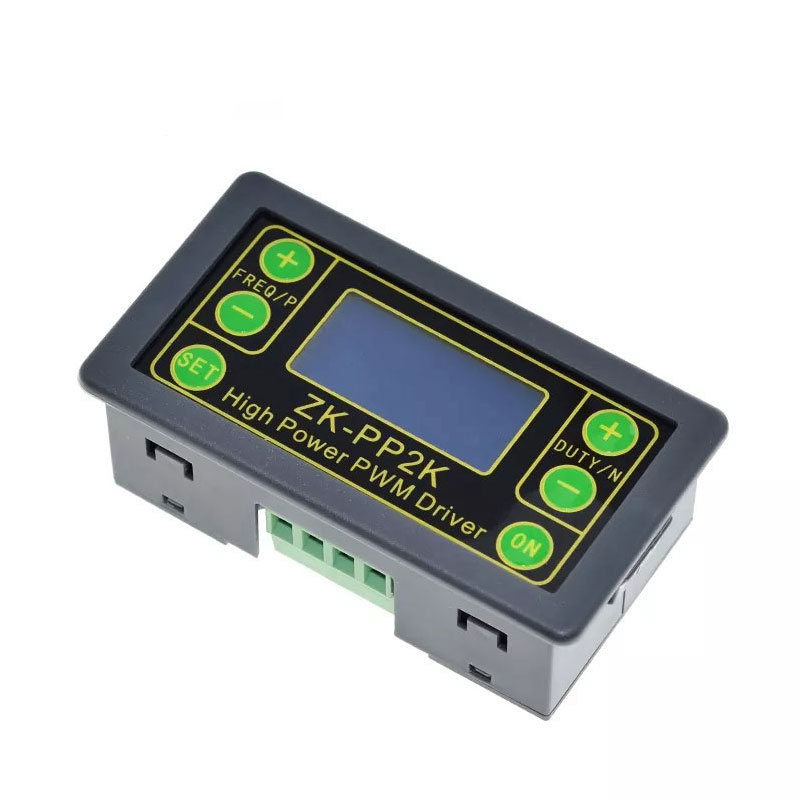

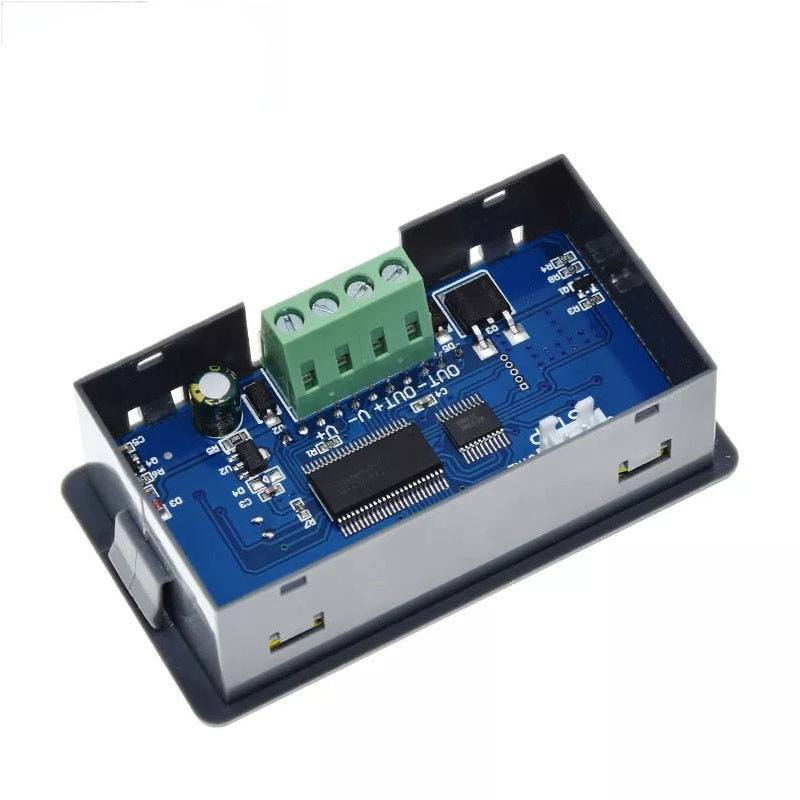

High Power PWM Motor Speed Control Solenoid Valve Pulse Number Frequency Duty Cycle Adjustable Cycle Delay PP1K PP2K PP3K PP4KItem NO.: ZK-PP

PWM Dimming Motor Speed Control

Multiple Practical Scenarios!!!

1. LED brightness adjustment, adjustable frequency and duty cycle

2. Motor speed adjustment, frequency and duty cycle adjustable

3. Drive the solenoid valve to engage and release, automatically cycle, delay output, and the number of cycles (or infinite cycles) can be set.

4. Control the continuity and disconnection of equipment, conduct switch fatigue tests, voltage drop tests, and other tests to verify the reliability of customer equipment.

5. Delay the start of the load, and the delay time can be set. After the delay, it will continue to conduct or work intermittently.

Product Highlights:

1. Can directly drive loads such as LED, motor, solenoid valve, etc

2. There are two modes to choose from:

PWM mode - frequency (continuous), duty cycle. Note that in this mode, the number of switches cannot be set, and the cycle of opening and closing is continuous;

PULSE pulse mode - positive pulse width time, negative pulse width time, power on delay start time, and adjustable switching frequency.

3. With start stop button, it can control start and stop

4. Wide voltage input 3.3-30V, 5.08mm terminal wiring

Technical Parameters:

1. Working voltage: 3.3-30V (note that the positive and negative poles should not be reversed, otherwise they may burn out)

2. Frequency range: 1Hz~150KHz, with an accuracy of about 2%. The general choice for motor speed regulation is 20KHZ

3. Duty cycle range: 0-100%, 1% step

4. Number of pulses: 1-9999, or infinity (displaying '----' to represent infinity)

5. Delay output time: 0.000s-9999s, with a minimum setting of 1ms

6. Positive and negative pulse width length: 0.000s-9999s, with a minimum setting of 1ms

7. Output carrying capacity: less than 8A (MOS switch)

8. Output amplitude: The amplitude is equal to the power supply voltage (OUT+and V+modules are directly connected internally)

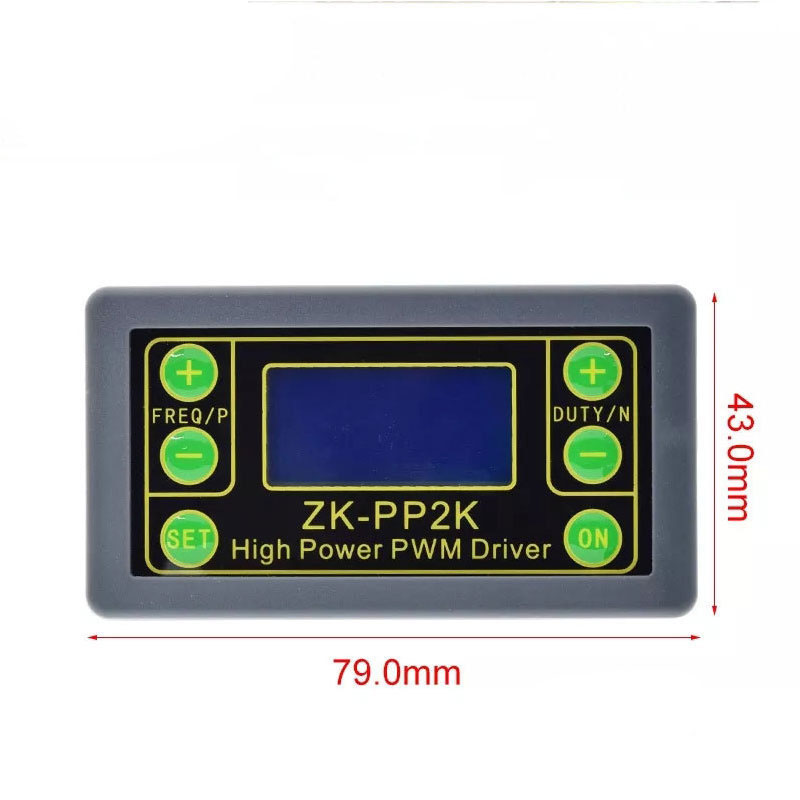

9. Product size: 79mm * 43mm * 30mm

10. Product weight: 42g

11. Packaging form: Antistatic bag
