Customized Requirements
- Quantity
-
-
- Product Name: MCU FT232H High-speed Multifunctional USB to JTAG UART/FIFO SPI/I2C Module
- Item NO.: MCU FT232H
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: MCU FT232H , High-speed Multifunctional , USB to JTAG UART , FIFO SPI , I2C Module
- Creation Time: 2024-04-15

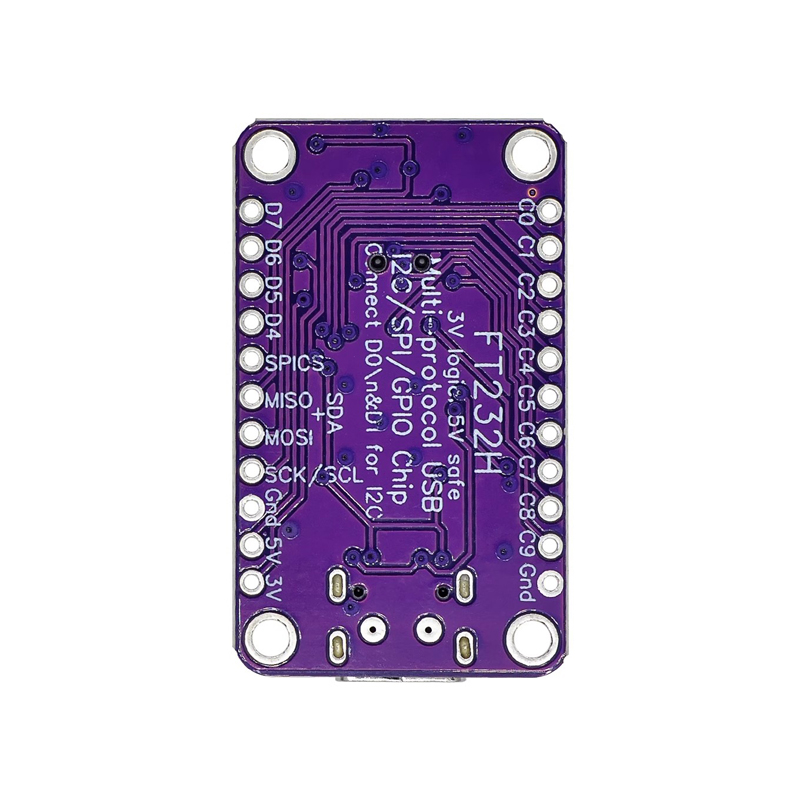

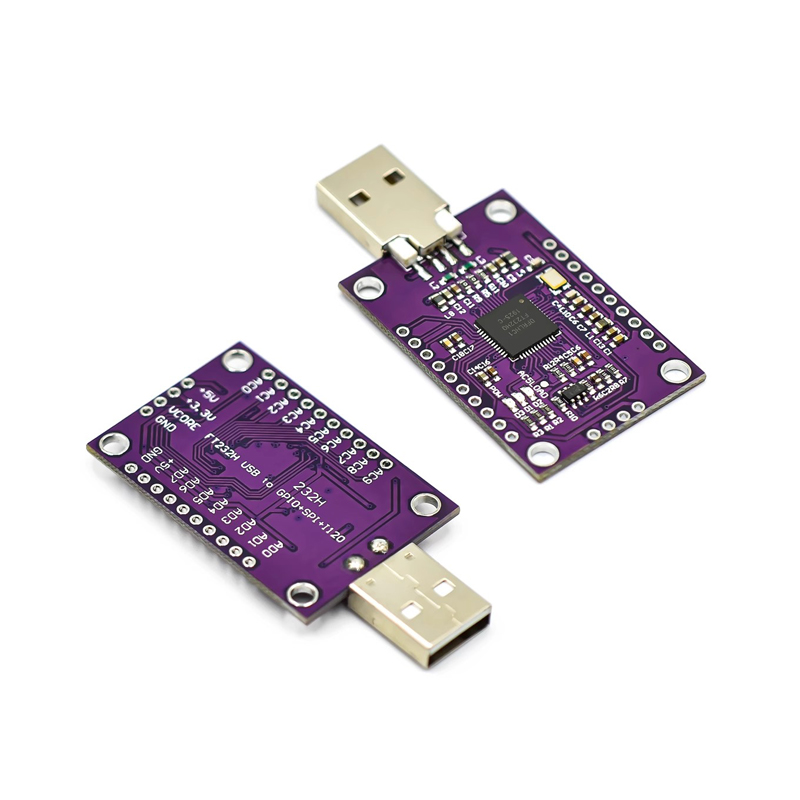

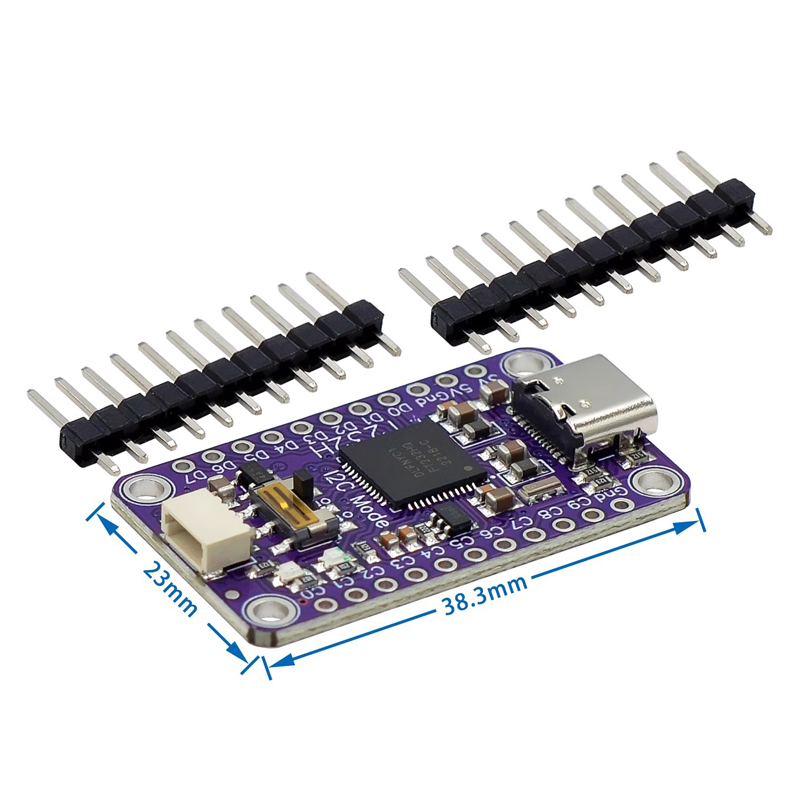

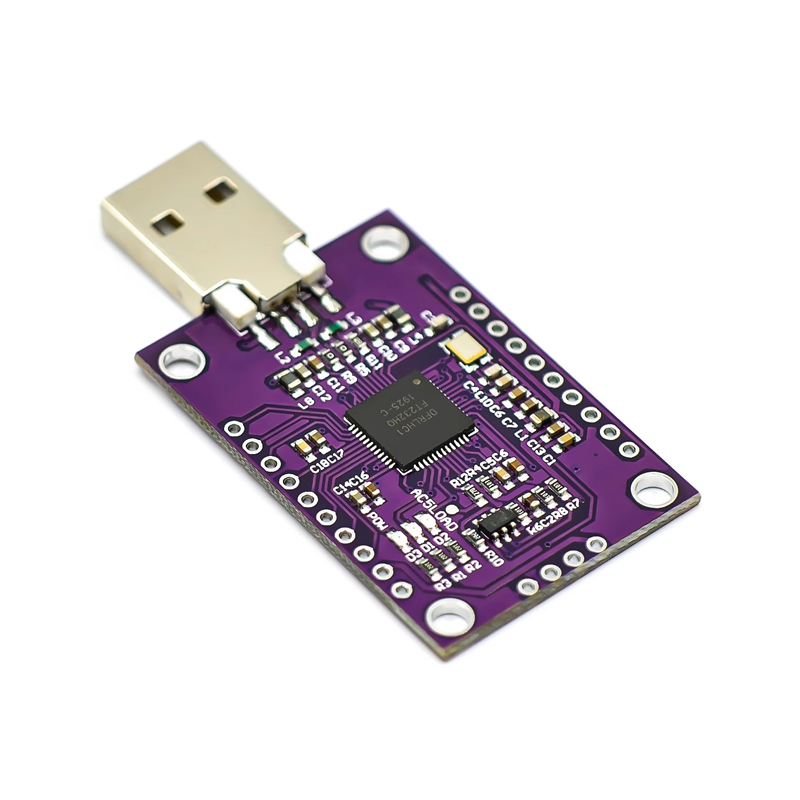

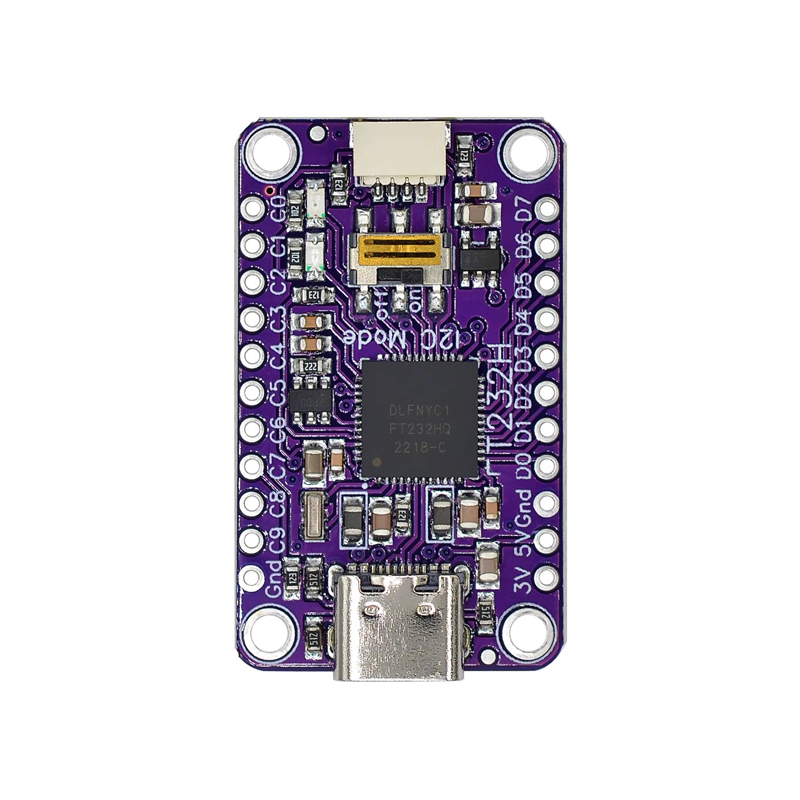

MCU FT232H High-speed Multifunctional
Typical Applications
? Single chip USB to UART (RS232, RS422 or RS485)
? USB to FIFO
? USB to FT1248
? USB to JTAG
? USB to SPI
? USB to I2C
? USB to Bit-Bang
? USB to Fast Serial Interface
? USB to CPU target interface (as memory)
CJMCU-FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC. It has the capability of being configured in a variety of industry standard serial or parallel interfaces. The FT232H has the following advanced features:
? Single channel USB to serial / parallel ports with a variety of configurations.
? Entire USB protocol handled on the chip. No USB specific firmware programming required.
? USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
? Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design.
? UART transfer data rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
? USB to asynchronous 245 FIFO mode for transfer data rate up to 8 Mbyte/Sec.
? USB to synchronous 245 parallel FIFO mode for transfers upto 40 Mbytes/Sec
? Supports a proprietary half duplex FT1248 interface with a configurable width, bi-directional data bus (1, 2, 4 or 8 bits wide).
? CPU-style FIFO interface mode simplifies CPU interface design.
? Fast serial interface option.
? FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
? Adjustable receive buffer timeout.
