Customized Requirements
- Quantity
-
-

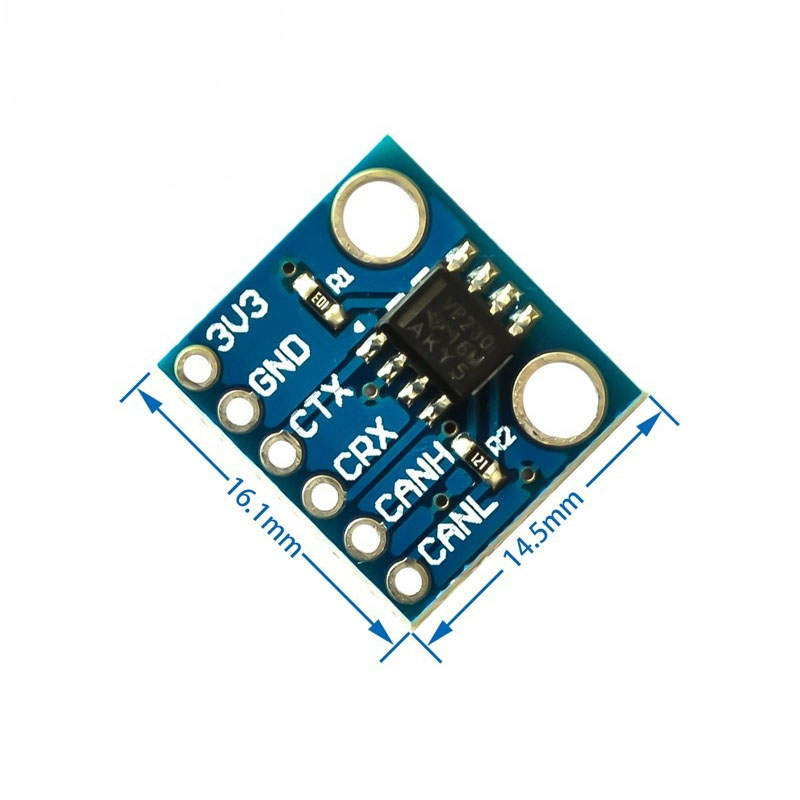

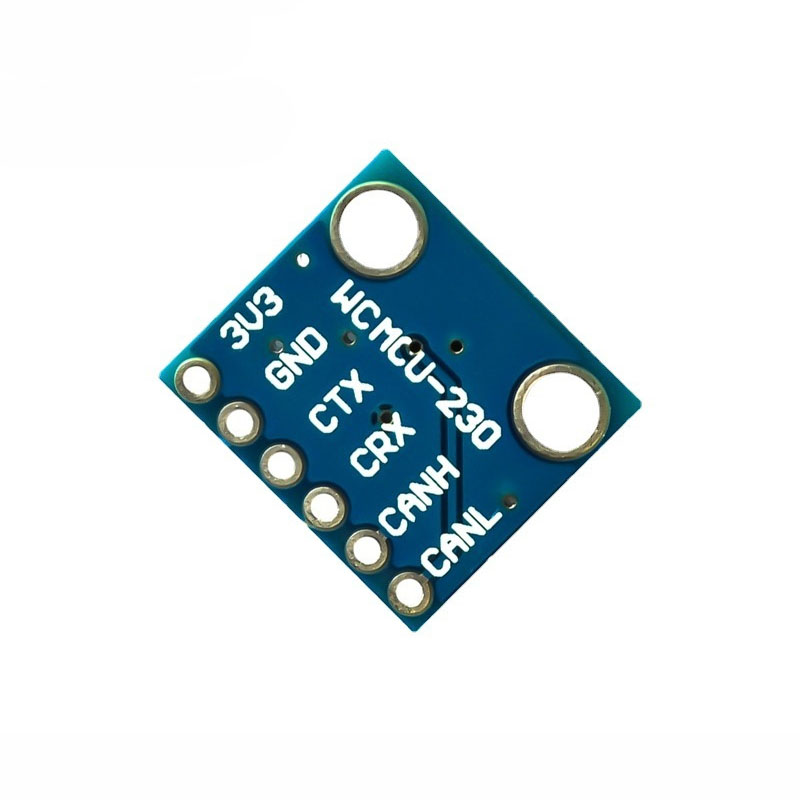

- Product Name: MCU230 Bus Transceiver SN65HVD230 CAN Communication Module Development Board
- Item NO.: MCU230
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: MCU230 , Bus Transceiver , SN65HVD230 , CAN Communication Module
- Creation Time: 2024-04-15
MCU230 CAN Bus Transceiver SN65HVD230
Main Features And Pin Functions:
SN65HVD230 can be used in higher interference environments. The device has good transceiver capabilities at different rates, and its main characteristics are as follows:
● Fully compatible with ISO11898 standard;
● High input impedance, allowing 120 nodes;
● Low current wait mode, typical current is 370 μ A；
● Signal transmission rate can reach 1Mb/s;
● Thermal protection and open circuit failure protection functions;
● It has the function of resisting instantaneous interference and protecting the bus;
● Slope control to reduce radio frequency interference (RFI);
● Differential receiver with wide range of common mode interference and electromagnetic interference (EMI) resistance.
Operating Mode And Control Logic:
The SN65HVD230 has three different operating modes: high speed, slope, and wait. Its operating mode control can be achieved through the Rs control pin. Figure 2 is a typical application diagram of SN65HVD230 in a CAN bus system. As can be seen from the figure, the output pin Tx of the CAN controller is connected to the data input terminal D of the SN65HVD230, which can transmit the data sent by this CAN node to the CAN network; The receiving pin Rx of the CAN controller is connected to the data output terminal R of the SN65HVD230 for receiving data. The SN65HVD230 mode selection port Rs is connected through a jumper and a slope resistor grounded at one end. Three operating modes can be selected through hardware, with a slope resistor of 0 to 100k Ω as a potentiometer.
