New Human Infrared Thermoluminescence Sensor Module With 1.5A Amplification Automatic Lamp

New Human Infrared Thermoluminescence Sensor Module With 1.5A Amplification Automatic LampItem NO.: YS-PIR

US$ 4.86
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Estimate Shipping Cost
Add to Cart
Buy Now
Adding to cart succeed
New Human Infrared Thermoluminescence Sensor Module With 1.5A Amplification Automatic Lamp
color:red,size:xxl
Subtotal: US$ 0
View My Cart
Checkout
Share:

Copy and share this link on social network or send it to your friends

Copy
Detail

  • New Human Infrared Thermoluminescence Sensor Module



    Product Information:

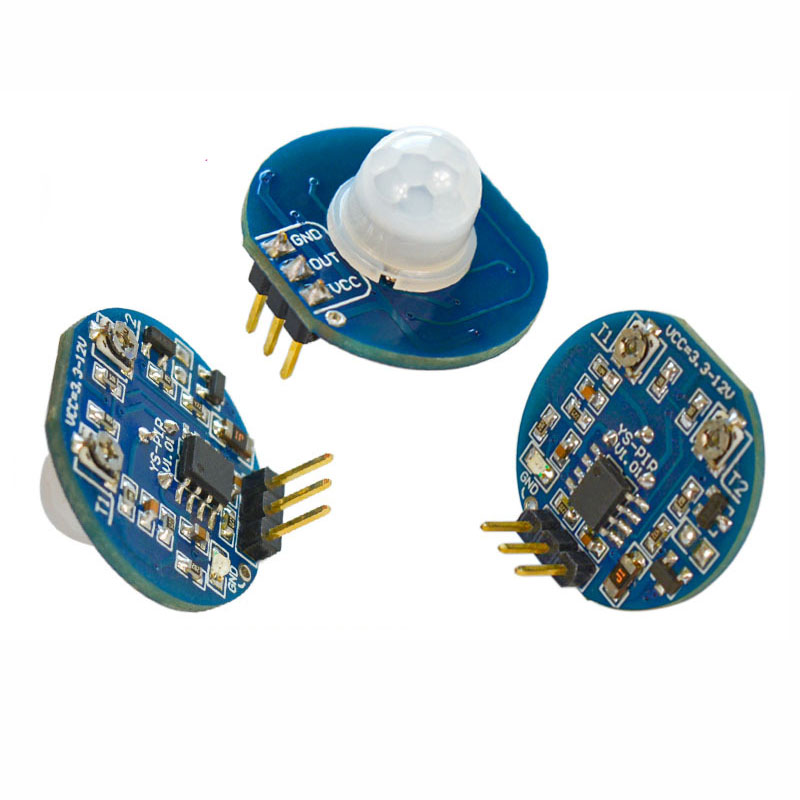

    T1: Sensitivity knob, sensing sensitivity adjustment, equivalent to sensing distance, 50-400cm, clockwise to decrease sensing sensitivity, counterclockwise to increase sensing sensitivity.



    T2: The time knob for outputting voltage from the OUT port is adjustable for 2-170 seconds, increasing the output time clockwise and decreasing the output time counterclockwise.

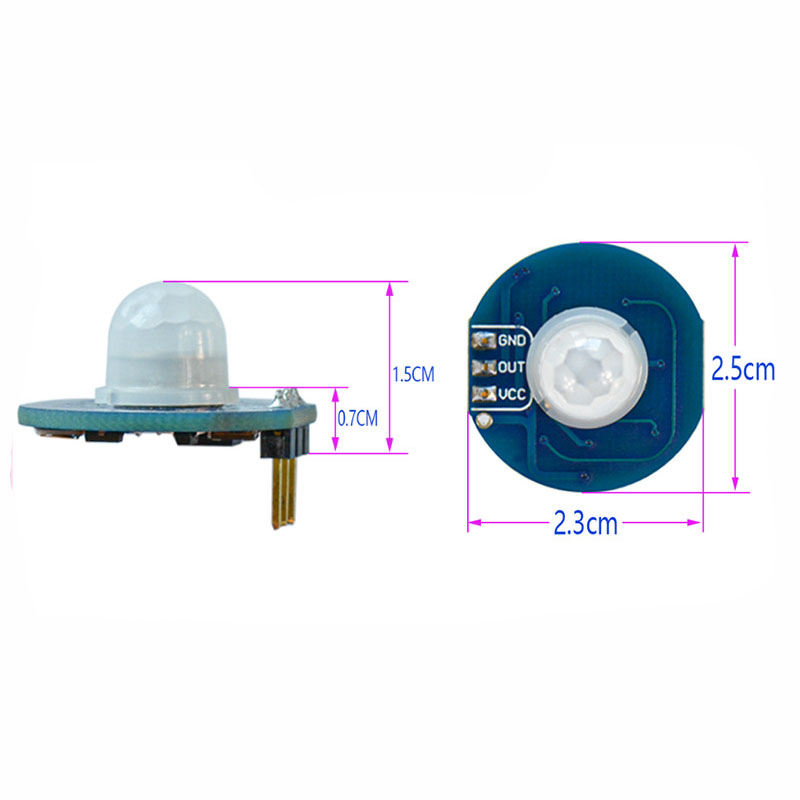

    ● Product model: YS PIR

    ● Product name: Human body heat release sensing module

    ● Power supply voltage: 3.3-12V

    ● Power supply current: ≥ load current (maximum 1.5A)

    ● Standby current: 25UA in standby; After induction, the power consumption when connected to the load in parallel with OUT is: 4MA+load current

    ● Output port current: ≤ 1.5A (can drive relays and light strips (12V-18W))

    ● Output port voltage: approximately equal to input voltage

    ● Model of sensing head: KP500BP

    ● Sensing angle: less than 100 ° (cone angle)

    ● Sensing distance: 50-400cm (sensitivity)

    ● Working mode: Jog mode, with adjustable time of 2-170 seconds.

    ● Working temperature: - 20 ℃ to 60 ℃



    Application Scenario:



    Infrared induction lamp, human body induction switch, microcontroller application, etc



    Be Careful:



    After powering on, actively output the high level for about 12 seconds, and then enter the standby state. After sensing the human body, output again.
