Customized Requirements
- Quantity
-
-
- Product Name: TOF050C 200C 400C Laser Ranging Sensor Module ToF Time Of Flight Distance IIC Output
- Item NO.: TOF3
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Laser Ranging Sensor Module , TOF050C 200C 400C
- Creation Time: 2024-04-15

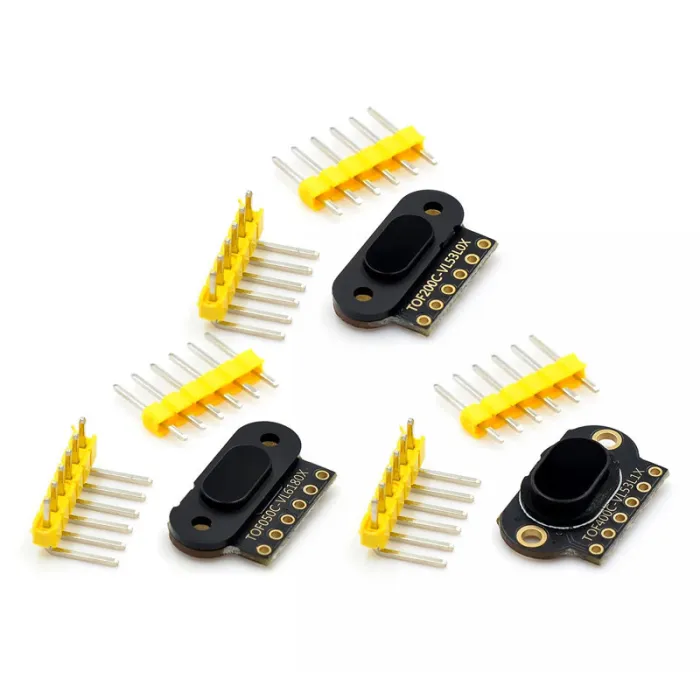

TOF050C 200C 400C Laser Ranging Sensor Module
Product Parameters:

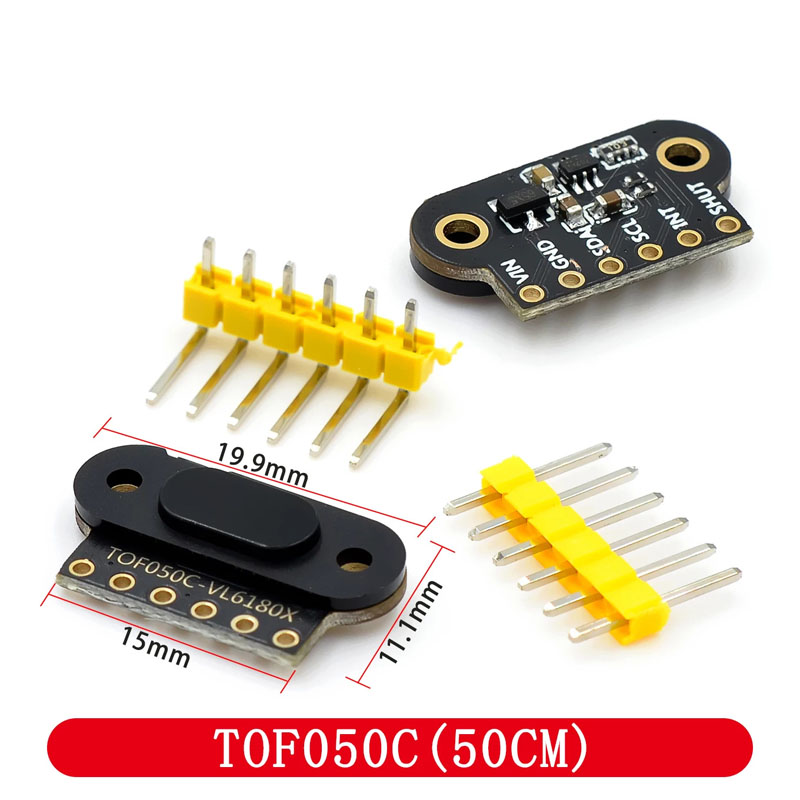

● Model: TOF050C
● Distance measuring chip: VL6180
● Measuring distance: 50cm (Max)
● Measurement blind area: 0-2cm
● Infrared emission mechanism: 850 nm
● FOV field of view angle: 25 degrees
● Communication mode: IIC mode
● Working voltage: 3.0V-5V DC
● Working current: 40mA (Max)
● Working temperature: - 20 ℃ - 70 ℃
● Storage temperature: - 20 ℃ - 80 ℃

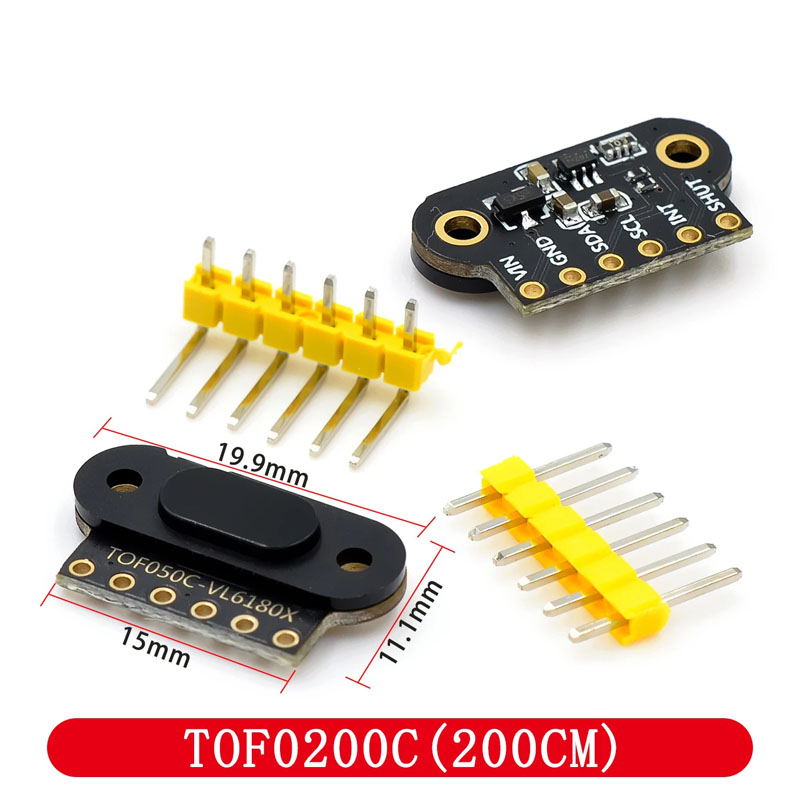

● Model: TOF200C
● Distance measuring chip: VL53L0X
● Measuring distance: 2m (Max)
● Measurement blind area: 0-3cm
● Infrared emission mechanism: 940nm
● FOV field of view angle: 25 degrees
● Communication mode: IIC mode
● Working voltage: 3.0V-5V DC
● Working current: 40mA (Max)
● Working temperature: - 20 ℃ - 70 ℃
● Storage temperature: - 20 ℃ - 80 ℃

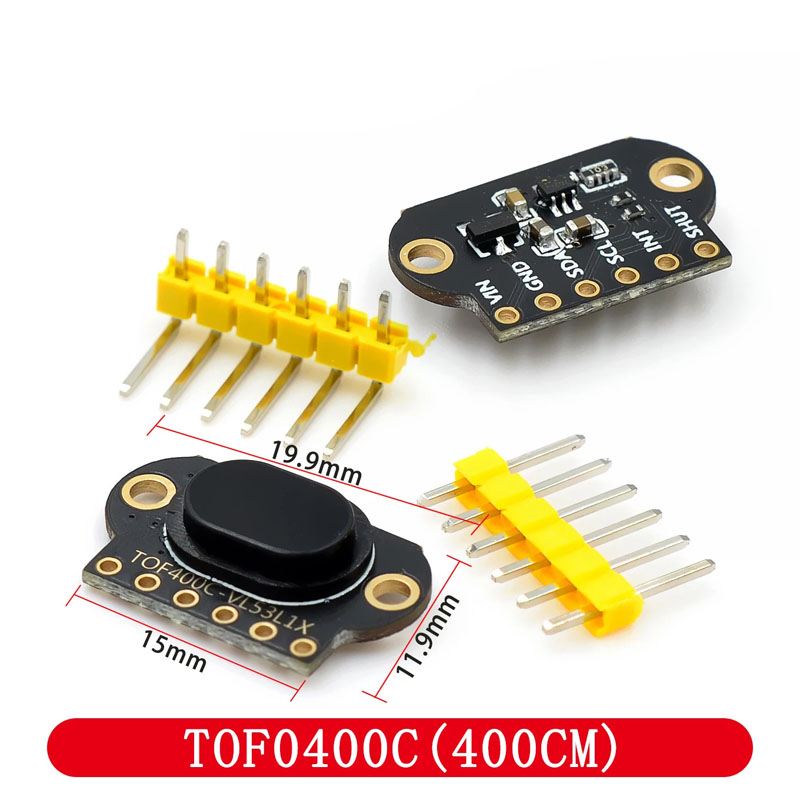

● Model: TOF400C
● Distance measuring chip: VL53L1X
● Measuring distance: 4m (Max)
● Measurement blind area: 0-4cm
● Infrared emission mechanism: 940nm
● FOV field of view angle: 27 degrees
● Communication mode: IIC mode
● Working voltage: 3.0V-5V DC
● Working current: 40mA (Max)
● Working temperature: - 20 ℃ - 70 ℃
● Storage temperature: - 20 ℃ - 80 ℃
