PWM DC Motor Speed Regulator 9-60V/12A/500W Motor Fan Controller Encoder Dimming Speed Regulation ZK-BMGItem NO.: ZK-BMG

ZK-BMG PWM DC Motor Speed Regulator

Product Highlights:

1. Adopting two original high-voltage low internal resistance MOS transistors and a front stage driver, the performance is more stable and supports high voltage and high power.

2. The duty cycle, upper and lower limits of duty cycle, and operating frequency can be set, making it convenient for customers to operate and use according to the working characteristics of their own motors.

3. The digital encoder knob adjusts the motor speed, which is more accurate, consistent and free from drift than the ordinary Potentiometer.

4. Soft start function of the motor, which slowly increases the current when starting the motor without any impact current, effectively protecting the motor and extending its service life

5. Equipped with a start stop button and can be controlled by external switches to meet various control needs of customers (Note that external switches should use a self reset button or button, press once to open and then press again to close; it cannot achieve the function of continuously closing output to open and not closing output to close.)

6. Equipped with a standard 5135 instrument casing and a rear cover for easy installation by customers.

Technical Parameters:

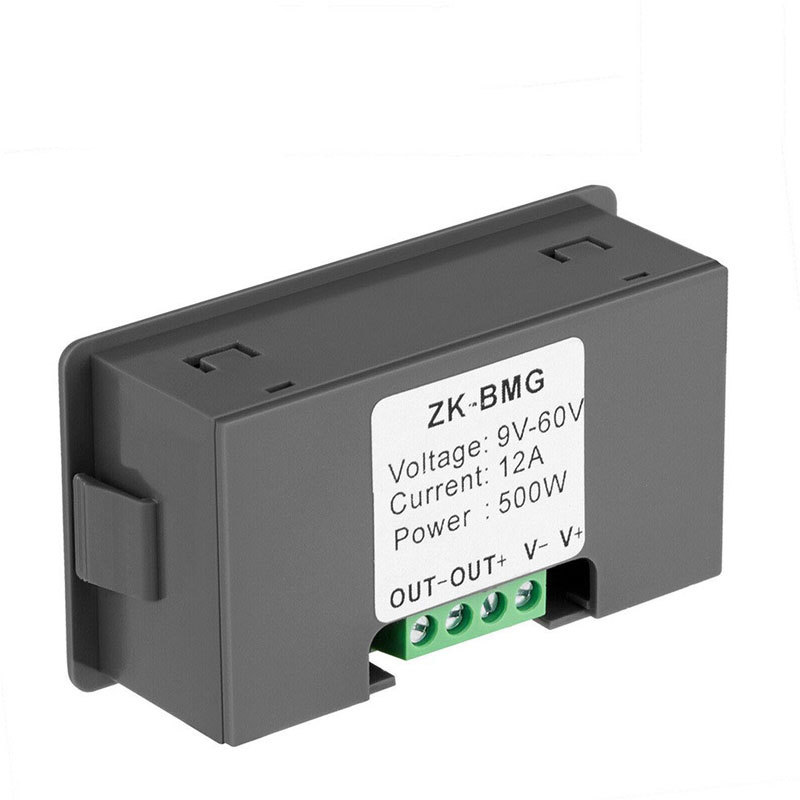

1. Working voltage: DC9V~60V, input anti reverse protection

2. Rated current: 12A High current 20A

3. High power: 500W

4. Working frequency: 1KHz~99KHz adjustable, 1KHz step by step, default frequency of 20KHz, accuracy of about 1%

5. Duty cycle: 0-, 1% step

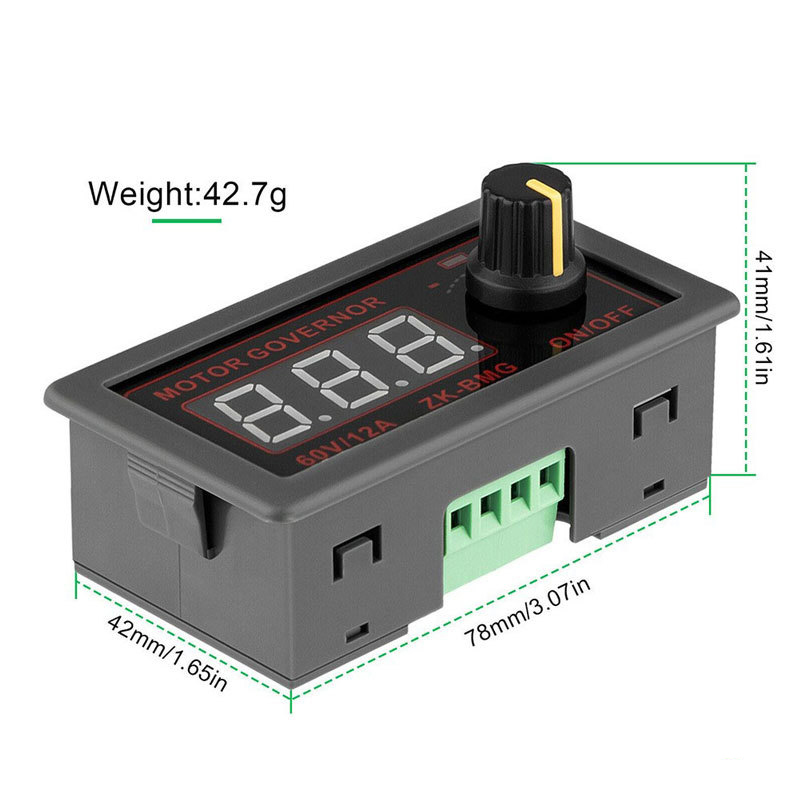

6. Product size: 79mm * 43mm * 26mm

Installation hole size: 39.3mm * 76.5mm

7. Product weight: 43g (bare weight), 65.5g (with packaging)

8. Packaging form: paper box packaging
