US-100 Ultrasonic Ranging Module With Temperature Compensation Ultrasonic Sensor Dual Mode Serial PortItem NO.: US-100
-
Customized Requirements
- Quantity
-
-
- Product Name: US-100 Ultrasonic Ranging Module With Temperature Compensation Ultrasonic Sensor Dual Mode Serial Port
- Item NO.: US-100
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Dual Mode , Ultrasonic Ranging Module , Ultrasonic Sensor , US-100
- Creation Time: 2024-04-12

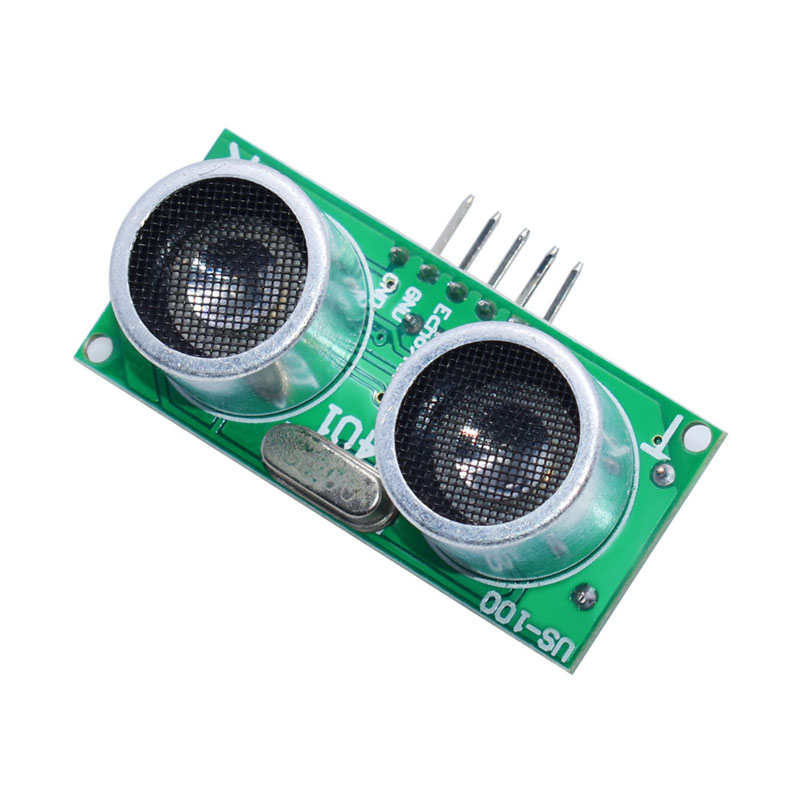

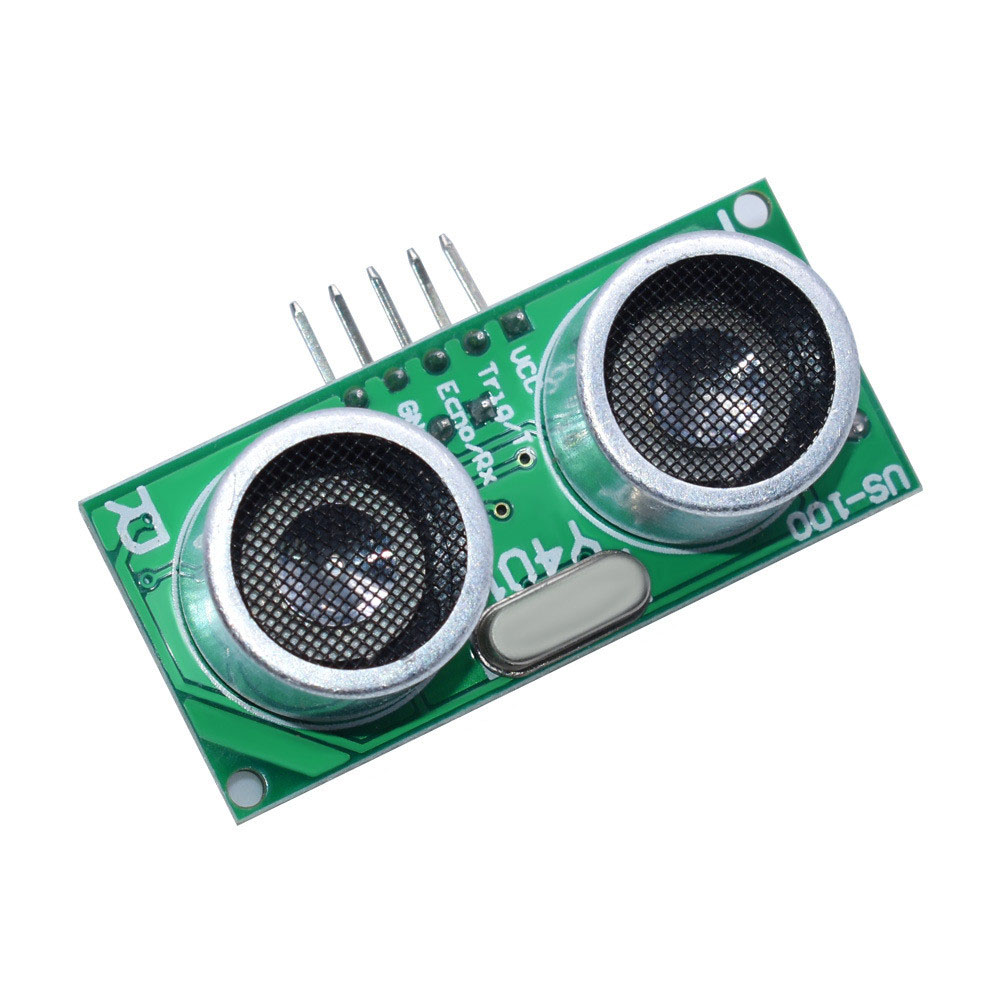

US-100 Ultrasonic Ranging Module
Summary:
The US-100 ultrasonic ranging module can achieve a non-contact ranging function of 2cm to 4.5m, a wide voltage input range of 2.4-5.5V, and a static power consumption of less than 2mA. It comes with a temperature sensor to correct the ranging results. It also has multiple communication methods such as GPIO and serial port, and is equipped with a watchdog, ensuring stable and reliable operation.
Main Technical Parameters:
● Name: US-100 Ultrasonic Ranging Module
● Working voltage: DC 2.4V~5.5V
● Static current: 2mA
● Working temperature: - 20~+70 degrees Celsius
● Output mode: level or UART (jumper cap selection)
● Sensing angle: less than 15 degrees
● Detection distance: 2cm-450cm
● Detection accuracy: 0.3cm+1%
● Serial port configuration in UART mode: baud rate 9600, start bit 1, stop bit 1, data bit 8, no parity, no flow control.
