HX711 AD Serial Port Module Single-Chip Electronic Scale Weighing Sensor 24-bit Precision Pressure SensorItem NO.: HX711 Serial Port
-
Customized Requirements
- Quantity
-
-
- Product Name: HX711 AD Serial Port Module Single-Chip Electronic Scale Weighing Sensor 24-bit Precision Pressure Sensor
- Item NO.: HX711 Serial Port
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: HX711 , AD Serial Port Module , Electronic Scale Weighing Sensor , 24-bit , Pressure Sensor
- Creation Time: 2024-04-12

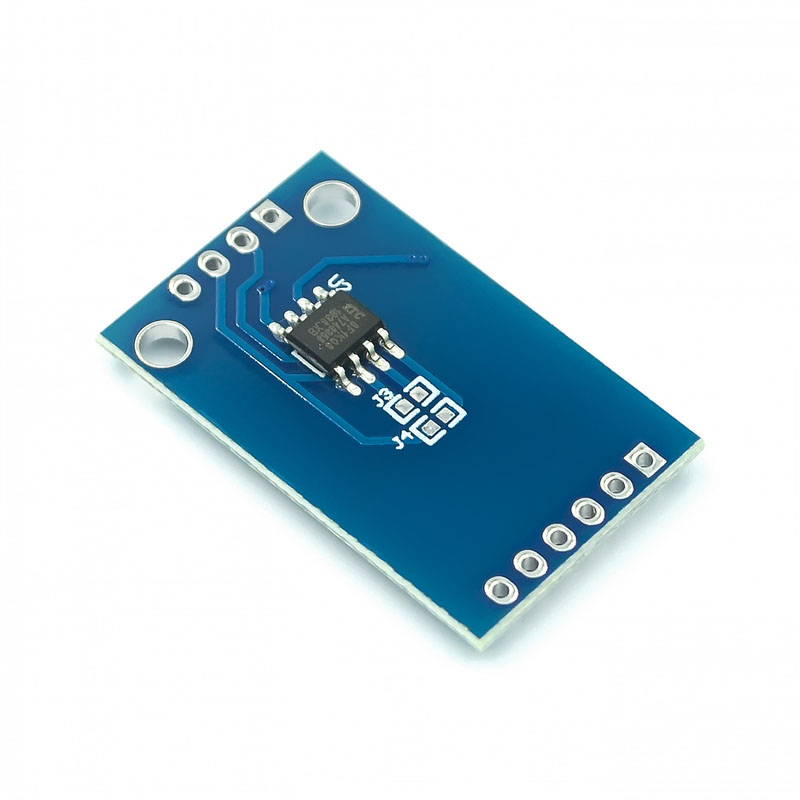

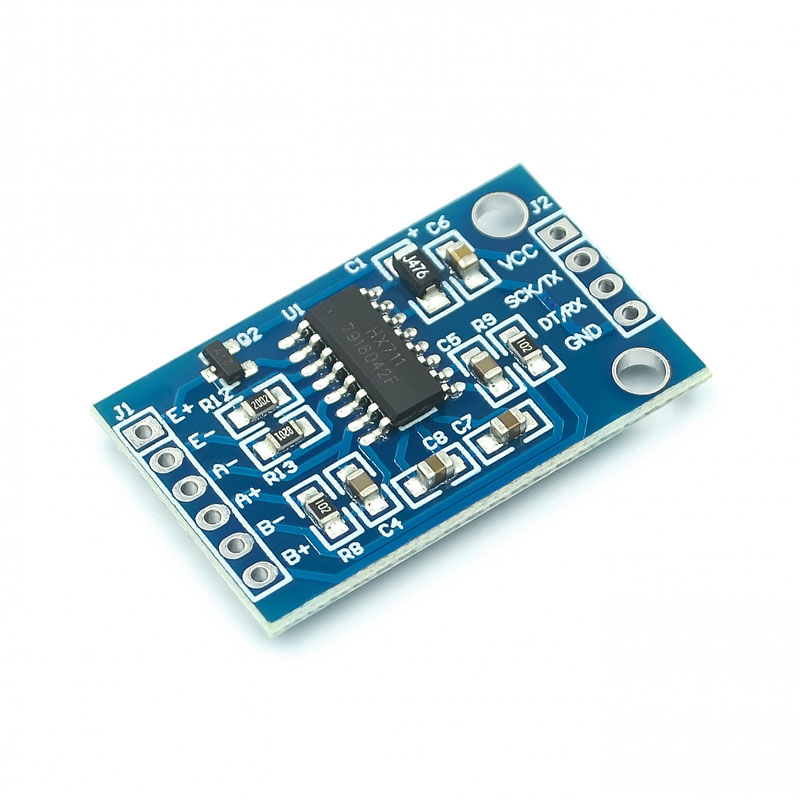

HX711 AD Serial Port Module
Main Features Of The Module:
● AB dual-channel design, each channel has 2 working modes for customers to choose, to meet different user needs. (For details, see the module operation manual, with a link above)
● Default baud rate: 9600bps Check bit: no stop bit: 1 bit Total protocol length: 10 bytes

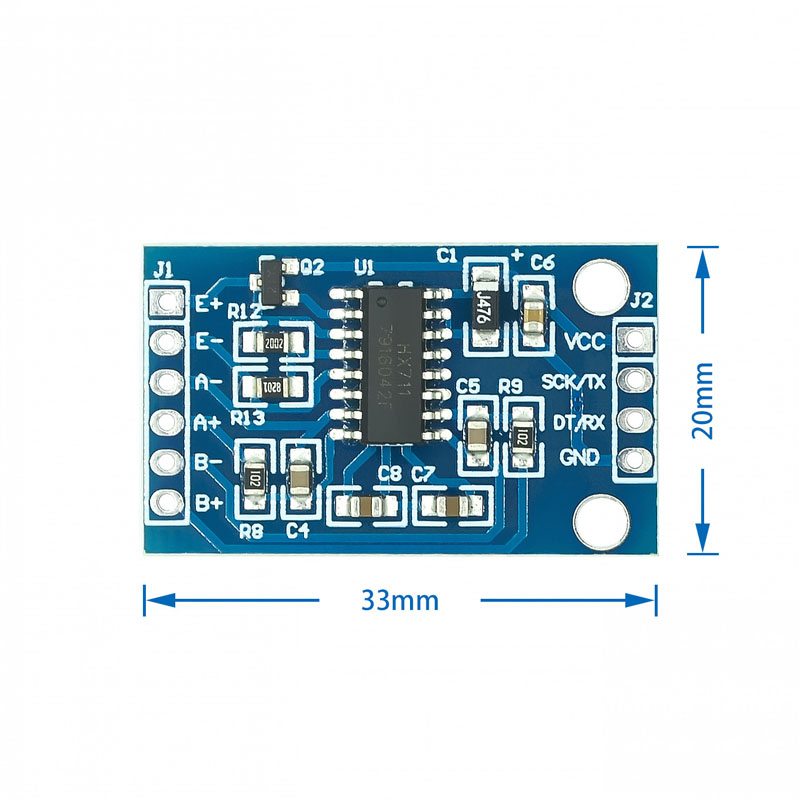

● Volume: 3.3cm long * 2cm wide * 0.3cm high.
● The new model adds 47uf black large capacitance tantalum capacitor, which significantly improves the stability.
● Built-in MCU, peeling, correction and other N command control, powerful function. Save the development time at the bottom.
● The voltage stabilizing circuit in the HX711 chip can directly supply power to the external pressure sensor.
● Simple serial communication, which can transfer data from TTL to USB to connect computers, is very convenient.
● It can synchronously suppress 50Hz and 60Hz power interference.
● The power consumption is very small, and the typical working current is 12mA
● Working voltage range: DC 4.7~5.5V.
● Operating temperature range: - 20 ℃~+85 ℃
