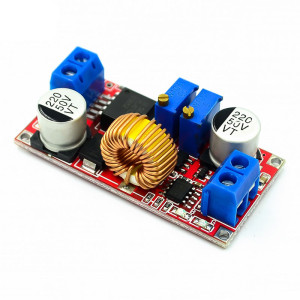

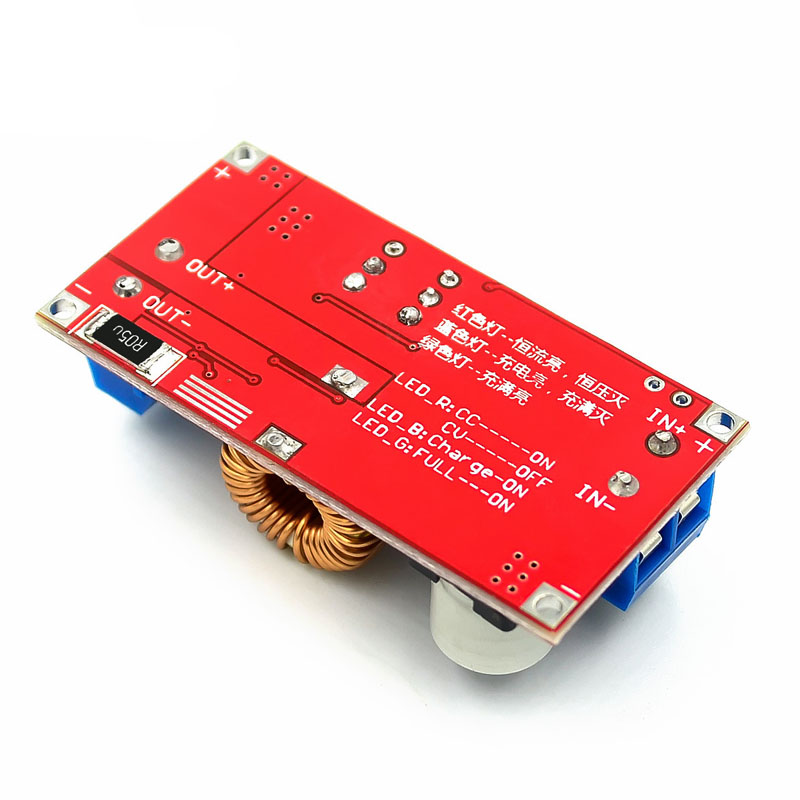

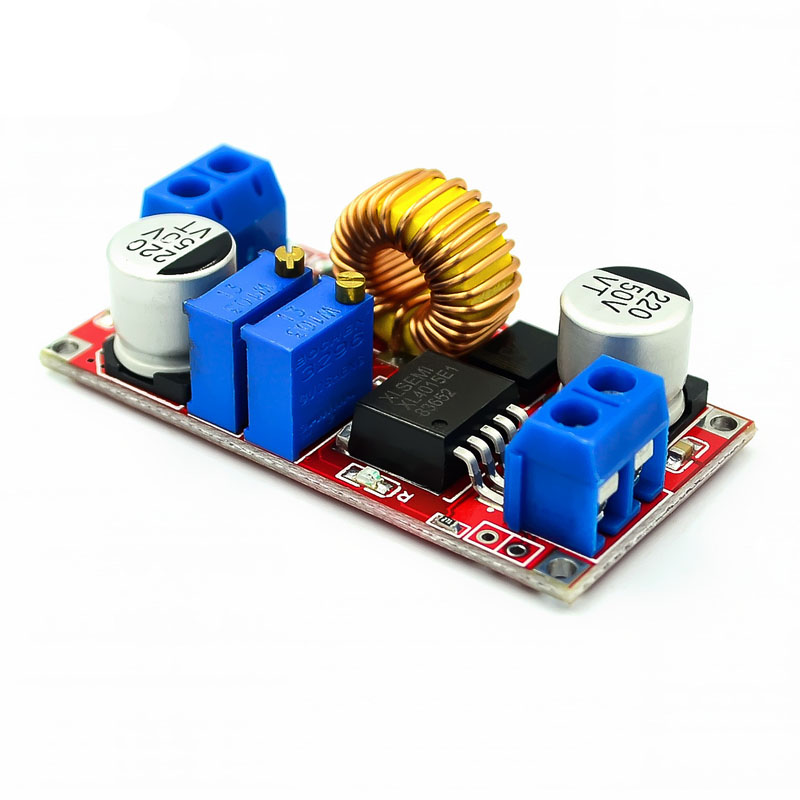

XL4015 Constant Current Constant Voltage High Current 5A Lithium-ion Battery Charging LED Driver Power ModuleItem NO.: XL4015CCCV
-
Customized Requirements
- Quantity
-
-
- Product Name: XL4015 Constant Current Constant Voltage High Current 5A Lithium-ion Battery Charging LED Driver Power Module
- Item NO.: XL4015CCCV
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Power Module , LED Driver , XL4015 , Constant Current Constant Voltage , High Current 5A , Lithium-ion Battery Charging
- Creation Time: 2024-04-10
XL4015 Constant Current Constant Voltage
Product Parameters:
● Module nature: Non isolated step-down module
● Rectification method: asynchronous rectification
● Input voltage: 5V-32V
● Output voltage: 0.8V-30V
● Output current: adjustable up to 5A
● Conversion efficiency: 95% ()
● Switching frequency: 300KHz
● Output ripple: 50mV (large) 20M bandwidth
● Load adjustment rate: ± 0.5%
● Voltage regulation rate: ± 2.5%
● Operating temperature: -40 ℃ to+85 ℃

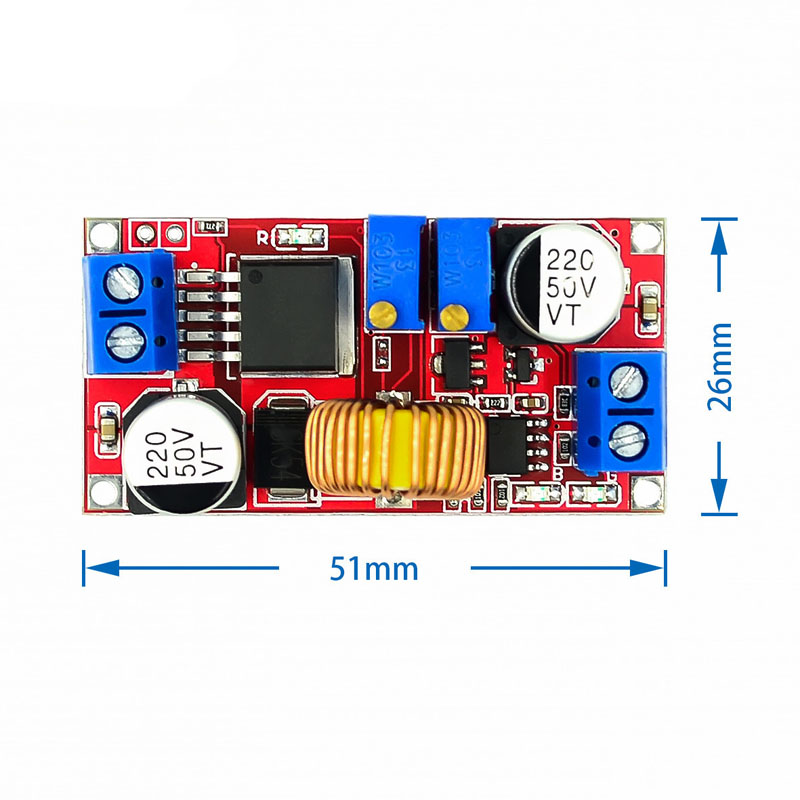

● Size: 51 * 26.3 * 14 (length * width * height) (mm)
Product Features:
● The module uses imported high-quality chips, with high efficiency (95%) and low heat generation, which can reach 5A current. At the same time, it is matched with the original TI operational amplifier to control the output current, making the overall output very stable.
● This module uses original Sanyo filter capacitors with low ESR, which can reduce the ripple voltage to 50mV!
● This module uses machine mounting and reflow soldering, and each module undergoes two hours of aging testing before shipment to ensure high reliability.
