YX5300 Compatible with YX6300 UART TTL Serial MP3 Music Player Module Micro SDItem NO.: HW-311

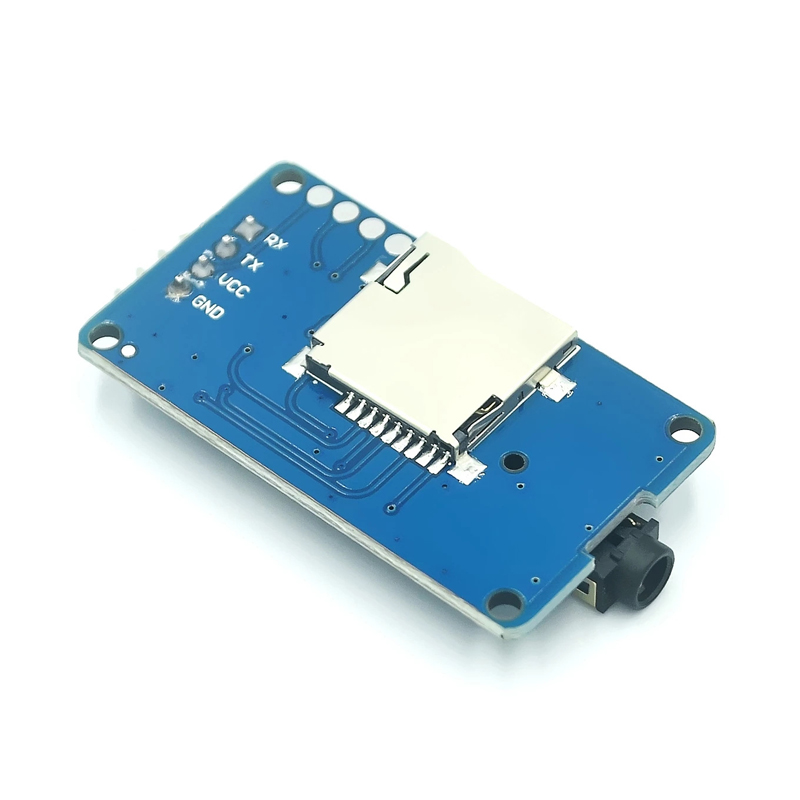

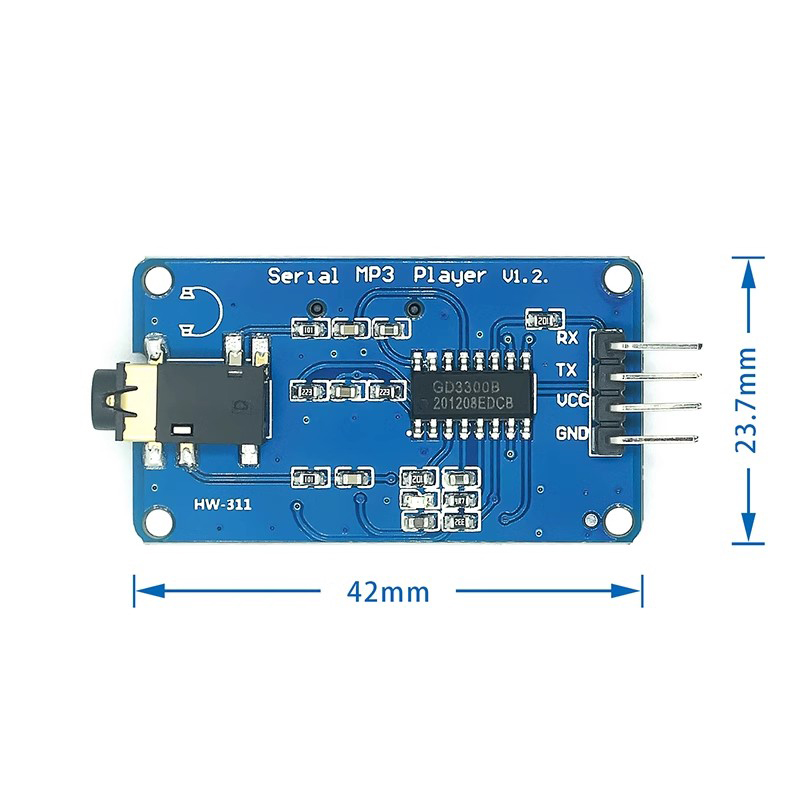

YX5300 MP3 Player Module

Summary:

YX5300-24SS is a voice chip that provides serial ports, perfectly integrating MP3 and WAV hard decoding. At the same time, the software supports industrial level serial communication protocols, using SPIFLASH, TF cards, or USB flash drives as storage media. Users can flexibly choose any of these devices as the voice storage medium. The biggest feature of this product is that it can play the specified voice and how to play the voice through simple serial instructions, without the need for tedious low-level operations, easy to use, stable and reliable. No need for any burner or software, USB can directly burn FLASH.

Function:

1. Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48

2.24-bit DAC output, dynamic range supporting 90dB, signal-to-noise ratio supporting 85dB

3. Supports up to 16M bytes of SPIFLASH. For example, W25Q16 [2M bytes], W25Q128 [16M bytes]

4. Multiple control modes, including parallel port control mode, serial port mode, and AD button control mode

5. The Miniusb interface updates voice files without the need to install any software. Supports XP and WIN7 systems.

6. Support combination playback function, which can achieve time and temperature reporting, and to some extent, can replace some expensive TTS solutions

7.30 level adjustable volume, 5 level EQ adjustable [this function is not currently available]

8. Equipped with a 3W power amplifier, directly connected to an external speaker to complete playback

9. Supports triggering playback of 8 segments of voice and IO detection, making it suitable for situations such as carbon film buttons

10. It can simultaneously support USB flash drives, TF cards, and SPIFLASH as storage media

Application:

1. Car navigation voice broadcasting

2. Highway transportation inspection and toll station voice prompts;

3. Voice prompts for safety inspections at train and bus stations;

4. Voice prompts for power, communication, and financial business halls;

5. Voice prompts for vehicle entry and exit channel verification;

6. * * Voice prompts for border inspection channels;

8. Voice notification for safe driving of electric sightseeing vehicles;

9. Automatic alarm for mechanical and electrical equipment faults;

10. Fire voice alarm prompt;

11. Automatic broadcasting equipment, timed broadcasting
