12V Single Button Bistable Relay Module For Car Modification Switch One Button Start Stop Self-LockingItem NO.: Single Button Bistable Relay
-
Customized Requirements
- Quantity
-
-
- Product Name: 12V Single Button Bistable Relay Module For Car Modification Switch One Button Start Stop Self-Locking
- Item NO.: Single Button Bistable Relay
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Switch/Relay Module
- Tag: 12V , Single Button Bistable Relay Module , One Button Start Stop Self-Locking
- Creation Time: 2024-03-27

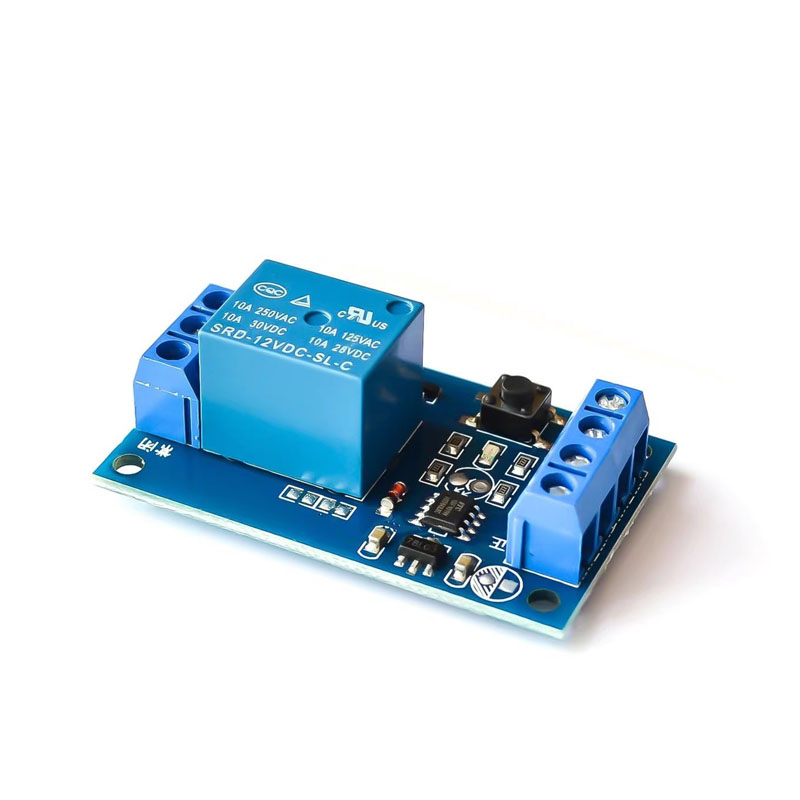

12V Single Button Bistable Relay Module
Introduction:
1. Power supply 12V
2. Press the buttons on the board or external buttons to make the relay module engage or disconnect. Press once to engage and then press disconnect, and the button will trigger at a low level. The relay is in a disconnected state when re powered on.
3. The secondary output terminal of the relay bears a current of 10A, which means that the working current of the controlled circuit or equipment cannot exceed 10A. It should be connected to the normally open or normally closed terminal according to its own needs.
4. Reserved welding position for external pull-in indicator lights, and there are also welded pull-in indicator lights on the board

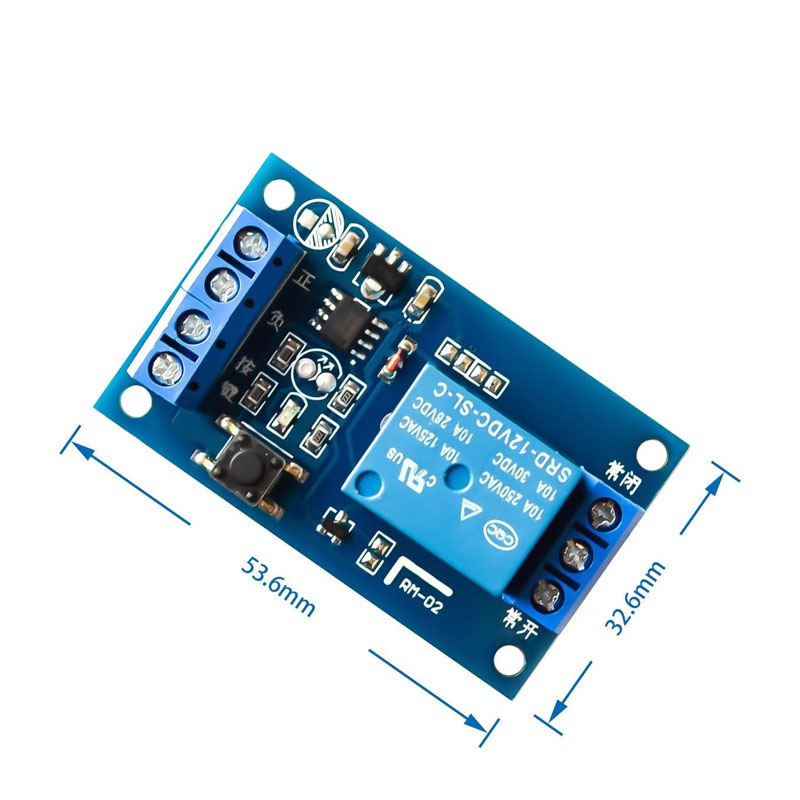

5. Module size: length x width x height=52.8mm x 32mm x 18mm
6. Single key two steady state relay module, power supply reverse connection will burn out, and there is no power supply reverse protection
