150W Small Inverter DC12V To 110V AC220V Booster DC To AC Circuit BoardItem NO.: MK00646

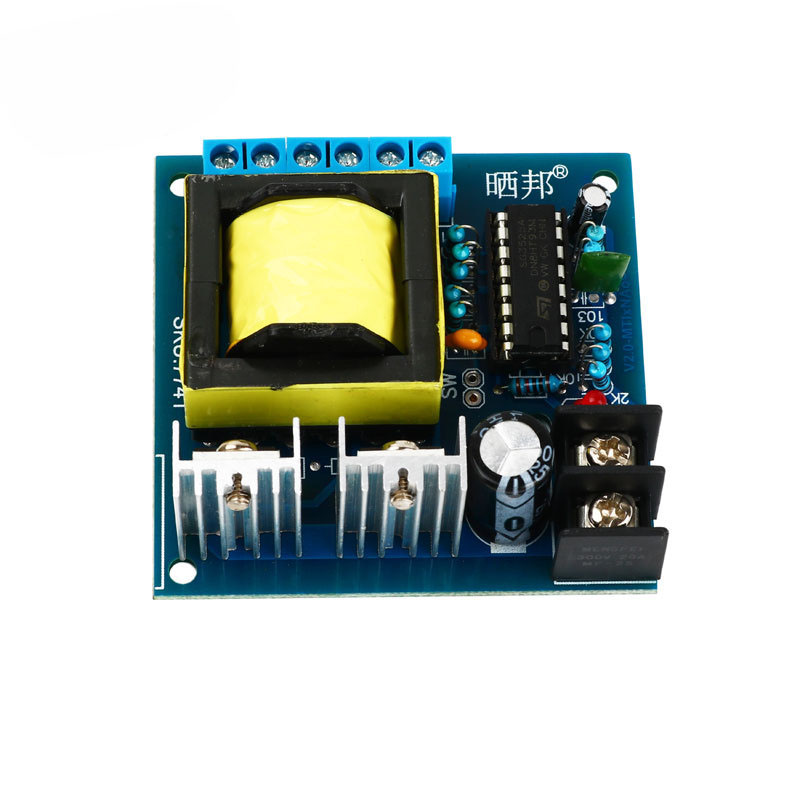

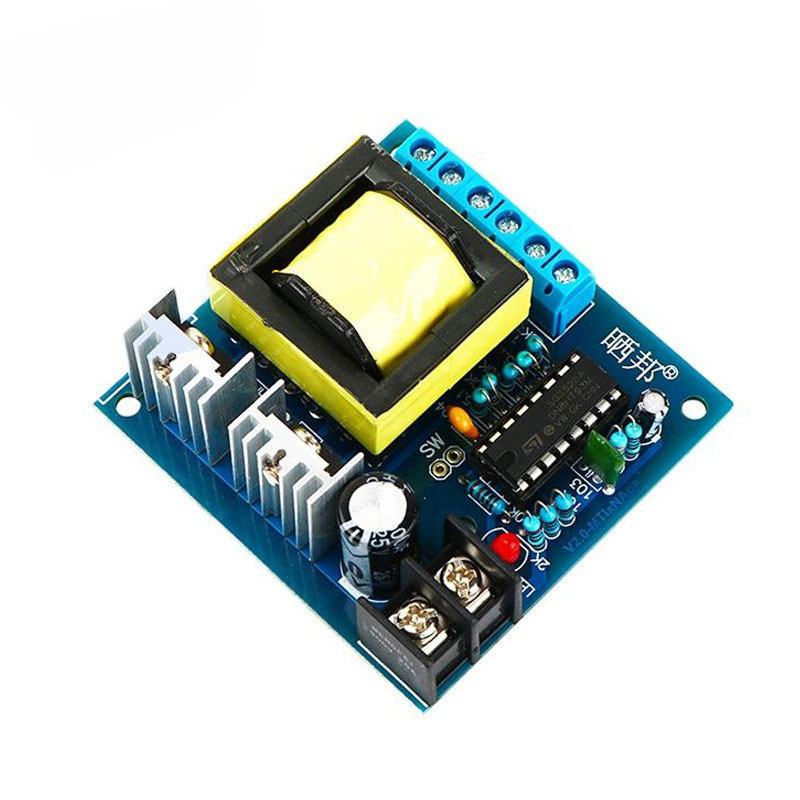

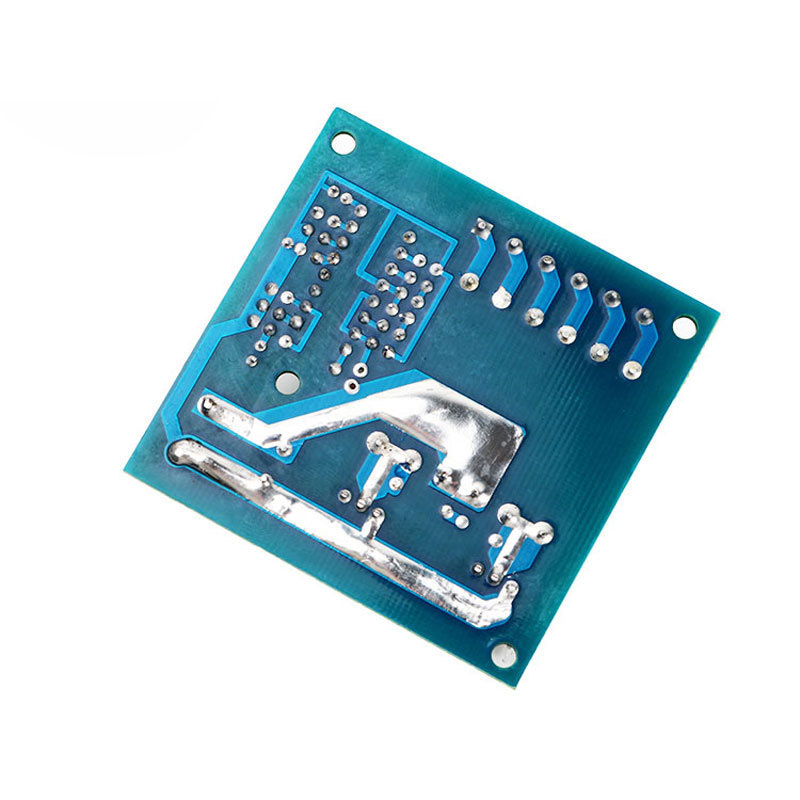

150W Small Inverter

Product Introduction:

● Power: 150W

● Input: DC12V or DC24V

● Output: AC 0-110V-172V-200V-220V multiple voltage outputs (note: the output is high-frequency square wave AC voltage "can be made according to the voltage required by the customer")

● Static current: about 0.08A

● Output waveform: high-frequency square wave

● Output frequency: around 20KHz

● Protection: No protection

This Product Is Widely Used:

A good helper for night camping, night market vendors, and driving families in case of power outages. Can be used as DIY production, maintenance replacement, manufacturer control cabinet supporting products for electronic enthusiasts, and so on.

Attention:

1.This board is a high-frequency square wave AC output, so most inductive appliances cannot carry it!! For example, electric electromechanical fans, coils, transformers, etc. cannot be brought with them

Additionally, simple resistive and capacitive voltage reducing small appliances, inexpensive resistive and capacitive voltage reducing LED lamps, etc. may not be usable

2. When connecting the load to electronic electronic products (LED lights, mobile phone chargers, DVD set-top boxes, WIFA, etc.), a fast recovery diode or a low voltage range such as 110V 172V should be connected in series at the output end

3. It is recommended to increase the heat sink or add a fan to enhance heat dissipation when working for a long time with high load!!

4. The positive and negative poles of the input power supply cannot be reversed. Additionally, the power supply and power cord should have sufficient current

5. Do not overload or short-circuit without any protective output.

6. Because the output is a high-frequency square wave AC voltage, many ordinary multimeters cannot measure or display low or high values (which is incorrect and not the actual voltage. You can use it with confidence)

Special Reminder:

The load is an electronic product. It is recommended to output a series of high-frequency diodes on our board, which can be rectified into a DC output. Many electronic products, such as switch power supplies, use ordinary rectifier tubes to save costs. If connected to the "high-frequency AC output", the rectifier diodes in the appliances will rapidly heat up, damage, breakdown, and short circuit, ultimately leading to the burning of the inverter board. The output wiring is as follows: "For reference only"

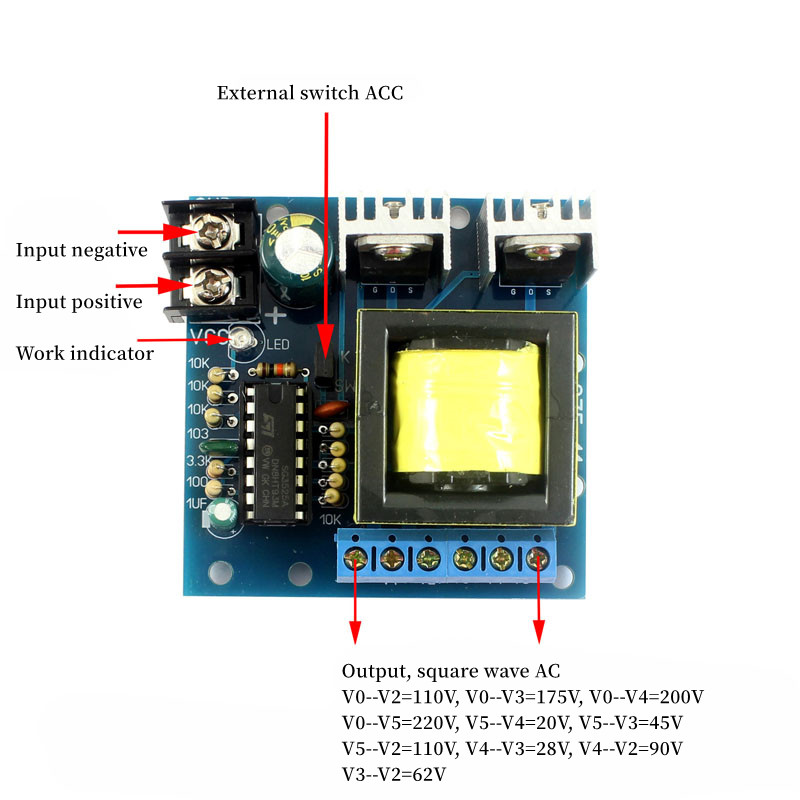

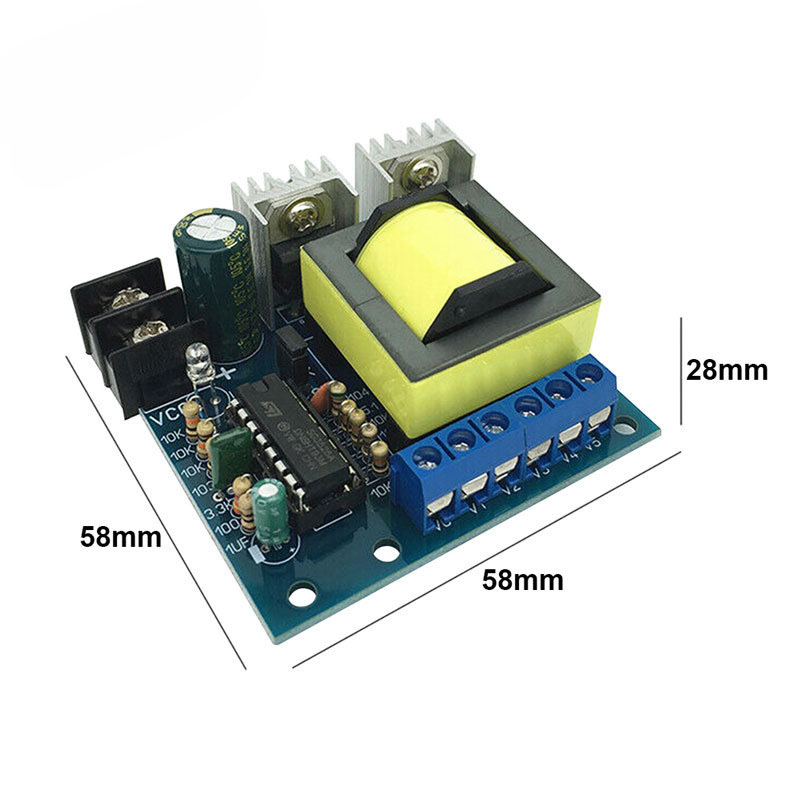

V0- V2=110V

V0-- V3=175V

V0-- V4=200V

V0- V5=220V

V5-V4=20V

V5-- V3=45V

V5-V2=110V

V4-V3=28V

V4-V2=90V

V3-V2=62V
