DC Adjustable Boost Module LM2587 High-power Boost and Stabilize Power Supply Board 3V5V12V to 19V24V30V36VItem NO.: MK01114
-
Customized Requirements
- Quantity
-
-
- Product Name: DC Adjustable Boost Module LM2587 High-power Boost and Stabilize Power Supply Board 3V5V12V to 19V24V30V36V
- Item NO.: MK01114
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: DC Adjustable Boost Module , LM2587 , 3V5V12V to 19V24V30V36V , High-power Boost and Stabilize Power Supply Board
- Creation Time: 2024-05-13

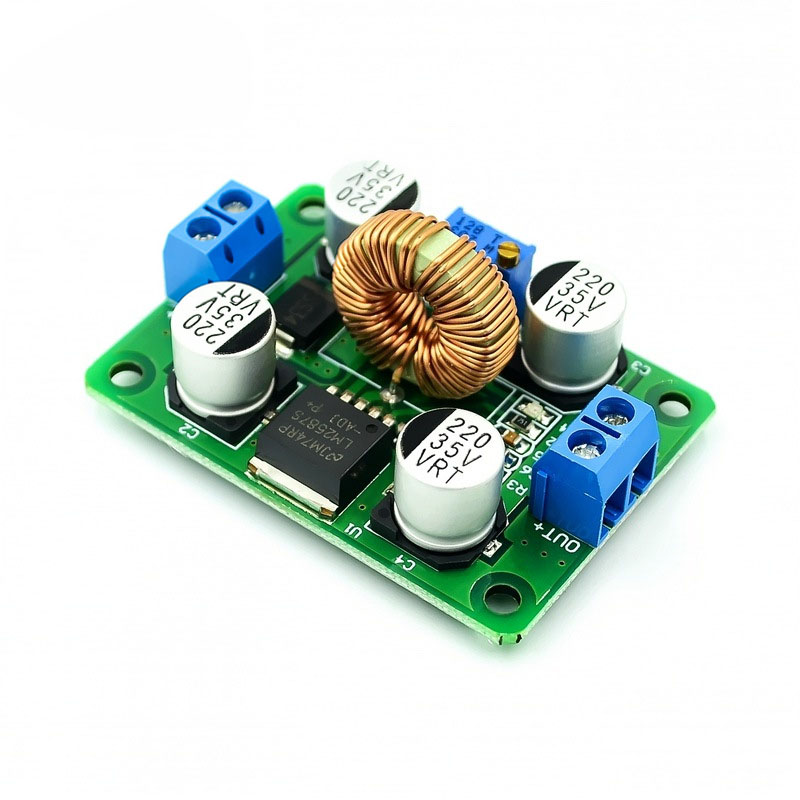

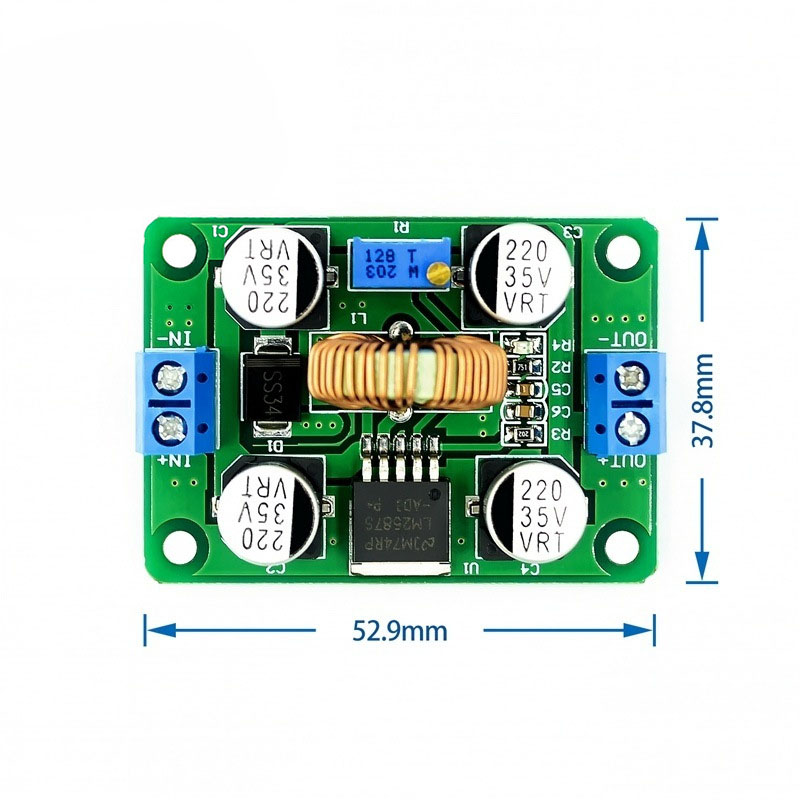

DC Adjustable Boost Module LM2587
Attention:
When you test, if the output voltage is not higher than the input voltage, please adjust the potentiometer clockwise, the output voltage will rise, please do not adjust counterclockwise, so that the module will be damaged or even damaged under high input voltage!
Indicator:
● Input voltage range: 3.5V-30V (it must be ensured that the output set voltage is higher than the input voltage)
● Output voltage range: 4.0V-30V
● Maximum input current: 5A (output current under rated conditions calculated based on power conservation)
Uin * Iin * Efficiency=Uout * Iout)
● Continuous working current: 3A (the ratio of output voltage to input voltage under good ventilation and heat dissipation conditions cannot exceed 3)
