3.7V to 12V Mini DC-DC Boost Module Supports 5V/8V/9V/12V Output Lithium Battery BoostItem NO.: MK02114
-
Customized Requirements
- Quantity
-
-
- Product Name: 3.7V to 12V Mini DC-DC Boost Module Supports 5V/8V/9V/12V Output Lithium Battery Boost
- Item NO.: MK02114
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 3.7V to 12V , Mini DC-DC Boost Module , 5V/8V/9V/12V Output , Lithium Battery Boost
- Creation Time: 2024-04-10
3.7V To 12V Mini DC-DC Boost Module
Product Introduction:
The power module can be directly mounted on a printed circuit board as a power supply, which is characterized by providing power for specialized integrated circuits (ASICs), digital signal processors (DSPs), microprocessors, memory, field programmable gate arrays (FPGAs), and other digital or analog loads. Generally speaking, this type of module is called a load point (POL) power supply system or a point of use power supply system (PUPS).
Basic Parameters:
● The output voltage can be set to 5V/8V/12V, with a default of 12V
● Input voltage range: 2.5V~VOUT. The input voltage should be lower than the set output voltage
● Output capacity: When input from a 3.7V lithium battery, it can output 5V1A, 8V0.5A, 9V0.45A, and 12V0.3A; When input at 5V, it can output 8V0.7A, 9V0.7A, 9V0.45A, 12V0.5A; When the default output is 12V, the LED indicator consumes approximately 1mA of current; If the indicator light is turned off, the input current at no-load is 1mA
Voltage Setting:

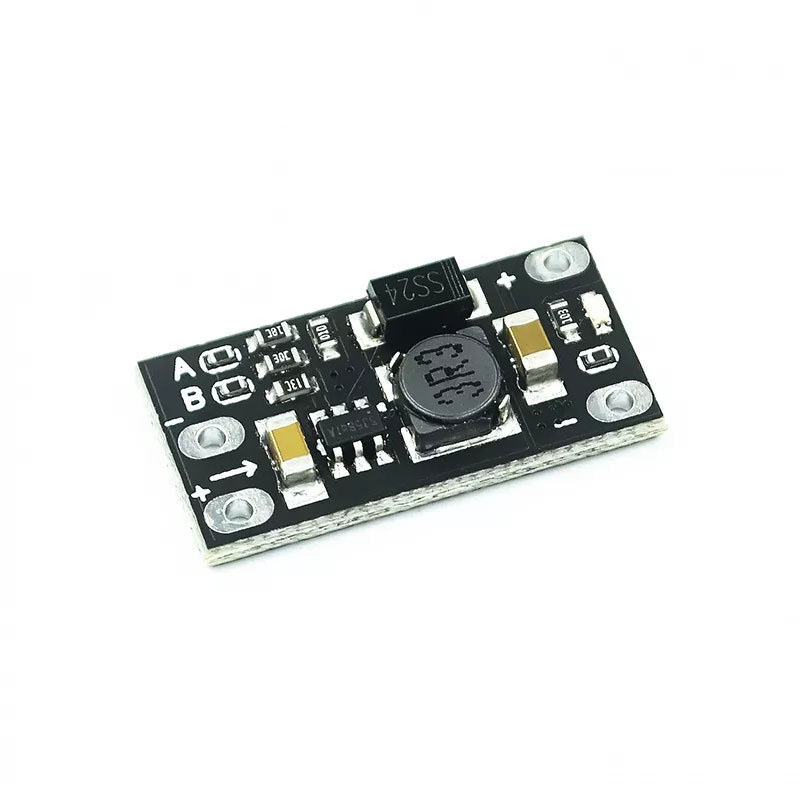

On the front of the PCB, the words A and B can be seen. By using a circuit soldering iron to change the turn on/off of the solder pad next to the character, the output voltage can be changed. The solder pad of the LED indicator light can also be turned off to turn off the indicator light.
