60W6A High Power Adjustable Buck-Boost Power Module Solar Charging Long Handle Adjustment with Display ShellItem NO.: MK01115

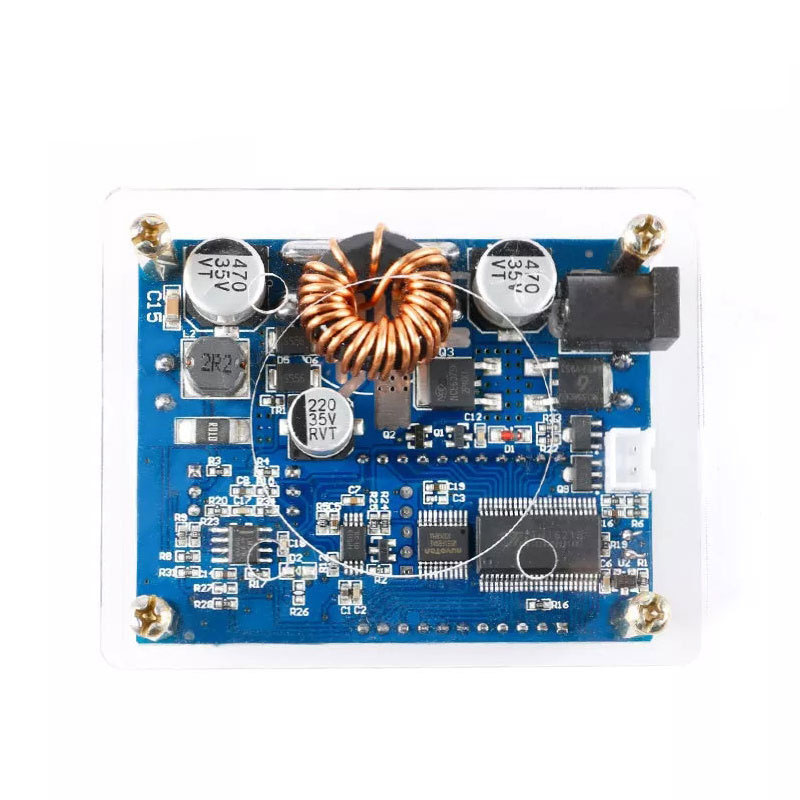

60W6A High Power Adjustable Buck Boost Power Module

Attention!!!

Many customers ask if it is possible to buy a fanless version and equip it with their own fans? Answer: No way! Because the fan version is not only equipped with an additional fan, but also with a circular pressure drop plate that drives the fan, otherwise it is not compatible.

It can be equipped with adapters of 12~24V and 3A~5A, with input power greater than output power. If you require a higher output power, please choose a higher power supply.

The shipment does not include a power adapter, which needs to be purchased separately. It is recommended to use an adapter with a voltage of 15-24V and a current of 2-5A. If there is a high demand for output power, choose a high-power adapter and plug it into the DC port of the module to convert it into a desktop power supply.

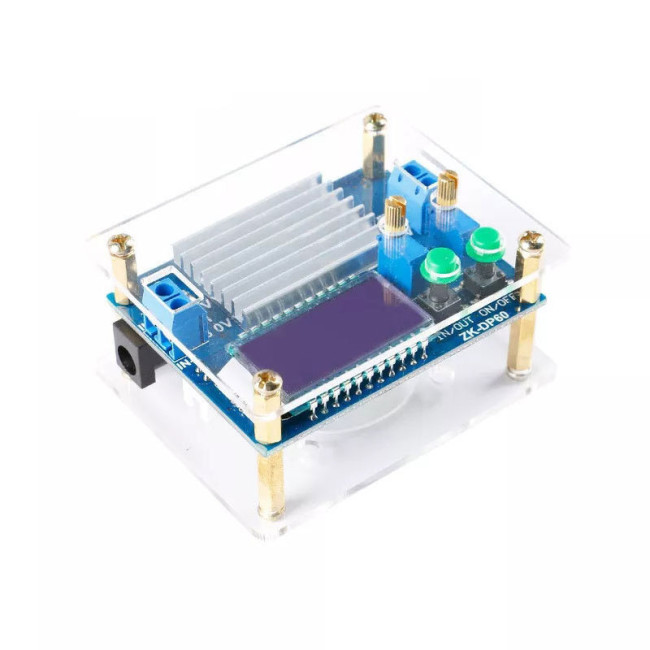

The shell is shipped as a DIY kit and requires customers to assemble it themselves, making it easy to operate. There is a protective film on the outer layer of the acrylic shell and LCD screen. Please tear off the film before assembling, as the product will be more transparent.

Product Highlights:

1. The long handle potentiometer can adjust the voltage and current, and can be operated by hand without using a slot knife.

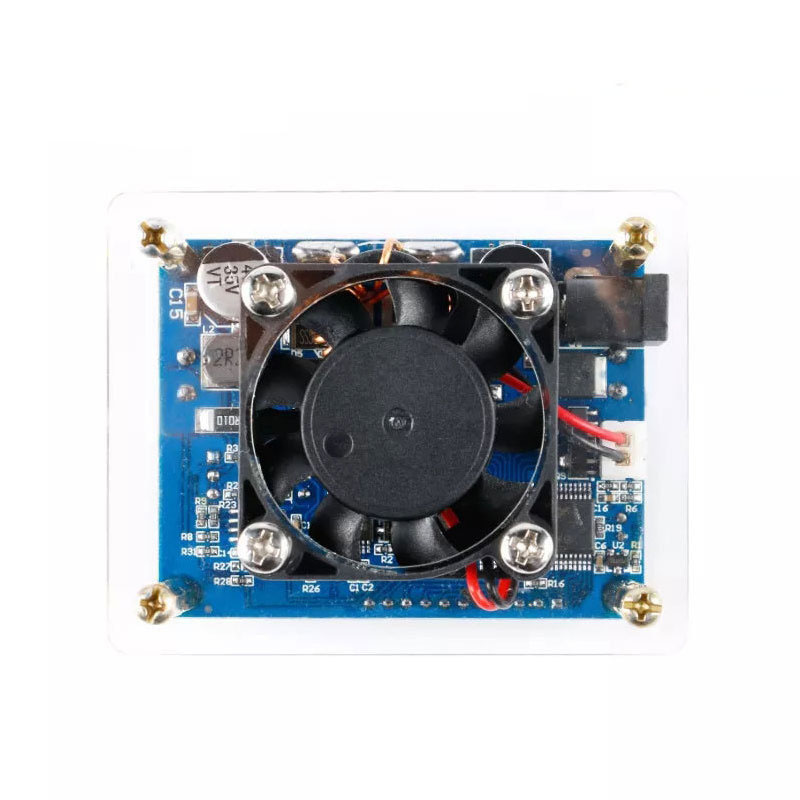

2. Equipped with large volume heat dissipation fins, shell, and optional fan.

3 LCD displays input and output voltage, temperature, output current, and output power.

4. Hardware protection: Input end anti reverse connection protection, reverse connection will not burn out; The output end is anti backflow, and there is no need to add an anti backflow diode when charging the battery;

5. Software protection: Over current protection, Over power protection, Over temperature protection.

6. It can increase voltage and decrease voltage, with output voltage of 0.5-30V adjustable at will, and limit current of 0-6A adjustable at will;

7. Press the button to control the ON/OFF status of the output terminal, and it is possible to set the power on default to ON or OFF.

8. With LC filtering, the output ripple is small;

Product Parameters:

● Input voltage: 5.5-30V (When the input voltage is 5V, voltage rise and fall can also be achieved, but the measurement of voltage and current is not accurate; when it is lower than 4.7V, undervoltage protection is provided)

● Output voltage: 0.5-30V

● Output current: The fanless version can work stably at 4A for a long time, while the fan version can reach 6A

● Output power: 35W without fan version, 60W with fan version

● Voltage display resolution: 0.01V, accuracy error 1%

● Current display resolution: 0.001A, accuracy error 1%

● Conversion efficiency: around 88%

● Soft start: Yes (high power modules with load may fail during startup)

● Input reverse connection protection: Yes, reverse connection does not burn

● Output end anti backflow: Yes, it can be directly connected to the battery

● Short circuit protection: Yes, the output terminal can be directly short circuited

● Temperature protection: 100 ℃

● Power protection: 60W

● Overcurrent protection: 6A

● Operating frequency: 180KHZ

● ● Fan rotation conditions: current greater than 3A, power greater than 20 watts, or temperature greater than 40 ℃.

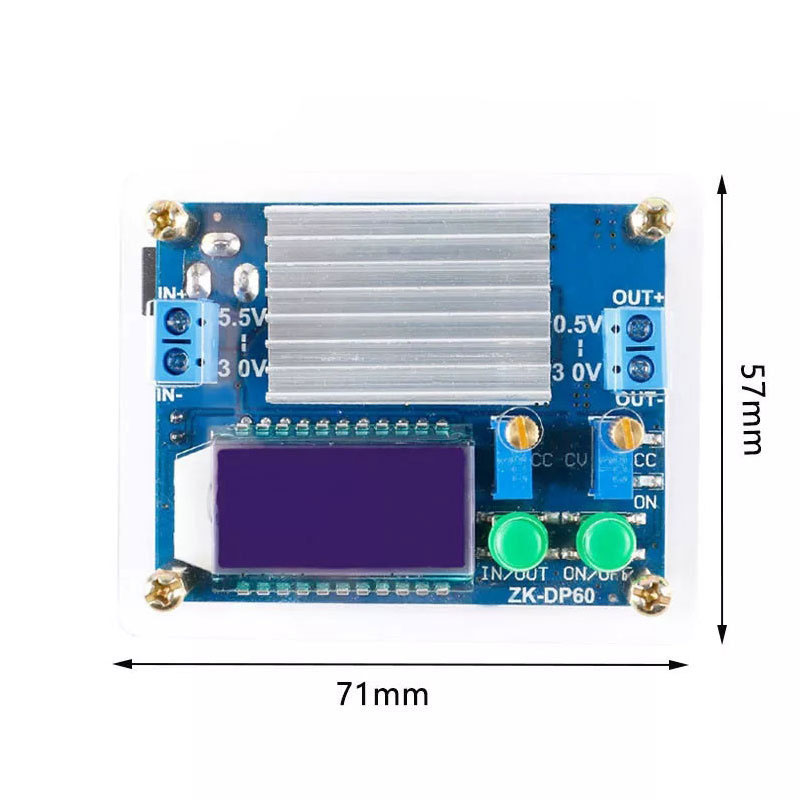

● Size: length * width * height 72 * 59 * 32mm for fanless version

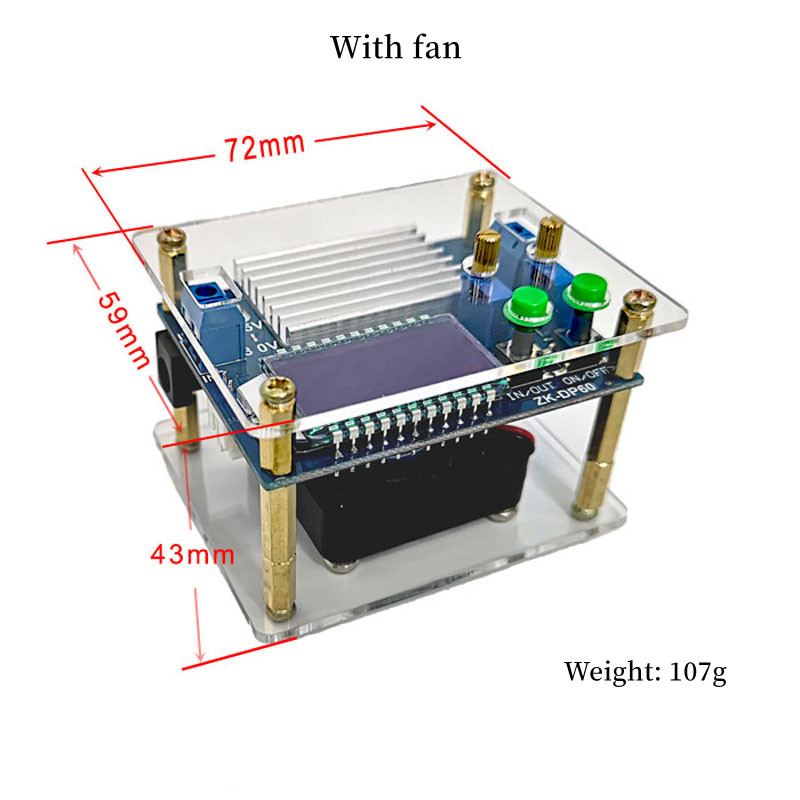

● Fan version length * width * height 72 * 59 * 43mm

● Installation hole: diameter 3mm

● Weight: fanless version 81g

● Fan version 107g

Function Description:

1. The module has two buttons: IN/OUT and ON/OFF. Short press the IN/OUT button to switch between input voltage, output voltage, and module temperature display. Long press to switch between output current and output power display; Short press the ON/OFF button to control the output ON or OFF, and long press to set the default output state to ON or OFF for the next power on.

2. CC on the left is the current setting potentiometer, which can be rotated clockwise to increase the set current. When the load current reaches the set current, it enters the constant current state, and the CC constant current indicator light (red) lights up; The CV on the right is the voltage setting potentiometer. Rotate it clockwise to increase the output voltage. The ON indicator light is an output status indicator light that lights up when there is voltage at the output terminal, otherwise it goes off.
