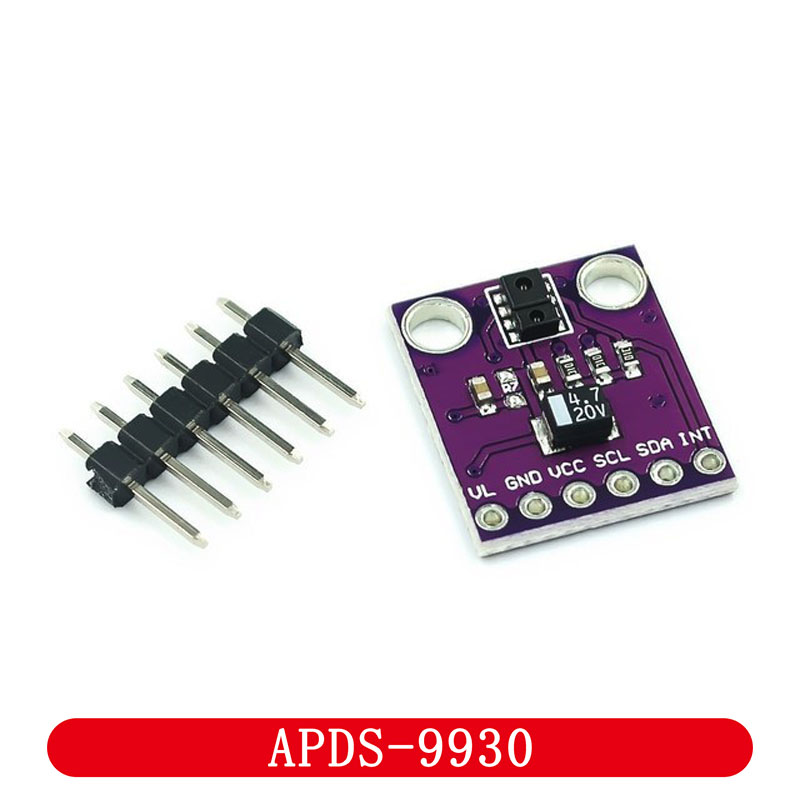

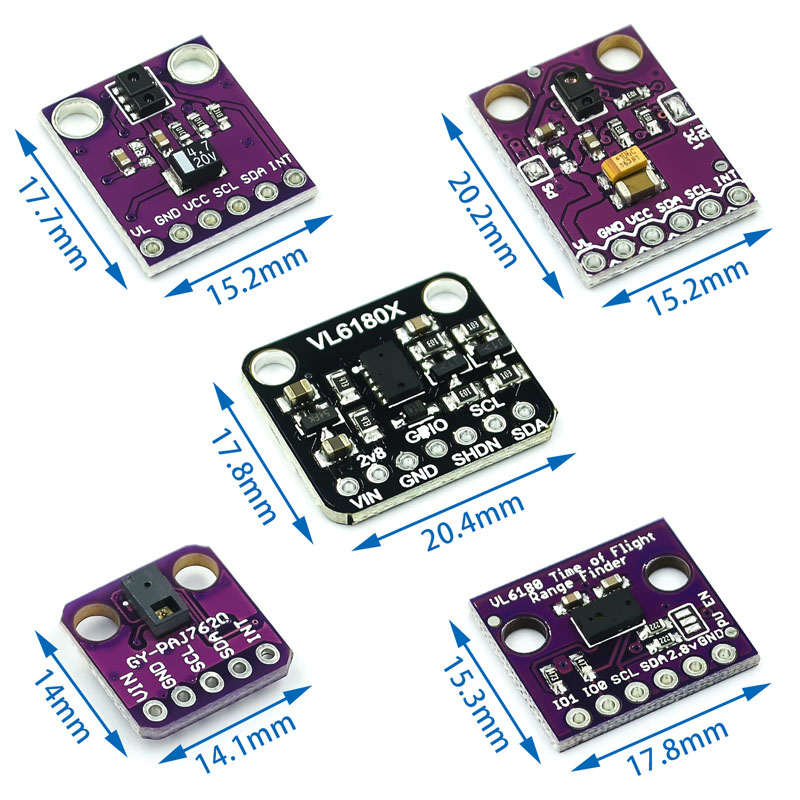

Gesture Sensor APDS-9930

Product Information:

The APDS-9930 provides an I2C interface compatible ambient light sensor (ALS) and a proximity sensor with an infrared LED in a single 8-pin package. The ambient light sensor uses dual light diodes to provide human visual response with low lumen performance under approximately 0.01 lux illumination. The high sensitivity provided enables the device to operate behind dark glass. After full calibration, the proximity sensor can perform 100 mm object detection, eliminating the factory calibration requirements of terminal equipment and sub assemblies. The proximity detection function works well from bright sunlight to dark rooms. The module adds micro optical lens to provide efficient transmission and reception of infrared energy, which can reduce the overall power consumption. In addition, the internal state machine can make the device enter the low power consumption mode, resulting in extremely low average power consumption.

Product Features:

1. Optical module integrated with ALS, infrared LED and proximity detector

2. ALS (Ambient Light Sensing)? Visual response similar to human eyes

3. Programmable interrupt function with upper and lower threshold

4. Up to 16 bit resolution

5. High sensitivity of operation behind dark glass

6. 0.01lux low lumen performance

7. Proximity detection, fully calibrated to 100 mm detection

8. Integrated infrared LED and synchronous LED driver

9. Exemption from factory calibration of proximity sensors

10. Programmable Wait Timer? Wait State Power Consumption - 90 μ A typical value

11. The programmable range is 2.7 milliseconds to more than 8 seconds

12. I2C interface compatible? Up to 400kHz (I2C fast mode)

13. Dedicated interrupt pin

14. Sleep mode power - 2.2 μ A typical value

15. Small package 3.94 (L) x 2.36 (W) x 1.35 (H) mm

Product Application:

● Dimmable phone backlight

● Mobile phone touch screen can be disabled

● Notebook/monitor security

● Automatic activation of handsfree call profile

● Automatic menu pop-up

● Digital camera eye sensor

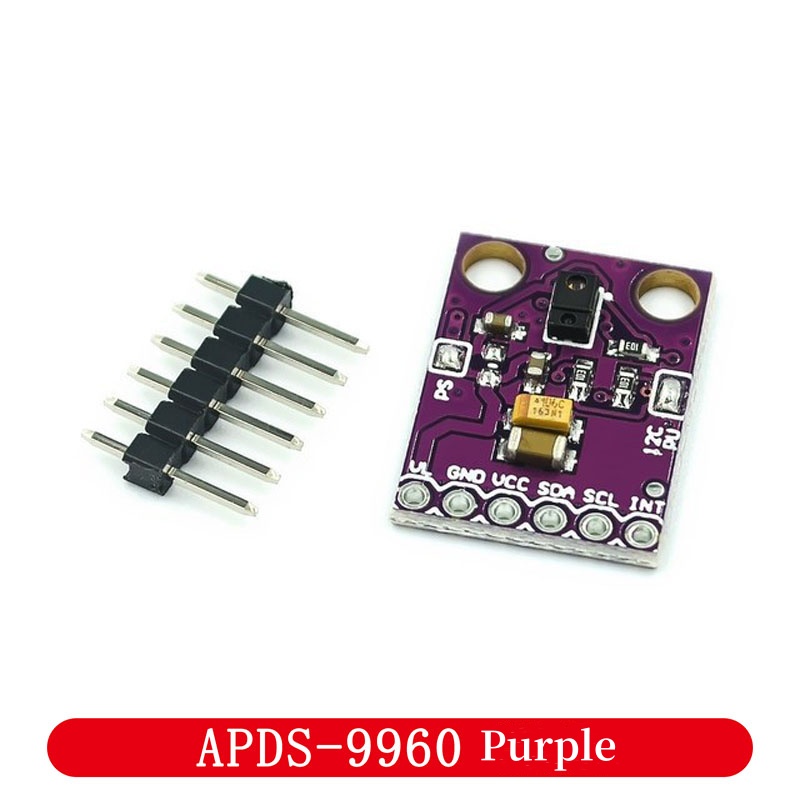

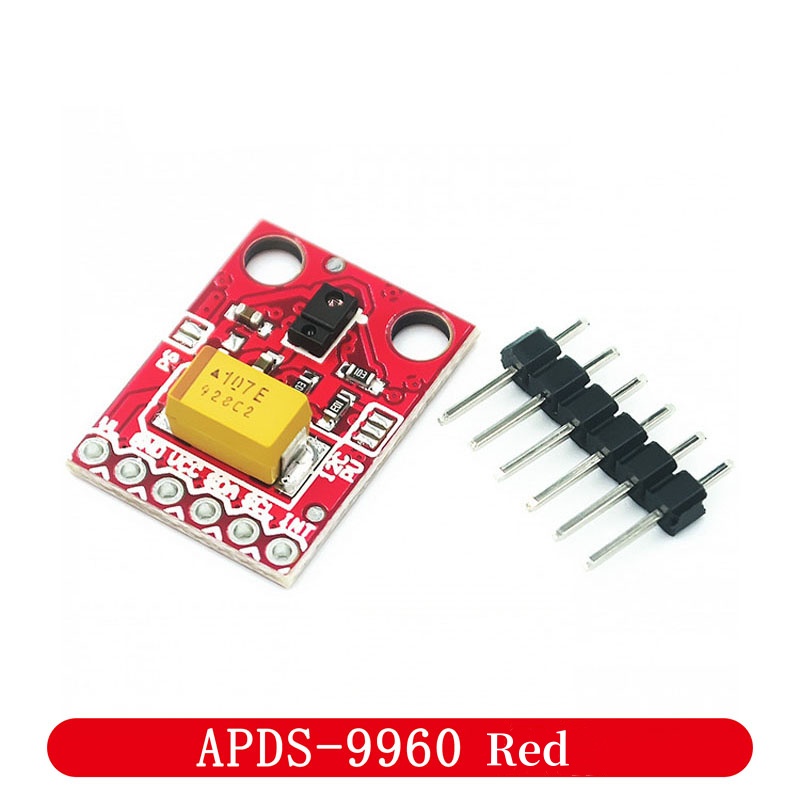

RGB Infrared Gesture Sensor APDS-9960

Product Description:

APDS-9960 is an integrated ALS, infrared LED and proximity detector optical module and ambient light sensing (ALS, Ambient Light Sensing) ambient light sensor, using dual photodiodes to approximate 0.01 lux illumination approximate the visual response of the human eye , Programmable interrupt function with upper and lower thresholds, up to 16-bit resolution, highly flexible operation even behind dark glass, Proximity sensor fully tuned for 100mm object detection, eliminating end equipment and sub-components factory calibration requirements. The dynamic range of ambient light is also increased from the previous 10K lux to 30K lux, and the sunlight calibration is greatly increased to 50K lux, which greatly improves the sensitivity and avoids strong light interference. It can work accurately under the large 1.0mm Air Gap without external isolation treatment, which greatly facilitates the customer's structural design. Its standby state power consumption - 90μA typical value, sleep mode power - 2.2μA typical value, more energy saving; up to 400kHz (I2C fast mode) dedicated interrupt pin, providing I2C interface compatibility, fully integrated solution, convenient structure and circuit design , I believe it can bring users a better design experience and product value!

The built-in APDS-9960 sensor provides ambient light and color measurement, proximity detection and contactless gesture detection. With this RGB and gesture sensor, you can control a computer, microcontroller, robot, and it is much more powerful than a simple swipe of your hand! In fact, the gesture sensor APDS-9960 was used in the Samsung Galaxy S5.

It can be used in ambient light and RGB color sensing, proximity detection, and gesture detection.

Thanks to four infrared sensors, you can measure changes in light reflectivity over time at each basic location and translate those changes into gestures. Our interface library can detect directional gestures (left-to-right, right-to-left, top-to-bottom, bottom-to-top), but theoretically more complex gestures like zigzag, clockwise or counterclockwise circle, near It is achievable in the long run.

Product Parameters:

● Working voltage: 3.3V

● Measuring range: 4-8in (10-20CM)

● Interface type: I2C interface

● INT: interrupt output

● SCL: I2C clock port

● SDA: I2C data port

● VCC: positive input port of power supply, connect to 2.4V-3.6V voltage (recommended 3.3V)

● GND: negative power input port

● VL: External IR LED power supply. Must be 3.0 - 4.5V

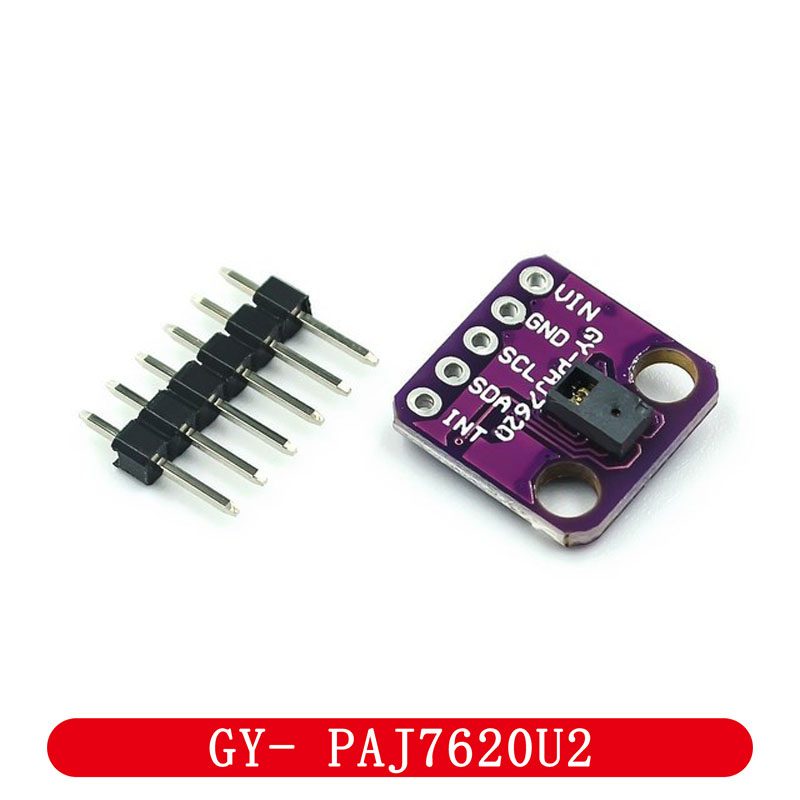

PAJ7620U2 gesture recognition sensor

Description:

PAJ7620U2 gesture recognition sensor. It can recognize 9 gestures including move up, move down, move left, move right, move forward, move backward,circle-clockwise, circle-counter clockwise, and wave. These gestures information can be simply accessed via the I2C bus. The PAJ7620U2 also offers built-in proximity detection for the purpose of sensing object approaching or departing. The PAJ7620U2 is designed with great flexibility in power-saving mechanism.The PAJ7620U2 is designed to operate from 2.8V to 3.3V over -40°C to +85°C and the pull-up voltage for the I2C bus and interrupt line is from 1.8V to 3.3V.

Features:

- Typical supply voltage is 2.8V to 3.3V and I/O voltage is 1.8V~3.3V

- Nine gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave)

- Gesture speed is 60°/s to 600°/s in Normal Mode and 60°/s to 1200°/s in Gaming Mode

- Ambient light immunity: < 100k Lux

- Built-in proximity detection

- Flexible power saving scheme

- I2C interface up to 400 kbit/s, Pull-up voltage from 1.8V to 3.3V

- With ambient light noise cancellation

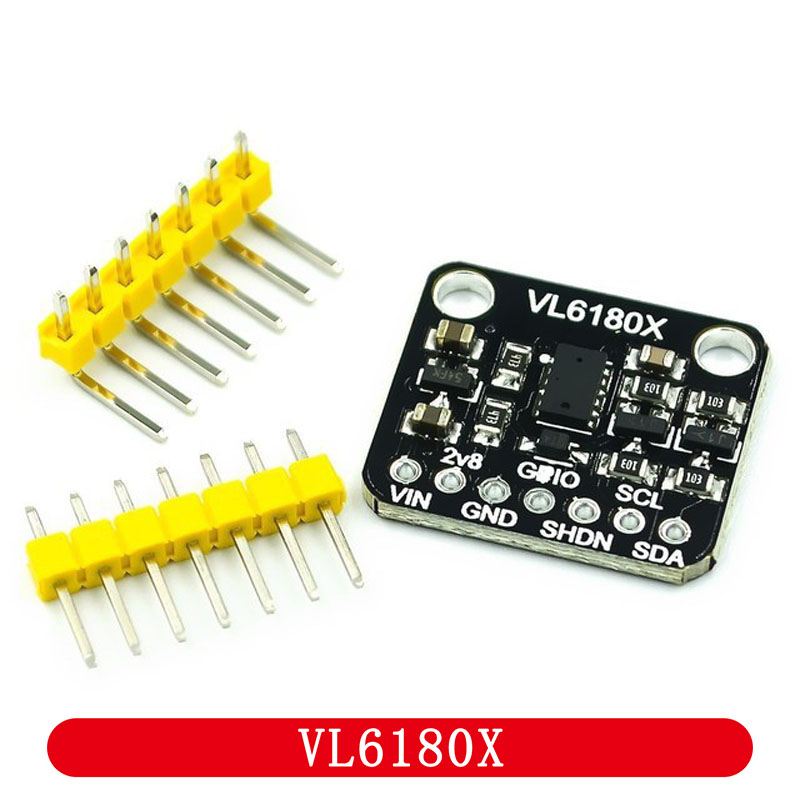

VL6180X Proximity Sensor

Product Introduction:

VL6180 is a time-of-flight ranging sensor. The sensor consists of a very small laser source and a matching sensor. VL6180X can detect the "flight time", or the time required for the laser to recover the sensor to calculate the distance.

Unlike most distance sensors that rely on reflected light intensity or reflection angle to determine the distance, VL6180 uses an accurate clock to measure the time required for light to bounce off the surface. Because it uses a very narrow light source, this is different from ultrasonic sonar, and different from traditional infrared distance sensors. Because there is no linearity problem or "dual imaging", you cannot determine the proximity of the object. Therefore, the VL6180X has higher accuracy.

The VL6180 module is recommended to handle the distance from 5mm to 100mm. Due to the small size of the sensor module, it is easy to use in any robot or interactive project. You can use it with any 3-5 V power supply or logic microcontroller.

Product Characteristics:

● Integrated intelligent optical module can be used for proximity sensing, ranging and other functions;

● Fast and accurate distance measurement. Measure the range from 0 to more than 100 mm. Based on the spontaneous beam reflection measurement independent of the object, the measurement range of more than 100 mm can be used under some extremely ideal target reflectivity and environment, but it is not guaranteed;

● I2C interface for equipment control and data, two programmable GPIO.

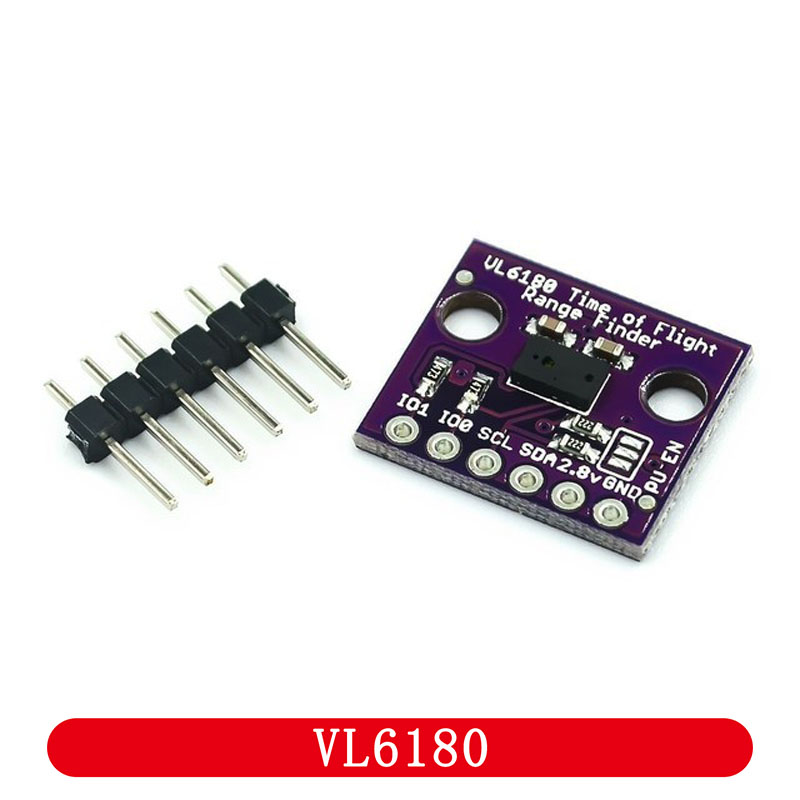

MCU 6180 VL6180 Proximity Sensor

Parameters:

● Infrared laser wavelength: 850 nm

● Communication interface: IIC (400kHz), address 0x29 (7-bit), two programmable GPIOs

● Good working temperature: - 10~60 ° C

● Range (near): 0-100mm, error 13mm

● Under certain external environmental conditions, such as in dark environments, it may exceed 100mm

● Temperature drift: 9-15mm Voltage drift: 3-5 mm

● Conversion time: 15ms

● Ambient light range: 1-100kLux 16 bit output

● Ambient light gain range: 1 to 40 (eight)

● Ambient light sensitivity: 0.36 Lux/count (535 nm LED @ 1 kLux. Measured at gain 20)

● Angular response: 42 degrees

● Linear error: 5% (1 to 300 Lux), 10% (300 to 7500 Lux)

● Gain error: 1% (gain 20), 7% (gains 1 to 10)
