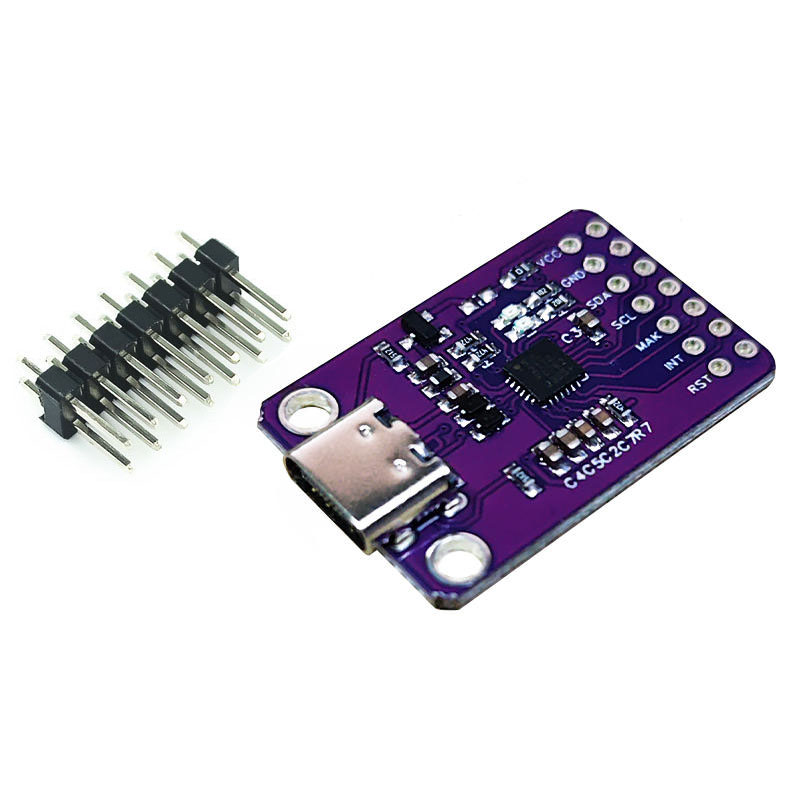

- Product Name: CP2112 TPYC-C MICRO-USB Interface Debugging Board USB to I2C Communication Module
- Item NO.: MCU-2112
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: MICRO , CP2112 , TPYC-C , USB to I2C Communication Module
- Creation Time: 2024-04-15

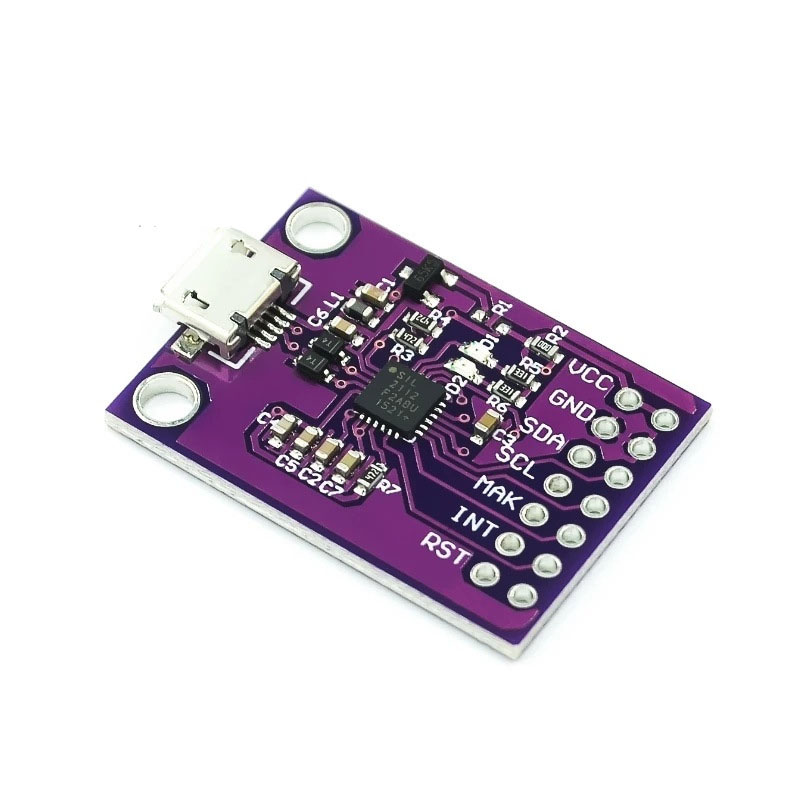

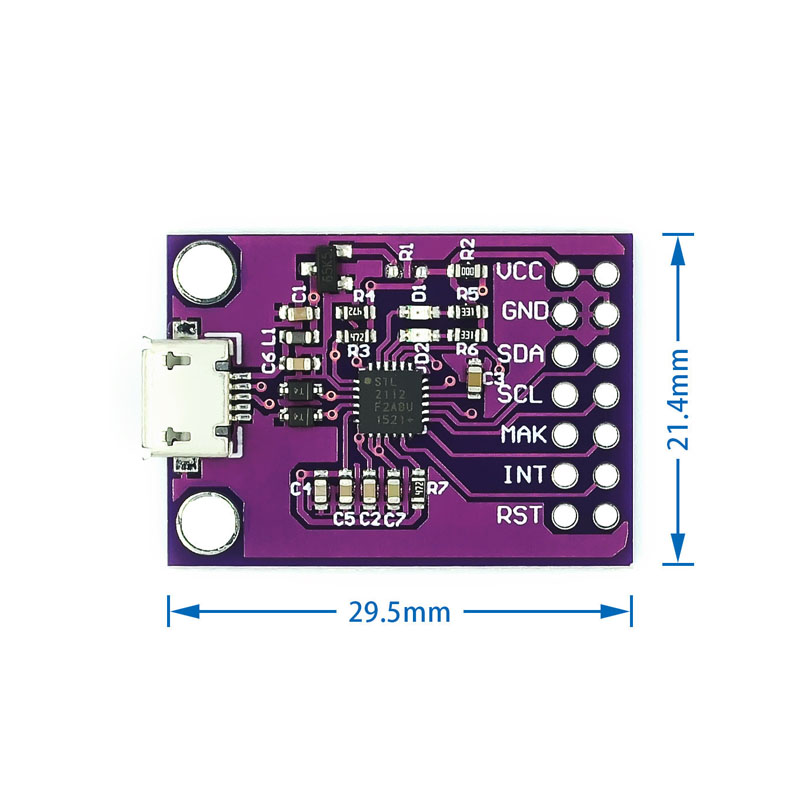

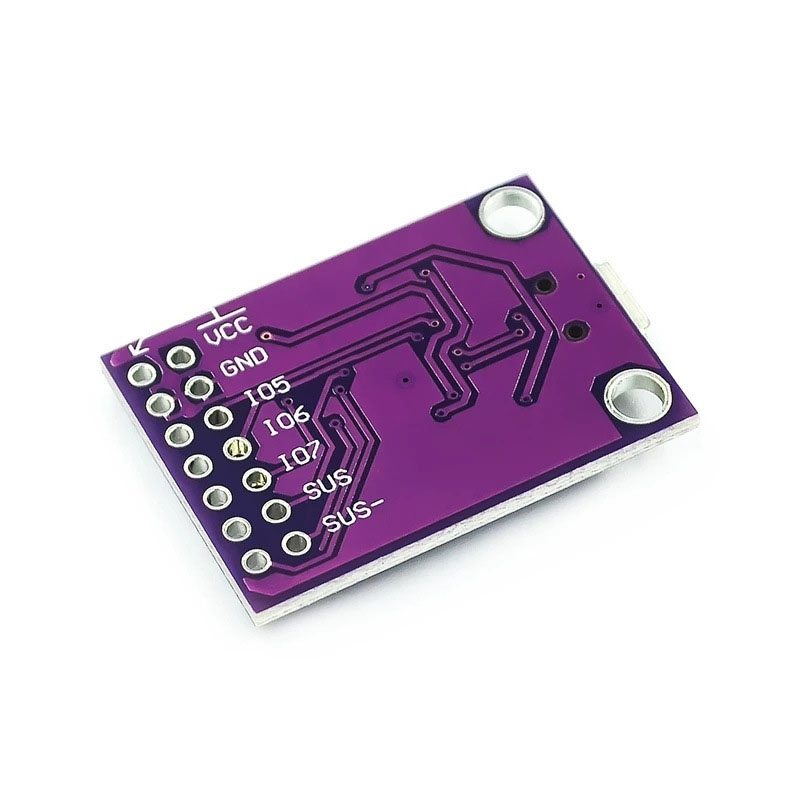

CP2112 Debugging Board
Product Characteristics:
The CP2112 highly integrated USB to SMBus bridge controller integrates a USB 2.0 full speed functional controller, a USB transceiver oscillator, and eight GP10 pins. All customization and configuration options can be selected through a simple GUI based configurator. Standard HID devices do not require the development of complex firmware and drivers, and CP2112 devices can achieve fast USB connectivity with minimal development effort.
Product Parameters:
1. USB bus power supply 4.0 sub 5.25V
2. Self powered 3.0 to 3.6V, I/O voltage 1.8V to VDD
3. Working environment temperature: - 40 ℃~85 ℃
4. On chip add point reset circuit, on chip voltage stabilizer: 3.45V output
5. Comply with USB specification 2.0 standard; Full speed (12Mbps)
6. Support USB suspend state through SUSPEND pin
7. Integrated 194 byte one-time programmable ROM for storing customizable product information
8. 512 byte SMBus data buffer, configurable clock speed device address 7-bit value, i.e. slave address of CP2112
9. Windows, Mac, and Linux HID to SMBus libraries API for rapid application development, open access interface specification.
10. 8 GPIOs can be configured as input/output and open drain/push pull type, used for configurable clock output of external devices from 48MHz to 94KHZ, read/write SMBus device switching LED
11. Application field: portable controller, USB dongle, data recording
