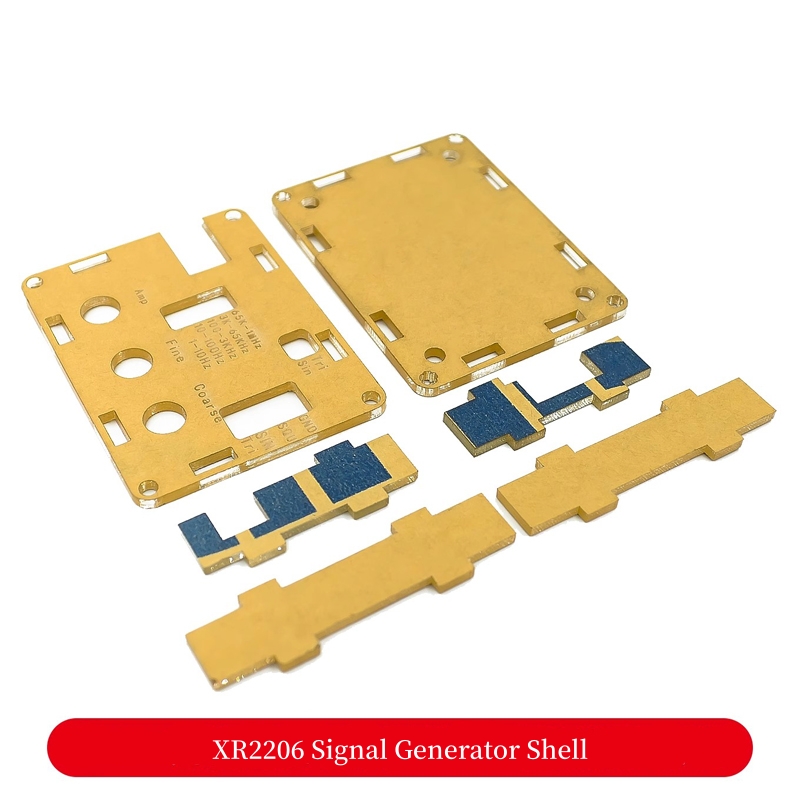

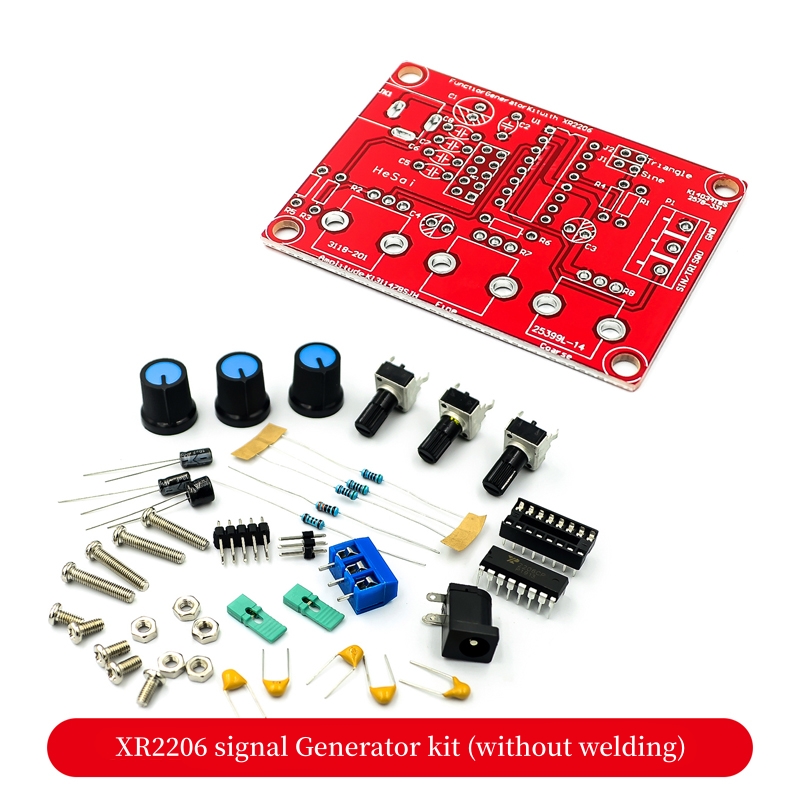

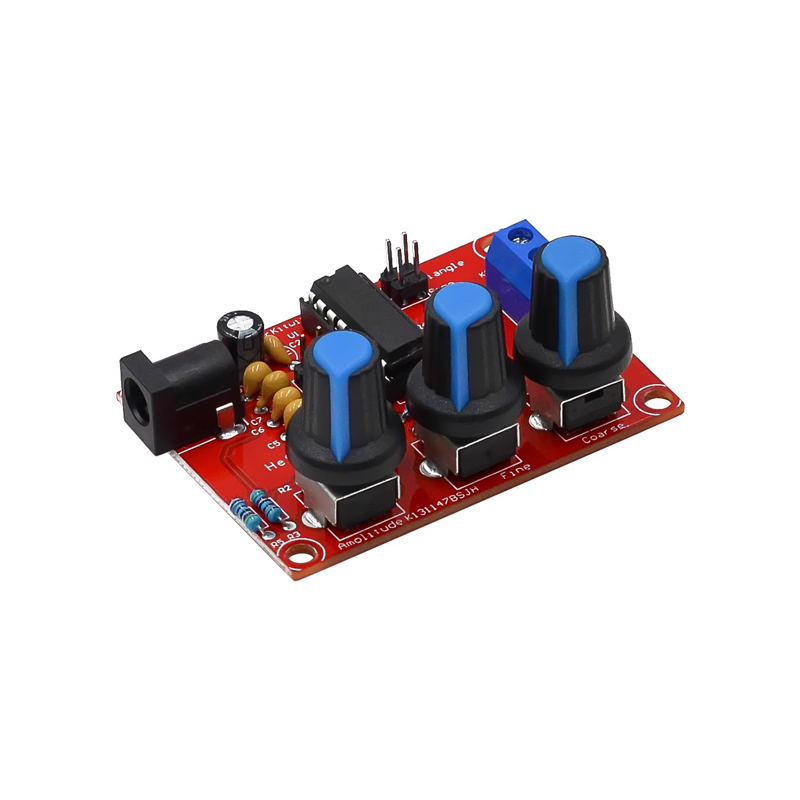

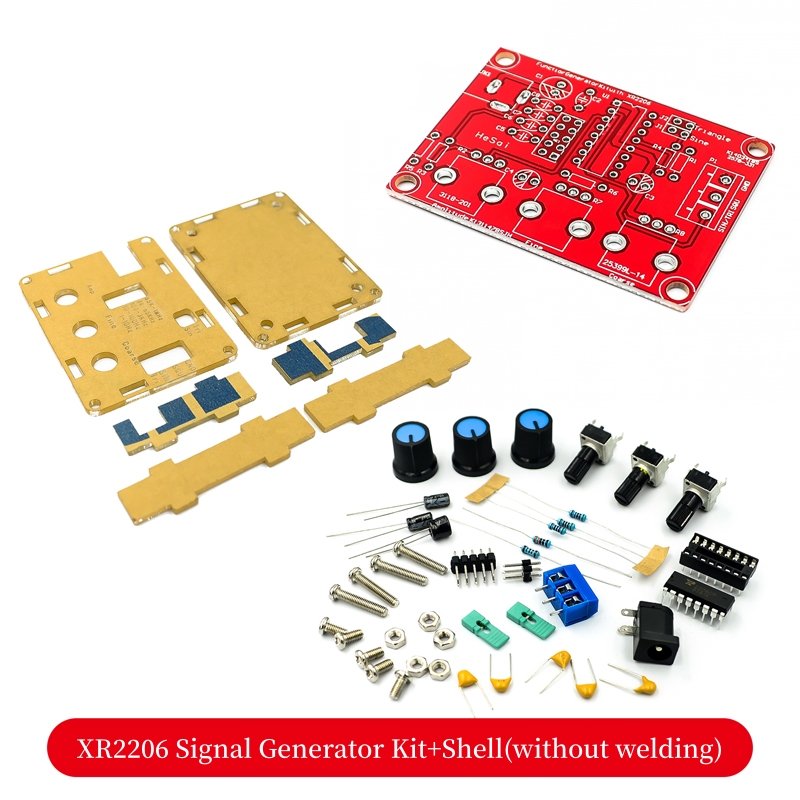

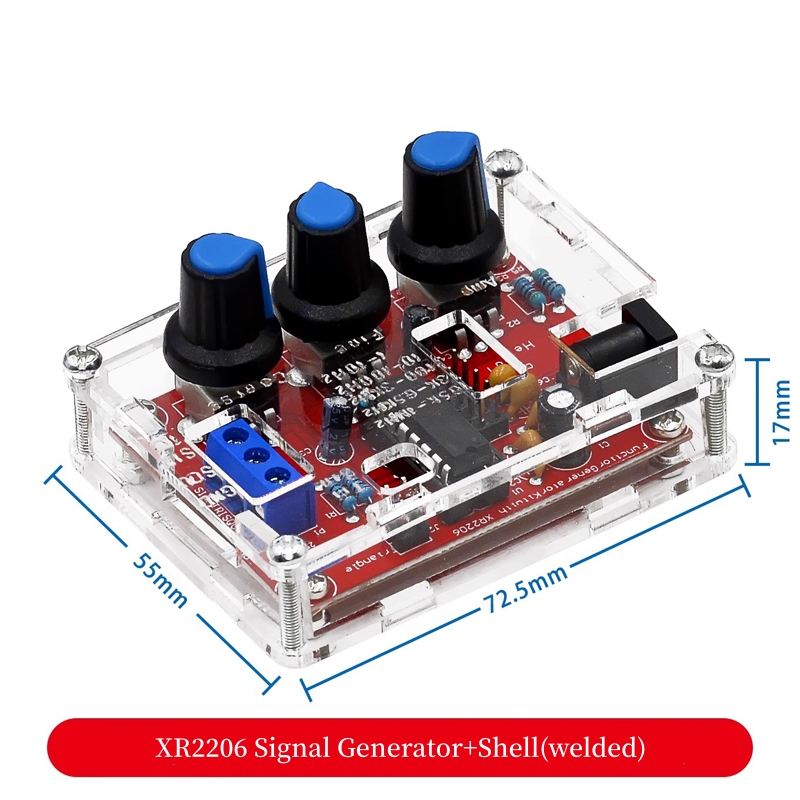

XR2206 High-Precision Signal Generator DIY Loose Parts With Shell Function Generator Sine Square Triangular WaveItem NO.: XR2206
-
Customized Requirements
- Quantity
-
-
- Product Name: XR2206 High-Precision Signal Generator DIY Loose Parts With Shell Function Generator Sine Square Triangular Wave
- Item NO.: XR2206
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: XR2206 , High-Precision Signal Generator , Sine Square Triangular Wave
- Creation Time: 2024-04-19
XR2206 High Precision Signal Generator
Circuit Characteristics:
● Can generate sine waves, triangular waves, and square waves
● The frequency can range from 1HZ-1MHz
● Frequency and amplitude adjustable;
● Five digit precision resolution;
● Frequency adjustment with coarse and fine tuning;
● Wide power supply range, can use external power supply 9-12V or 9V batteries;
● All direct plug-in components, with a small number of components and simple installation and debugging.
Parameters:
● Voltage supply: 9-12v DC input
● Waveform: square wave, sine wave, and triangle wave
● Impedance: 600 ohms+10%
● Frequency: 1Hz -1 MHz
● Sine wave
Amplitude: 0-3v, at 9v DC input
Distortion: Less than 1% (11000 people)
Flatness:+0.05db ± 1Hz -100 khz
● Square wave
Amplitude: 8v (no-load), input at 9v DC
Rise time: less than 50ns (11000)
Fall time: less than 30ns (11000)
Symmetry: less than 5% (11000)
● Triangular wave
Amplitude: 0-3v, at 9v DC input
Linearity: less than 1% (up to 100 khz) 10ma
