DCDC XL4015 Adjustable Step-down Module 4-38V 5-35V High Power 96% High Efficiency Low Ripple 5AItem NO.: MK00186

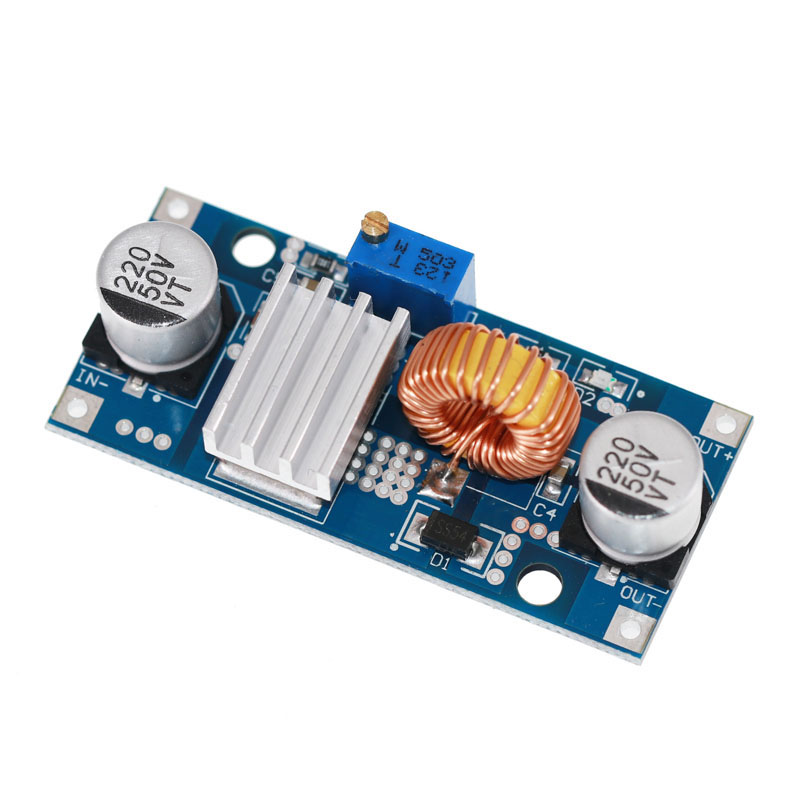

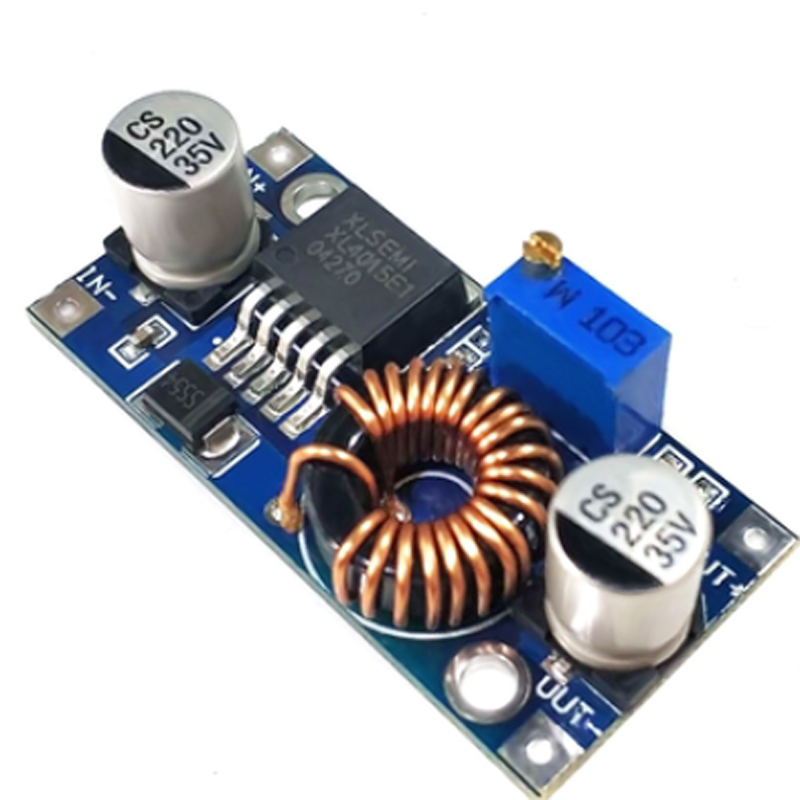

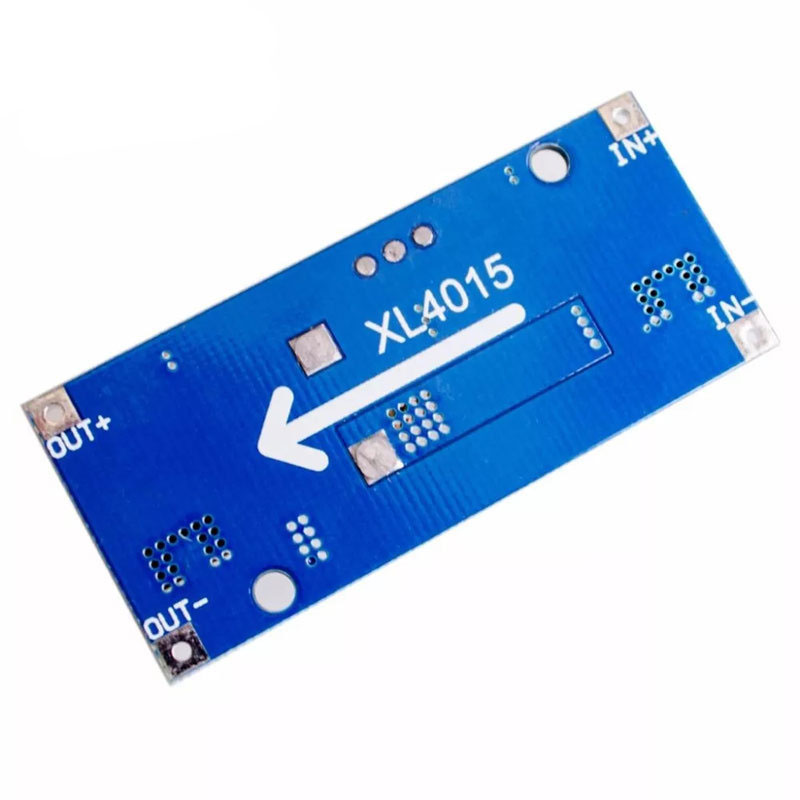

DCDC XL4015 Adjustable Step-down Module

Product Information:

The vast majority of 2596 on the market can achieve a blowing current of 3.0A, but in fact, it can also reach 1.8A, with a total power of around 15W. In many cases, the power cannot meet the requirements; This buck module can easily reach 4.5A and power up to 75W, with excellent cost-effectiveness!

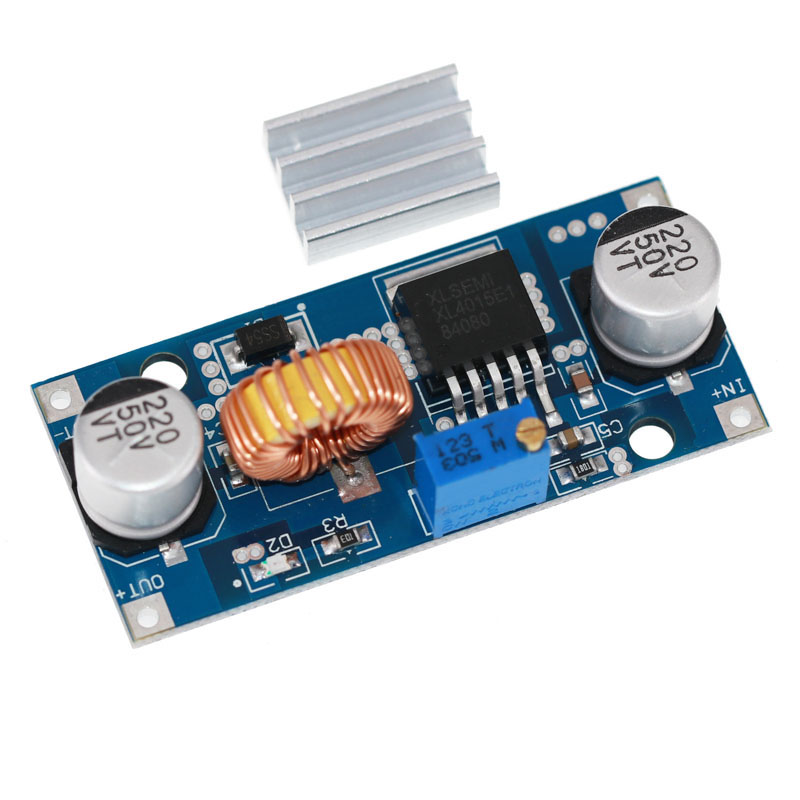

Module highlight: 5A high-power, efficient, and low ripple band power indicator light with complimentary heat sink!

Module Performance And Characteristics:

● Module nature: Non isolated buck module (BUCK)

● Input voltage: 4-38V (please try not to exceed 38V for input)

● Output voltage: 1.25-36V continuously adjustable

● Output current: 0-5A

● Output power: 75W

● Operating temperature: -40~+85 degrees Celsius

● Operating frequency: 180KHz

● Conversion efficiency: up to 96%

● Load adjustment rate: S (I) ≤ 0.8% (measured when the input is 24V, the output is 12V, and the load changes from 1 to 4.5A)

● Voltage adjustment rate: S (u) ≤ 0.8% (measured when the voltage changes from 18 to 32V when outputting 12V and 4A)

● Power indicator light: Yes

● Short circuit protection: Yes (limited current 8A)

● Overtemperature protection: Yes (automatic shutdown output after overtemperature)

● Input reverse protection: None, (if necessary, please connect a high current diode in series with the input)

● Installation method: 2 3mm screws

● Wiring method: Welding, V-IN as input, V-OUT as output

● Module size: length 54mm, width 23mm, height 15mm

Application Scope:

This module can be applied in the field of voltage reduction where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V vehicle mounted laptop power supplies, industrial equipment voltage reduction, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc.
