Home>Electronic Modules>Sensor Module>MCP2515 CAN Bus Module TJA1050 Receiver SPI Protocol 51 Microcontroller Program Routines
MCP2515 CAN Bus Module TJA1050 Receiver SPI Protocol 51 Microcontroller Program RoutinesItem NO.: MCP2515 CAN
US$ 3.58
-
Customized Requirements
- Quantity
-
Adding to cart succeed
MCP2515 CAN Bus Module TJA1050 Receiver SPI Protocol 51 Microcontroller Program Routines
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: MCP2515 CAN Bus Module TJA1050 Receiver SPI Protocol 51 Microcontroller Program Routines
- Item NO.: MCP2515 CAN
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Receiver , MCP2515 , CAN Bus Module , TJA1050
- Creation Time: 2024-04-15

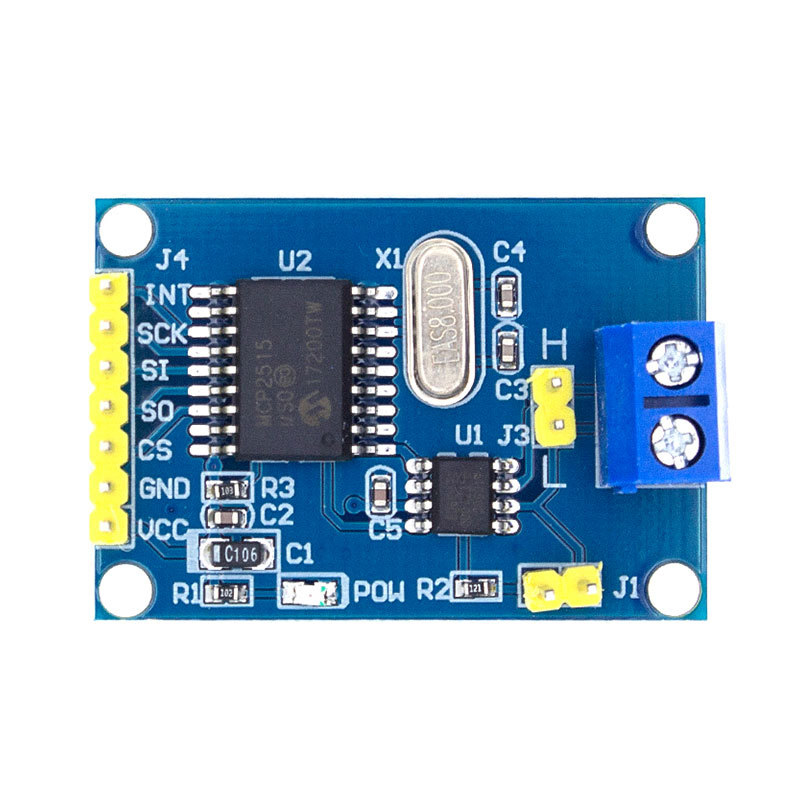

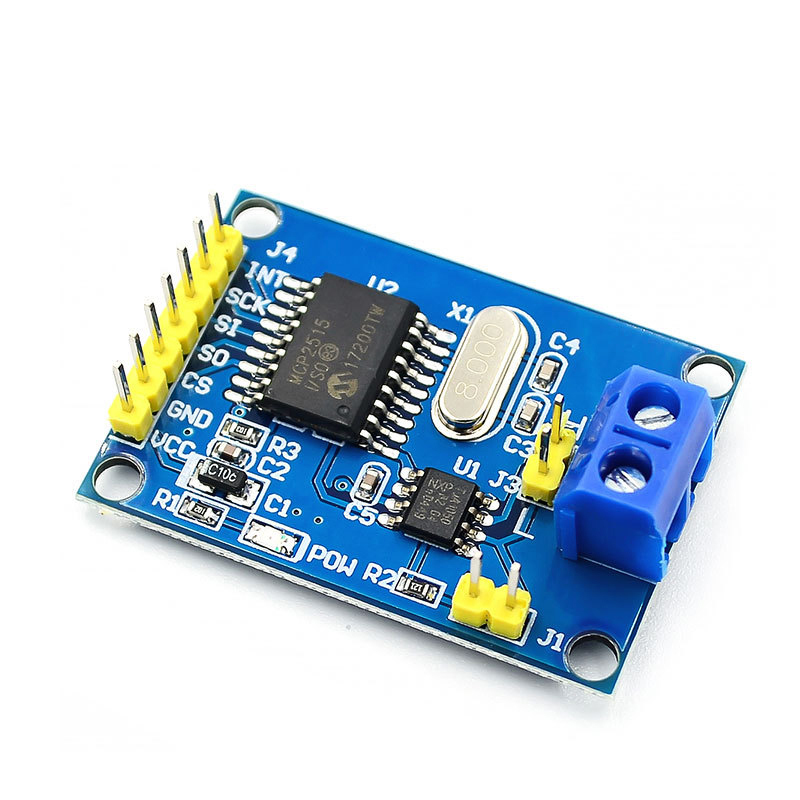

MCP2515 CAN Bus Module
Module Characteristics:
1. Supports CAN V2.0B technical specifications, with a communication rate of 1Mb/S
2. 0-8 byte long data field
3. Standard frame, extended frame, and remote frame
4. Module 5V DC power supply, SPI interface protocol control
5. 120 ohm terminal resistor. Impedance matching ensures driving capability and prevents signal emission during long-distance data transmission
6. Module size: 37.7mm x 27.5mm
7. Working current: typical value 5mA, standby current 1 microampere. Except for the power indicator light.
8. Working temperature: industrial grade -40 ℃ to 85 ℃
