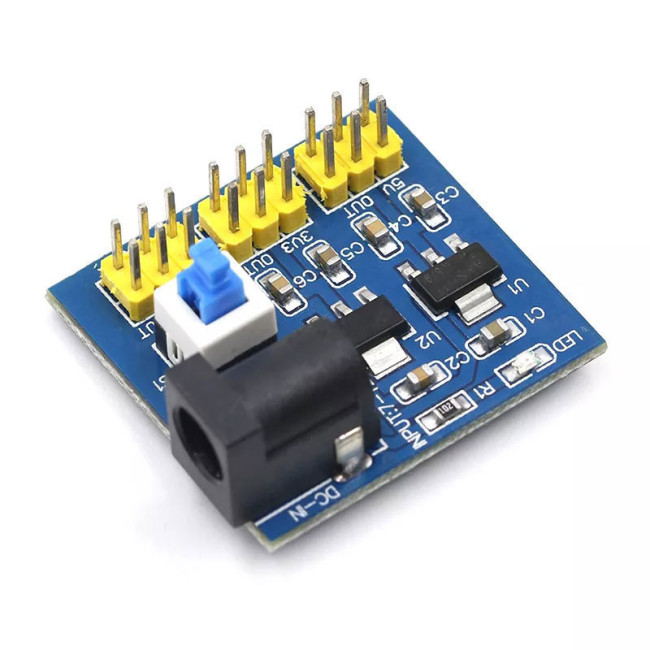

- Product Name: Power Module 3.3V 5V 12V Multiple Output Voltage Conversion Module DC-DC 12V to 3.3V 5V
- Item NO.: MK00723
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Power Module , DC-DC , 3.3V 5V 12V , Multiple Output , Voltage Conversion Module , 12V to 3.3V 5V
- Creation Time: 2024-04-11
Voltage Conversion Module3.3V 5V 12V Multiple Output

Product Description:

1 One input: DC 6V--12V (The input voltage must be more than 1V higher than the output voltage.)

2 Three-way output: 3.3V (+-0.2v error), 5.0V (+-0.2v error), 800mA (load current cannot exceed 800ma), 12V (input 12V directly to output)

3 Double-sided design, beautiful layout;

4 The input and output use multiple pin headers, which is convenient for use and connection;

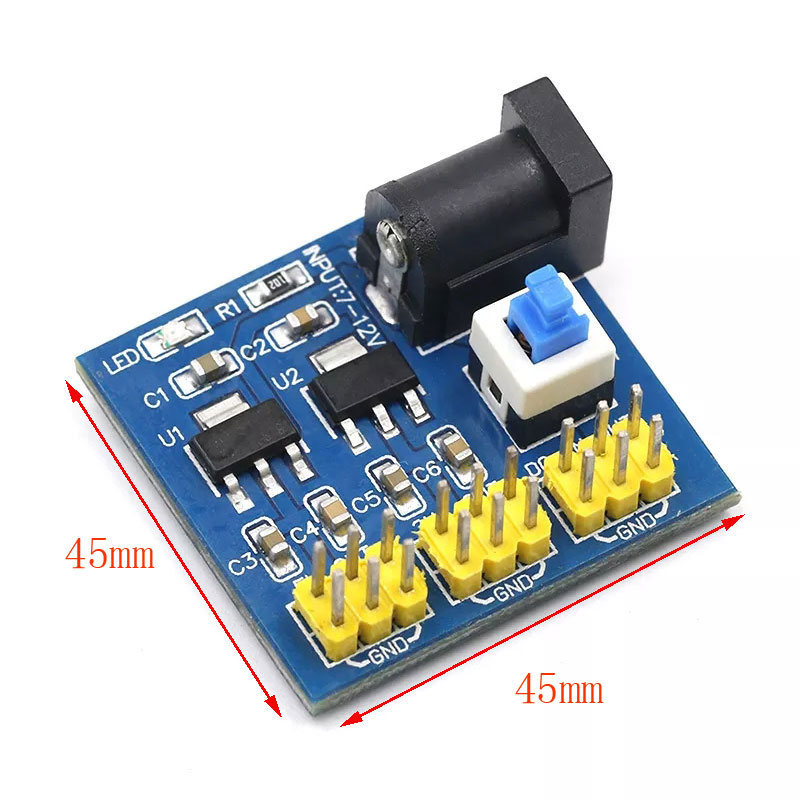

5 PCB board size: 45mm*45mm

6 with power indicator (red)

Shipping List:

3.3V 5V 12V multiple output voltage conversion module 1 (test passed)
