XH-M405 DC-DC Voltage Regulation Module XL4016 External Potentiometer 8A Pressure Regulating Plate

XH-M405 DC-DC Voltage Regulation Module XL4016 External Potentiometer 8A Pressure Regulating PlateItem NO.: XH-M405

US$ 8.44
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
XH-M405 DC-DC Voltage Regulation Module XL4016 External Potentiometer 8A Pressure Regulating Plate
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

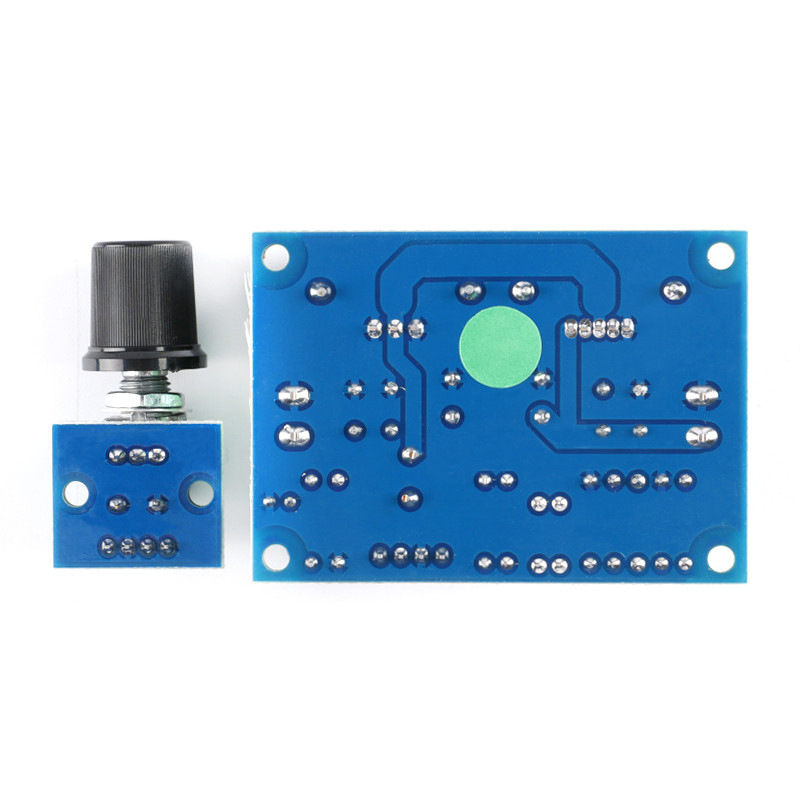

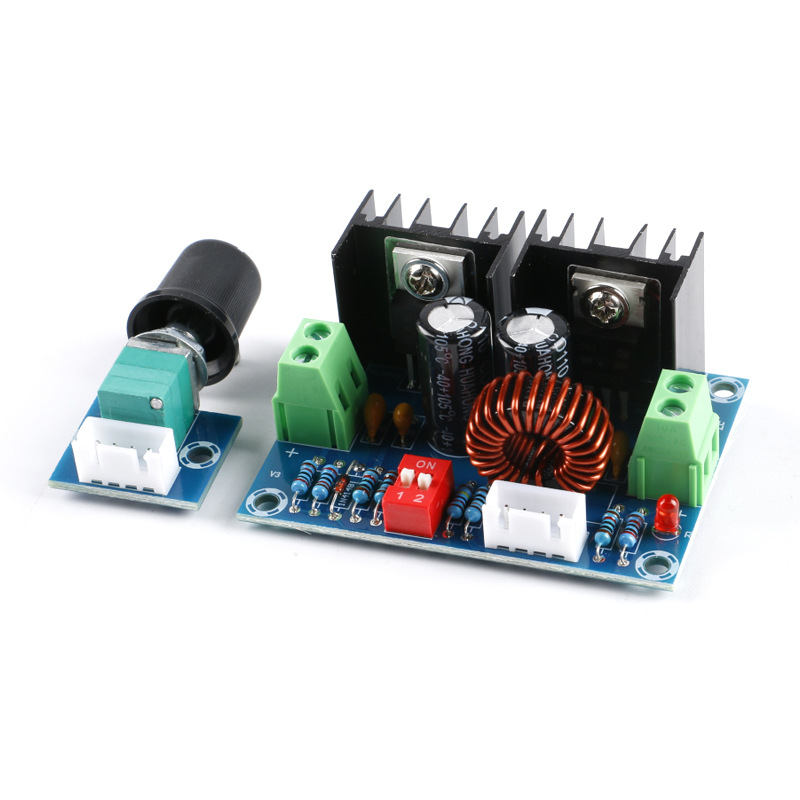

  • XH-M405 DC-DC Voltage Regulation Module



    Product Introduction:



    Using original DIP packaging XL4016 voltage regulator with 100A dual rectifier bridge and large energy storage inductor, it is suitable for direct current

    The power PWM voltage regulation is redundant. The adjustment part adopts a direct adjustment knob, which facilitates the operator to adjust the voltage

    Embedded installation greatly increases the application scope, and the maximum output current can reach 8A



    Main parameters:



    Product name: DC voltage regulator

    Product model: XH-405

    Voltage regulation method: PM modulation

    Input voltage: DC4-40V

    Output range: DC1.25-36V

    Maximum current: 8A

    Maximum power: 200

    Conversion efficiency: 94%

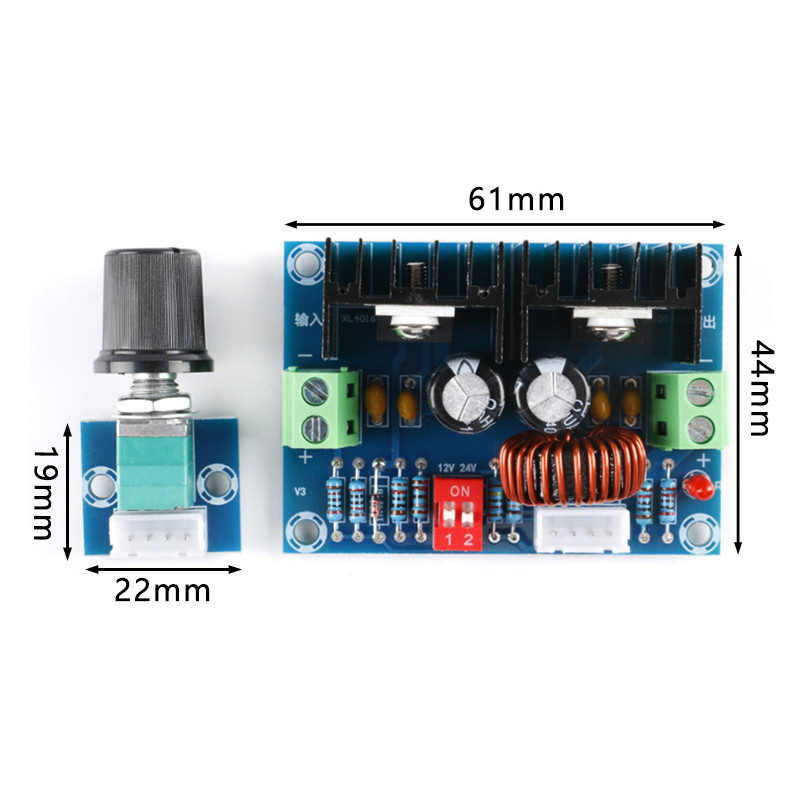

    Appearance size: 61 * 43 * 27mm

    Knob size: 13.5mm

    Weight: 56 grams
