0.91 inch OLED Display 12832 LCD IIC Display Device Compatible With 3.3V-5V Blue And WhiteItem NO.: OLED0.91
-
Customized Requirements
- Quantity
-
-
- Product Name: 0.91 inch OLED Display 12832 LCD IIC Display Device Compatible With 3.3V-5V Blue And White
- Item NO.: OLED0.91
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Display Module
- Tag: 0.91 inch , OLED , Display , 12832 LCD , IIC
- Creation Time: 2024-03-27

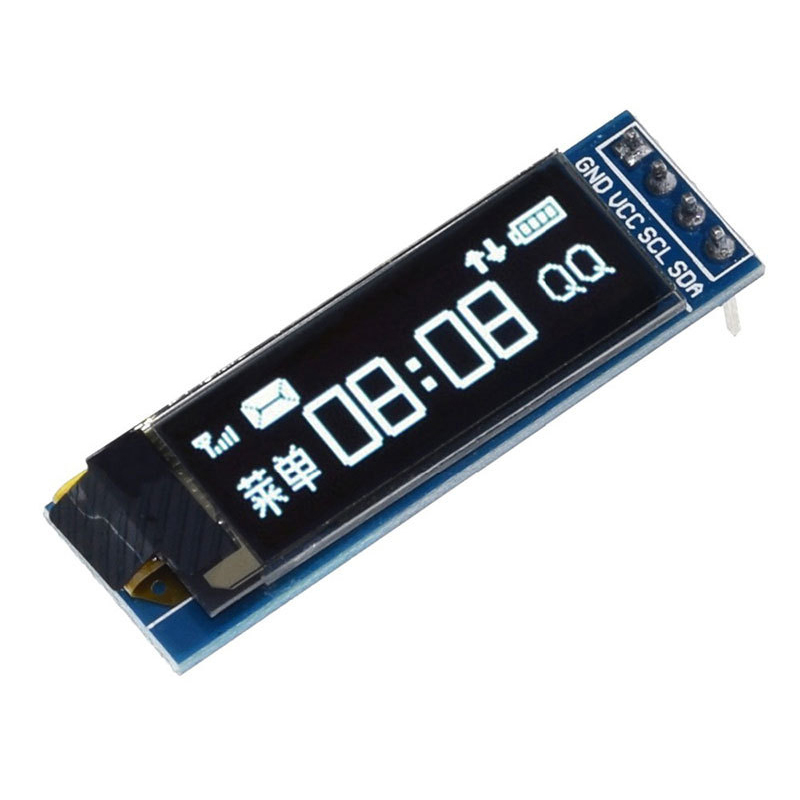

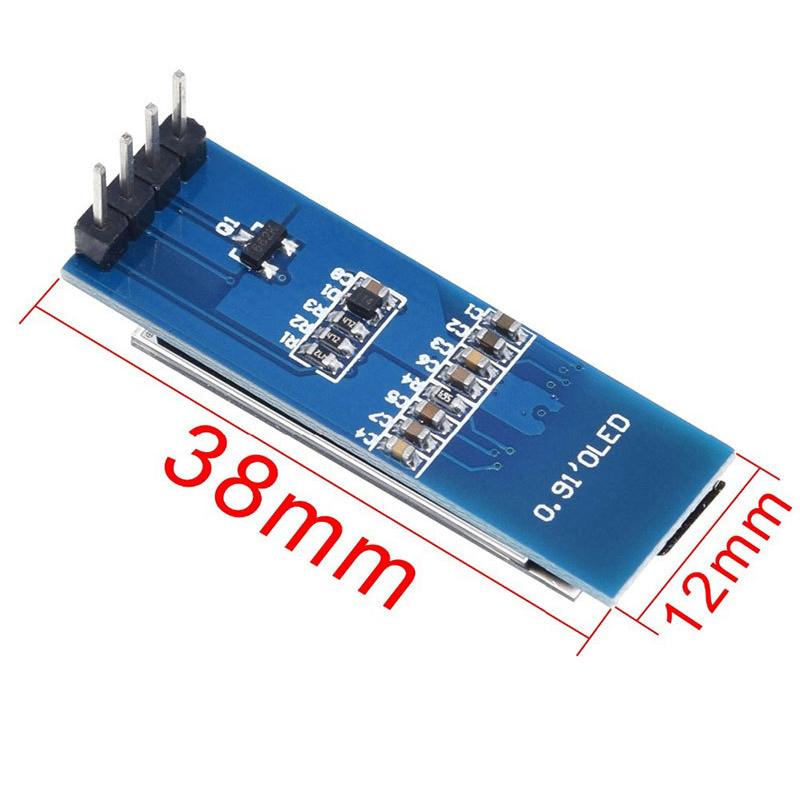

0.91 inch OLED Display
Module Overview:
The 0.91 LCD module is a controller named SSD1306 with a resolution of 128X32 dot matrix and an OLED display module, available in blue and white. Adopting 3.3V power supply: VCC=3.3V-5V, supporting communication methods such as 4-wire I2C. The factory default setting is IIC communication.
Module Parameters:
● Product name: 0.91 inch OLED display module
● Color options: blue light, white light
● Dot matrix: 128x32
● Drive IC: SSD1306
● Power supply voltage: 3.3v~5V
Interface Definition:
1 pin: GND (ground wire)
2 pins: VCC (power cord)
3 feet: SCL (clock line)
4-pin: SDA (data cable)
