- Product Name: 0.96 inch 6-Pin OLED LCD Display Module IIC SPI Communication 12864 Blue/White/Yellow Blue Dual Color
- Item NO.: OLED0.96-6PIN
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Display Module
- Tag: OLED , IIC , 0.96 inch , 12864 , 6-Pin , LCD Display Module
- Creation Time: 2024-03-27
0.96 inch OLED Display Screen 6-Pin

Main Parameters:

1. High resolution; 128 * 64 (with the same resolution as 12864LCD, but the OLED screen has more pixels per unit area).

2. Wide viewing angle:>160 degrees.

3. Low power consumption: 0.04W during normal display.

4. Wide power supply range: DC 3.3V~5V

5. Industrial grade: Working temperature range: -30 ° C~70 ° C.

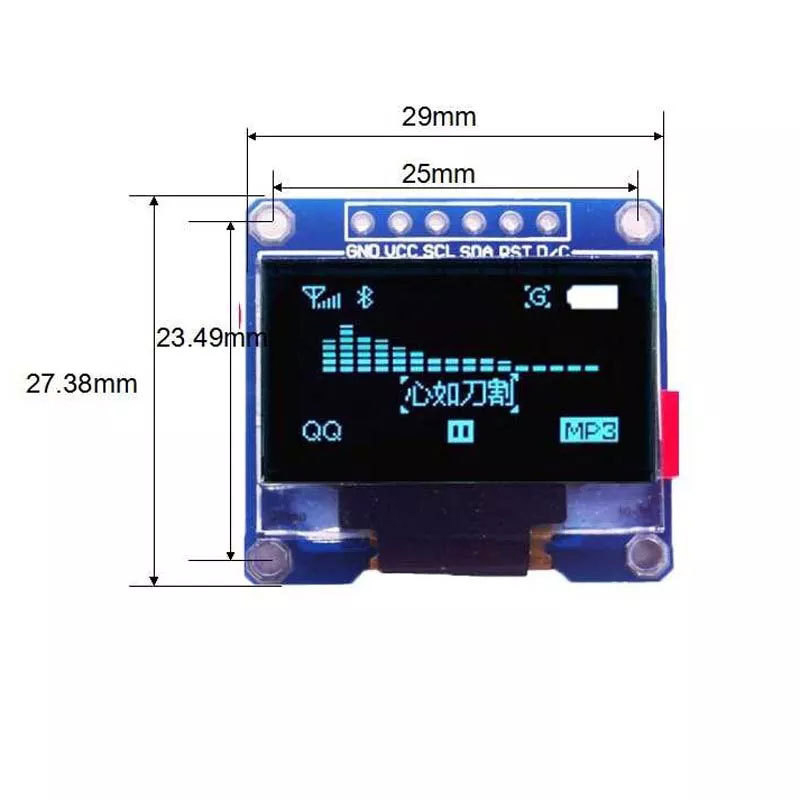

6. Small size: 29mm * 27mm

7. Communication method: IIC.

8. Brightness and contrast can be controlled through program instructions.

9. OLED screen internal driver chip: SSD1306

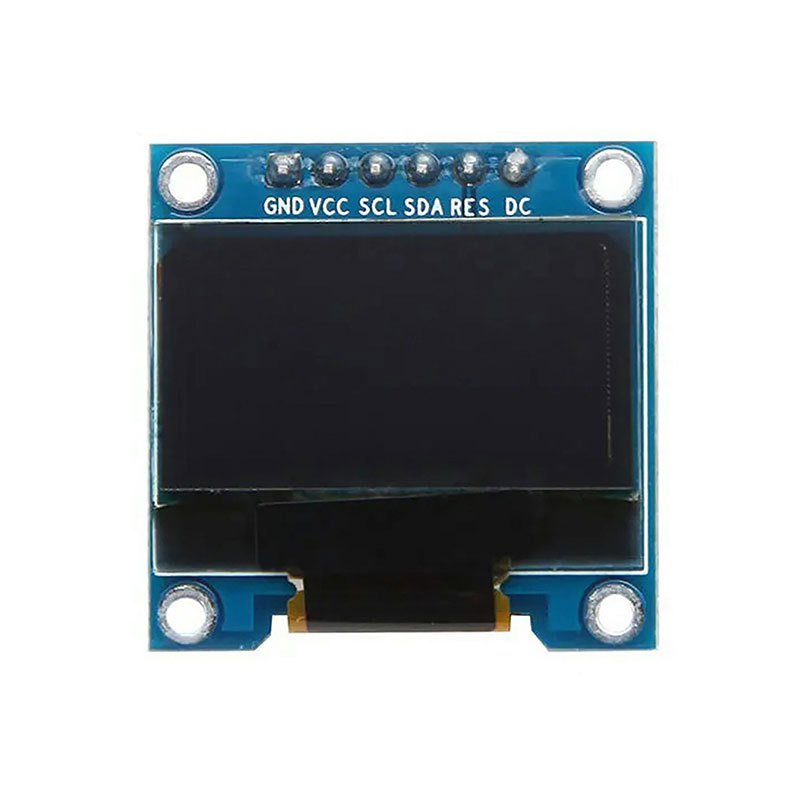

Pin Definition:

1. D/C: Data or command switching.

2. RST: Reset.

3. SDA: Bidirectional data cable.

4. SCL: Clock signal line.

5. VCC: Power supply positive 3.3V~5V.

6. GND: Negative power supply.
