20A Forward And Reverse DC Governor 12V24V36V48V60V Pulse Width Motor Driver PWM Control Board with SwitchItem NO.: MK00104
-
Customized Requirements
- Quantity
-
-
- Product Name: 20A Forward And Reverse DC Governor 12V24V36V48V60V Pulse Width Motor Driver PWM Control Board with Switch
- Item NO.: MK00104
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 20A , Forward And Reverse , DC Governor , 12V24V36V48V60V , Pulse Width Motor Driver , PWM Control Board , with Switch
- Creation Time: 2024-04-09

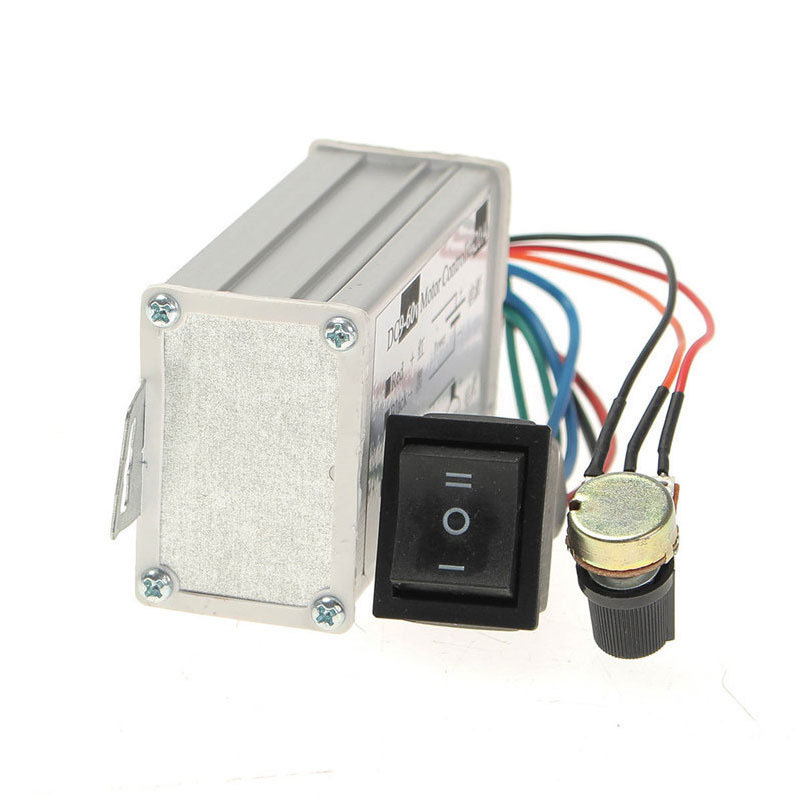

20A Forward And Reverse DC Governor
Technical Parameters:
● Input voltage: DC9-60V
● Output voltage: linear under load
● Output current: 0-20A
● Continuous power: 12600W
● Speed regulation type: current regulation
● Speed regulation mode: Potentiometer (linear)
● Speed regulation range: 0-100%
● Control frequency: 25KHZ
● Forward and reverse rotation: supported
● Suitable for motors: DC brushless

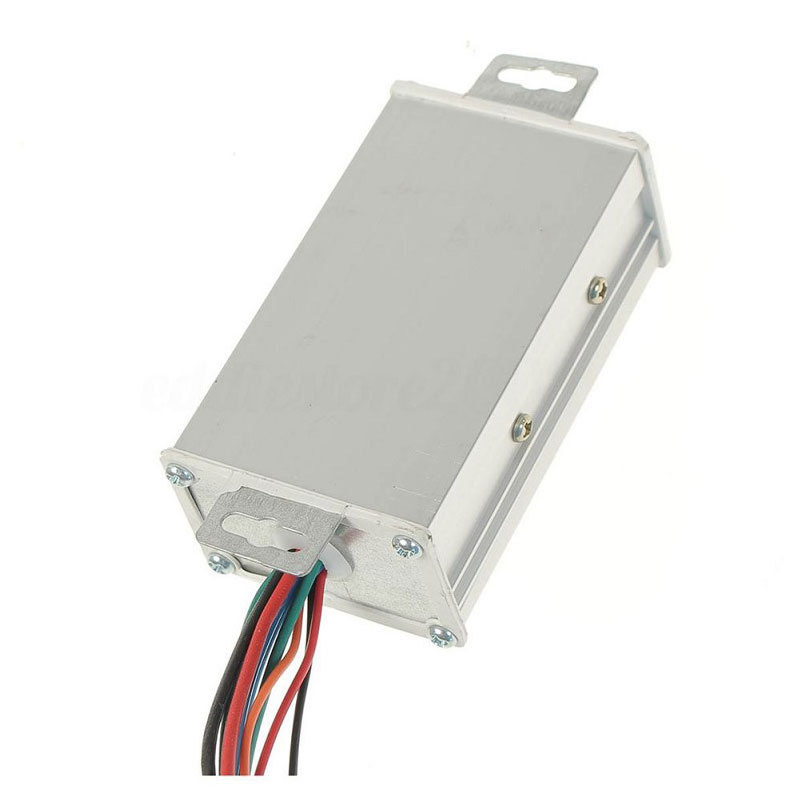

● Module size: length * width * height 92MM * 52MM * 36MM
● Product net weight: 155 grams
● According to installation size: Centre-to-centre distance 104MM
● Mounting hole of Potentiometer: 7MM
● Attention: Do not switch to another direction while running at high speed. It should not be used on electric vehicles or on the UNATT reduction motor.
Wiring Method:
● Red wire connection: positive power supply+black wire connection: negative power supply-
● Blue wire connection: motor positive+green wire connection: motor negative-
