Home>Electronic Modules>Power Module>PWM DC Motor Governor 12V24V30V 120W CCM5N2 Governor With Fuse To Solve The Problem Of Motor Low Speed Sound

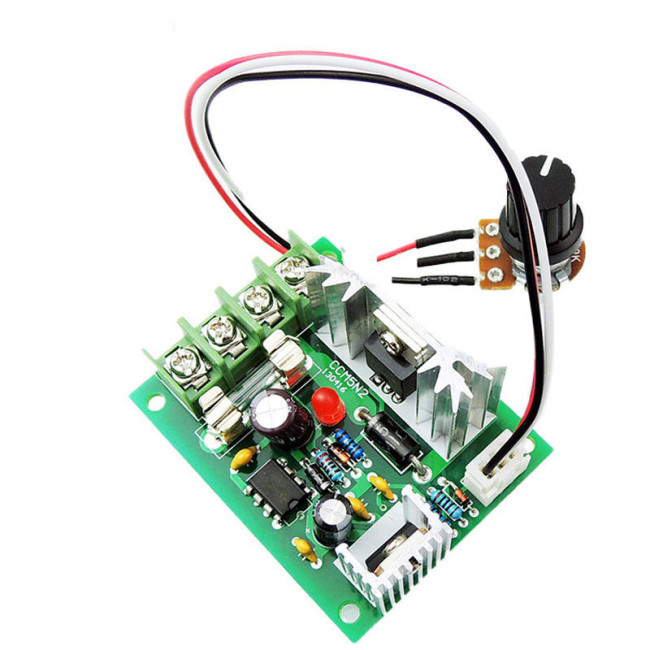

PWM DC Motor Governor 12V24V30V 120W CCM5N2 Governor With Fuse To Solve The Problem Of Motor Low Speed Sound

PWM DC Motor Governor 12V24V30V 120W CCM5N2 Governor With Fuse To Solve The Problem Of Motor Low Speed SoundItem NO.: CCM5N2

US$ 7.96
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
PWM DC Motor Governor 12V24V30V 120W CCM5N2 Governor With Fuse To Solve The Problem Of Motor Low Speed Sound
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • CCM5N2 PWM DC Motor Governor 12V24V30V 120W



    Product Features:



    ● 120W DC one-way governor

    ● Realize 0% -100% PWM pulse width stepless speed regulation

    ● Solve the problem of motor low speed buzzing sound, quiet and efficient

    ● Attention: If forward and reverse control is required, an external forward and reverse switch can be connected

    ● Equipped with 10A fuse (5mm * 20mm size), power reverse protection, overvoltage and overcurrent protection



    Technical Parameters:



    ● Model: CCM5

    ● Working voltage: DC 10V-30V

    ● Rated current: 5A

    ● Maximum current: 10A

    ● Speed regulation range: 0% -100%

    ● Control power: 12V * 5A=60W, 24V * 5A=120W 30V * 5A=150W

    ● Potentiometer: resistance B10K, wire length 20CM, opening 8MM

    ● The output voltage is 0-100% of the input voltage

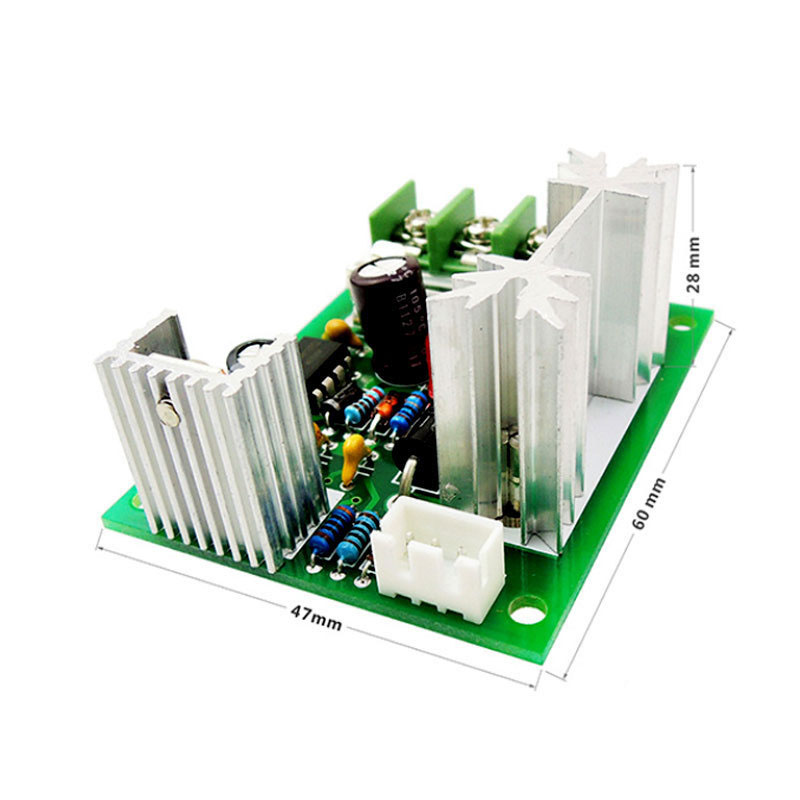

    ● Size: 60mm * 47mm * 28mm

    ● Weight: 47g

    ● PWM frequency: 13KHz
