CCM6N PWM DC Motor Speed Controller 6V12V24V30V DC Forward and Reverse Switch

CCM6N PWM DC Motor Speed Controller 6V12V24V30V DC Forward and Reverse SwitchItem NO.: CCM6N

US$ 7.21
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
CCM6N PWM DC Motor Speed Controller 6V12V24V30V DC Forward and Reverse Switch
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • CCM6N PWM DC Motor Speed Controller



    Technical parameters:



    Model: CCM6N

    Working voltage: DC 6V-30V

    Control power: 6V * 6A=36W, 12V * 6A=72W 30V * 6A=180W

    Rated current: 6A

    Maximum current: 10A

    Speed regulation range: 0% -100%

    PWM frequency: 16KHZ

    Potentiometer: resistance B10K, wire length 20cm, opening 8mm

    The output voltage is approximately 0-100% of the input voltage

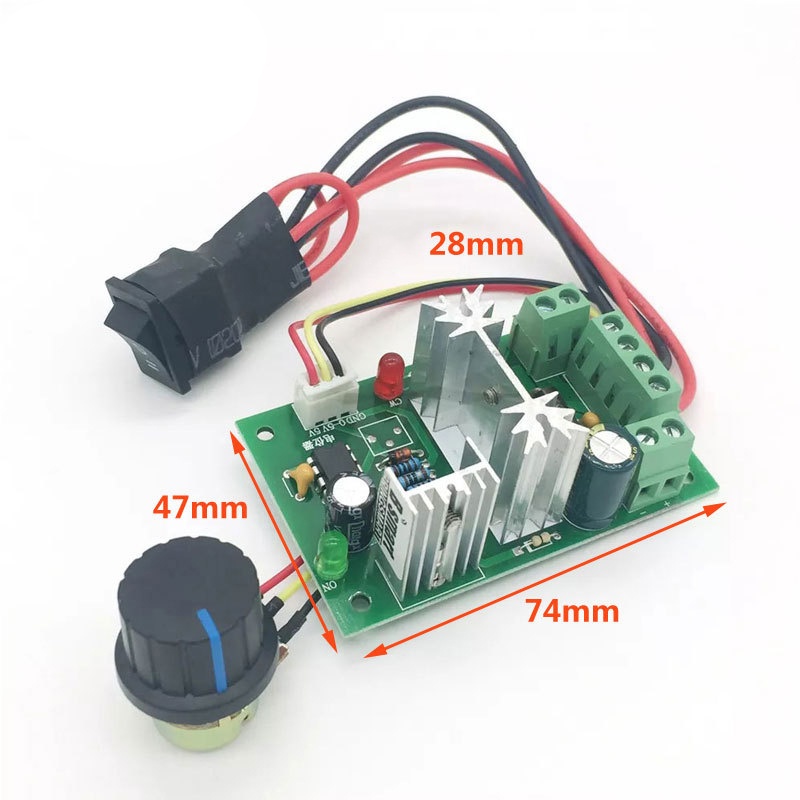

    Size: 74mm * 47mm * 28mm

    Weight: 68g



    Notes:



    1. The input of the DC motor speed controller is DC power, and it should not be directly connected to AC power (such as household 220 AC power), otherwise it will burn out!!!

    2. Do not reverse connect the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.

    3. The motor can be operated without distinguishing between positive and negative directions. When the running direction does not match the expected direction, the direction can be changed by adjusting the wire sequence.

    4. Adjusting the potentiometer knob can change the duty cycle of the governor output, thereby changing the motor speed.
