Raspberry Pi High-Precision Real-Time Clock Module DS3231 Is Applicable To Arduino 3.3V 5VItem NO.: DS3231RasPi
-
Customized Requirements
- Quantity
-
-
- Product Name: Raspberry Pi High-Precision Real-Time Clock Module DS3231 Is Applicable To Arduino 3.3V 5V
- Item NO.: DS3231RasPi
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: Real-Time Clock Module , DS3231
- Creation Time: 2024-04-16

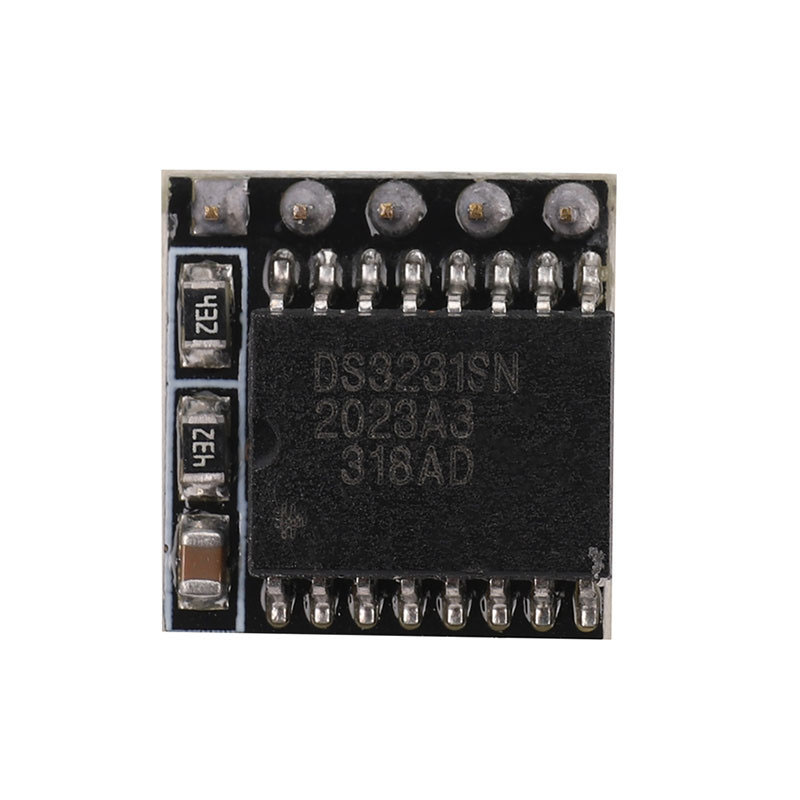

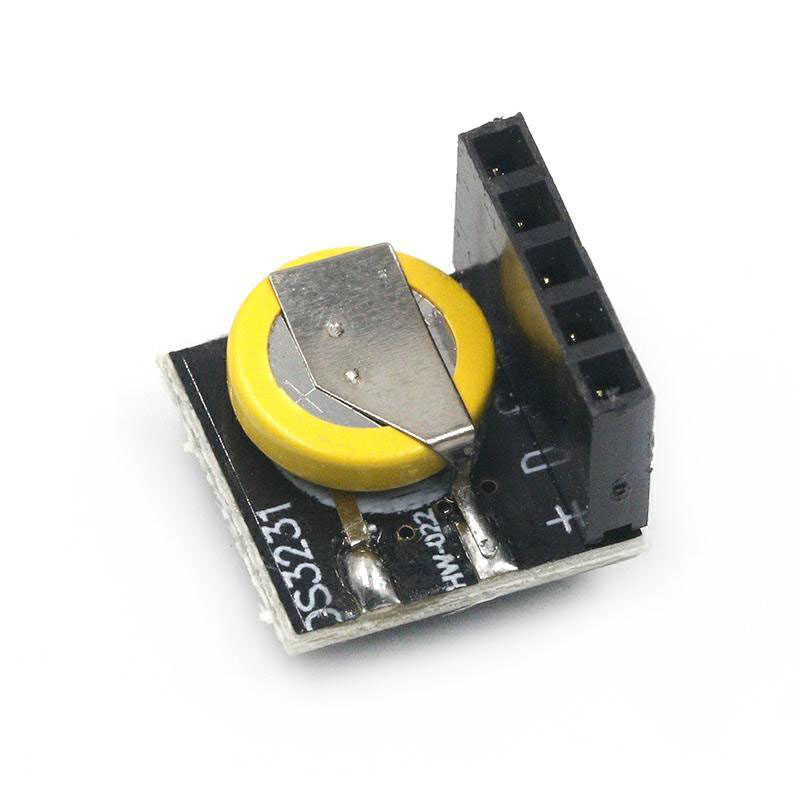

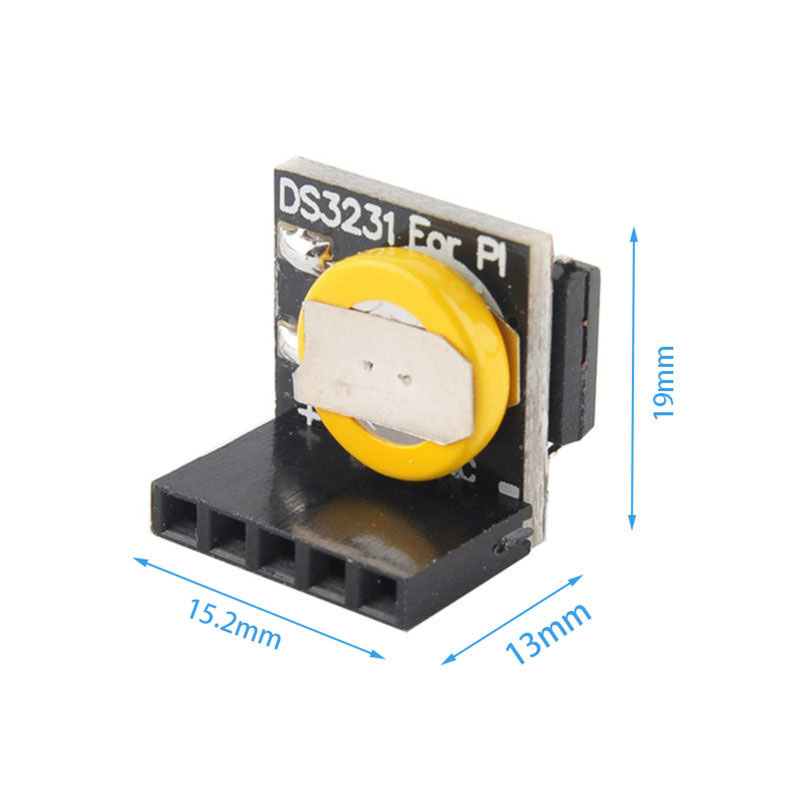

Raspberry Pi Real-Time Clock Module DS3231
Summary:
Raspberry Pi high-precision clock module DS3231. Note: Arduno motherboard can also use this module. The module itself can adapt to 3.3V and 5V systems without level conversion, which is super convenient!
Characteristic:
1. Within the temperature range of - 40 ° C to+85 ° C, the timing accuracy shall be maintained at ± 5ppm (± 0.432 seconds/day)
2. Provide battery backup for continuous timing
3. Low power consumption
4. Device package and function are compatible with DS3231
5. The complete clock calendar function includes seconds, minutes, hours, weeks, dates, months and years, and provides leap year compensation valid until 2100
6. Two calendar alarm clocks
7.1 Hz and 32.768 kHz output
8. Reset output and button dithering input
9. High-speed (400kHz) I2C serial bus
10.+2.3V to+5.5V supply voltage
11. Digital temperature sensor with accuracy of ± 3 ° C
12. Operating temperature range from - 40 ° C to+85 ° C
13.16-pin SO (300mil) package
Package Include:
1PCS DS3231 clock module
