- Product Name: 3-Piece Single Chip Infrared Remote Control Module+Receiver HX1838+NEC Coded Infrared Remote Controller
- Item NO.: HX1838White
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: Infrared Remote Control Module+Receiver , HX1838+NEC , Coded Infrared Remote Controller
- Creation Time: 2024-04-17

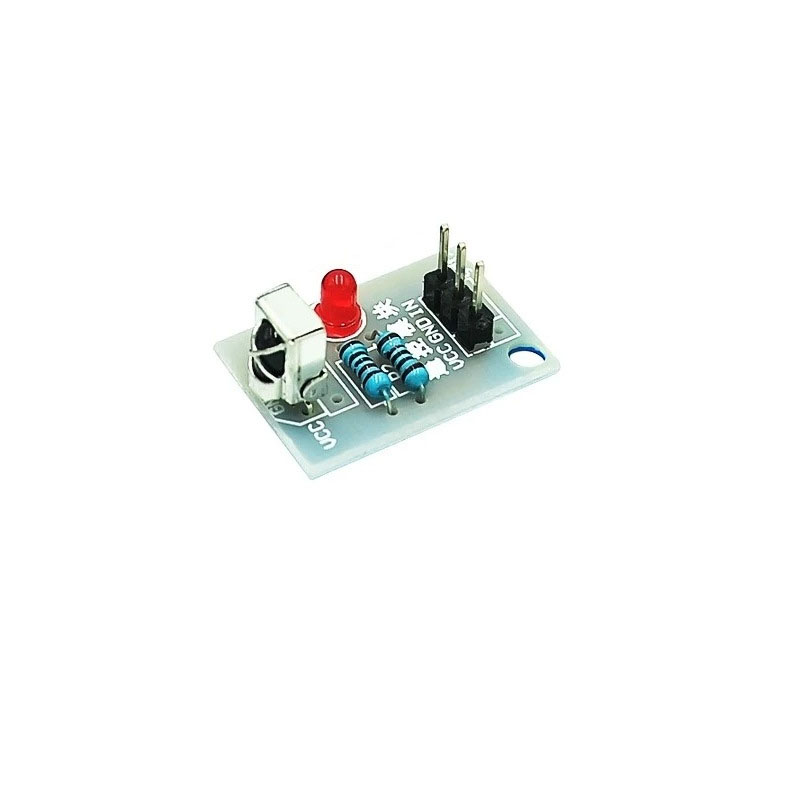

Infrared Remote Control Module HX1838 3-Piece Set

Product Information:

C51 microcontroller learning and development board experiment, HX1838 remote control module, DIY electronic experiment kit! The module adopts a double-sided circuit board solder joint design and a spare I/O port design!! Send 3 pieces of 20 cm DuPont wire

The theoretical testing distance of the kit is about 5-8 meters, but the actual application depends on the surrounding environmental factors and intermediate barriers (such as membranes, glass, obstructions, or other material barriers) when you use it. The receiver head uses HX1838, with a power operation indicator, and can receive any remotely encoded data at a 38K frequency!

RS232 serial port display infrared remote controller key value:

Product Parameters:

1.The sensor adopts HX1838, with high sensitivity

2. Working voltage 5V

3.Output form: digital output

Module Interface Description:

1. VCC is externally connected to a 3.3V-5V voltage (can be directly connected to a 5v microcontroller and a 3.3v microcontroller)

2 GND external GND

3 IN external microcontroller I/O port, I/O port has been designed with a 10K pull-up resistor
