LPS22HB Atmospheric Pressure Module Barometric Pressure Sensor Module Barometric Pressure Gauge SensorItem NO.: LPS22HB
-
Customized Requirements
- Quantity
-
-
- Product Name: LPS22HB Atmospheric Pressure Module Barometric Pressure Sensor Module Barometric Pressure Gauge Sensor
- Item NO.: LPS22HB
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: LPS22HB , Atmospheric Pressure Module , Barometric Pressure Sensor Module , Barometric Pressure Gauge Sensor
- Creation Time: 2024-05-07
LPS22HB Atmospheric Pressure Module
Product Information:
LPS22HB is the ST's air pressure module, with a measured air pressure range of 0.26 * 10 ^ 5pa -- 1.26 * 10 ^ 5pa,
So what? Converted to altitude, it can measure an altitude of 500 meters from the seabed to 9000 meters in the air, and the accuracy can reach 10 cm (1 pa resolution). This is very suitable for floor positioning, weather stations, GPS, clothing, and other equipment.
Product Parameters:
● Operating temperature: - 40 -- - 85 ℃
● Working voltage: 1.7-3.6V
● Power consumption:~~4uA
● 24bit pneumatic output
● Built-in 16bit temperature sensor
● Communication interface with MCU is SPI/IIC
● Full-pressure plastic packaging, dustproof
● Sampling rate: 1HZ -- 75HZ

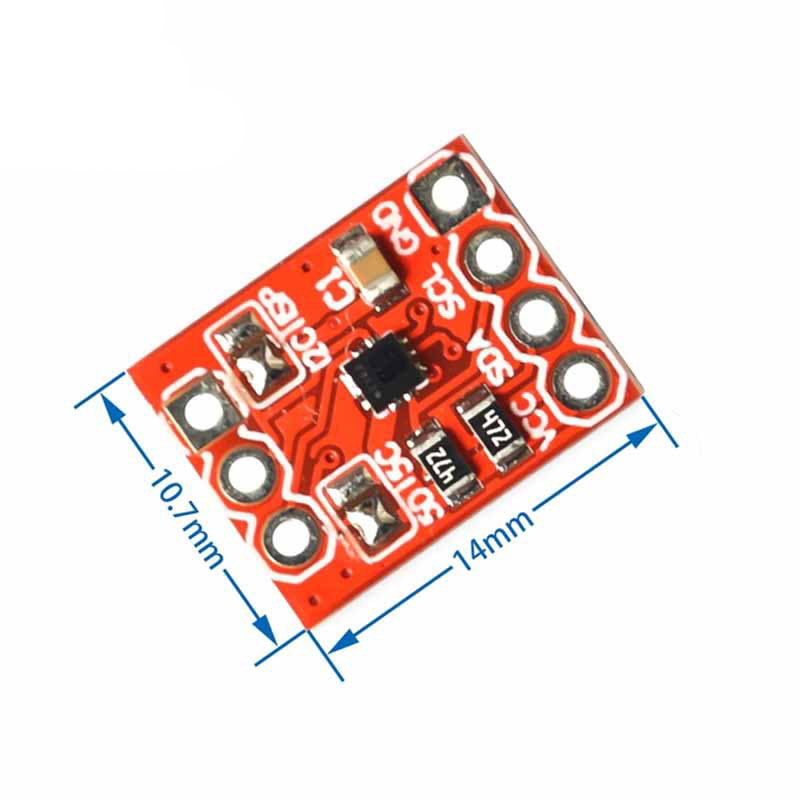

● Red board size: 14x10.7mm

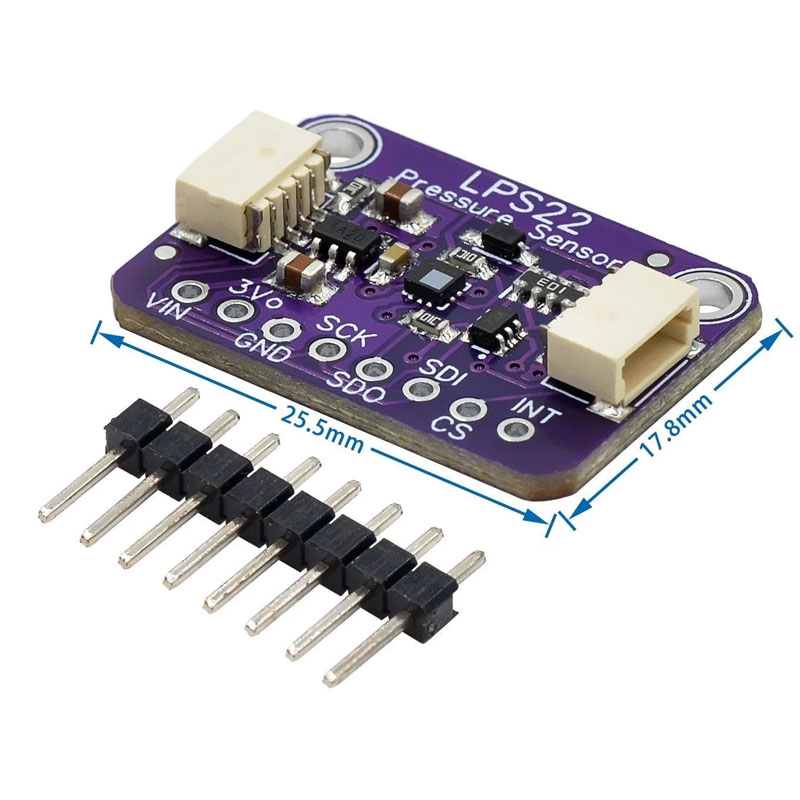

● Purple plate size: 25.5x17.8mm
