5-way Black and White Line Recognition Sensor Module Tracking Intelligent Car Infrared Sensor TCRT5000Item NO.: 5-way TCRT5000
-
Customized Requirements
- Quantity
-
-
- Product Name: 5-way Black and White Line Recognition Sensor Module Tracking Intelligent Car Infrared Sensor TCRT5000
- Item NO.: 5-way TCRT5000
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Other Electronic Accessories > Intelligent Car Accessories
- Tag: 5-Way , TCRT5000 , Black and White Line Recognition Sensor Module , Tracking , Intelligent Car Infrared Sensor
- Creation Time: 2024-03-28

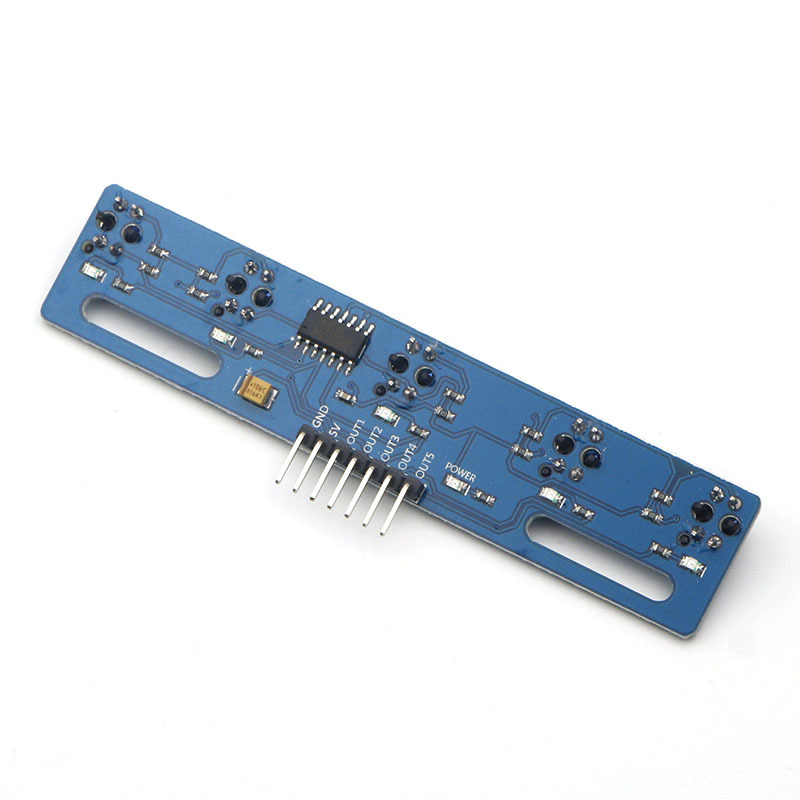

5-way Infrared Sensing TCRT5000
Product Description:
TCRT5000 is adopted as the sensor, which is detected by infrared light, with high sensitivity, anti-interference and stable performance.
Product Parameters:

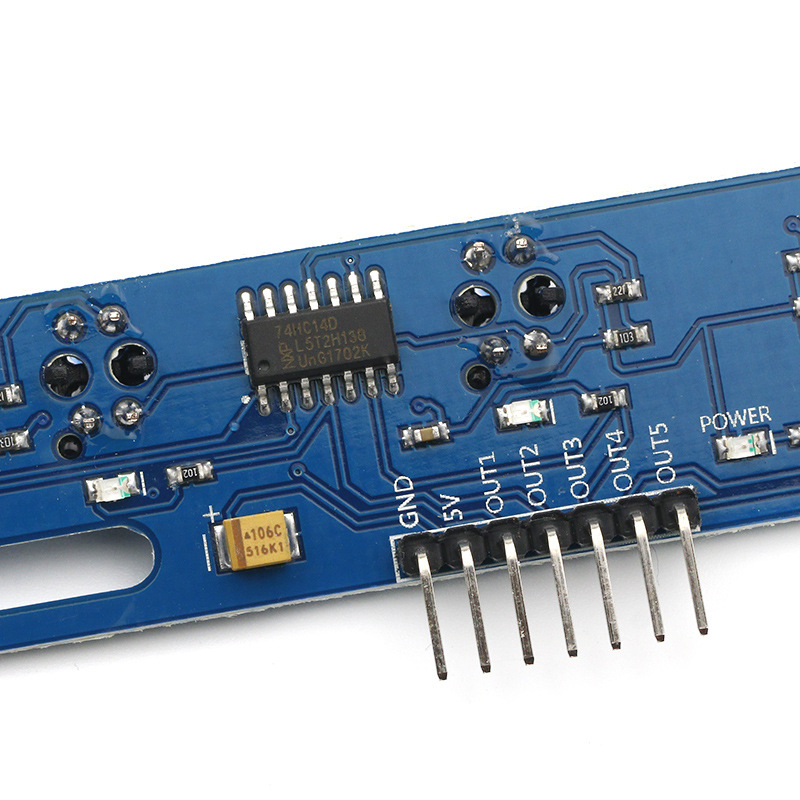

● Chip used: 74HC14D
● Working voltage: 3.3V~5V
● Output mode: digital signal
● Measuring distance: 1CM~1.5CM
● Detection probe: TCRT5000L
● Detection signal: black line detection outputs low level, white line detection outputs high level, and out of detection range outputs low level
● LED status: the black line LED is off and the white line LED is on
Wiring Mode:
1. VCC: is the positive input port of power supply, which can access 3.3V~5V voltage
2. GND: power negative input port
3. OUT1~5: signal output port, which links the I/O port of MCU
