ZMCT103C Current Sensor Active Output Single Phase AC Current Transformer Module 5A Range

ZMCT103C Current Sensor Active Output Single Phase AC Current Transformer Module 5A RangeItem NO.: ZMCT103C Current Transformer

US$ 2.74
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
ZMCT103C Current Sensor Active Output Single Phase AC Current Transformer Module 5A Range
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

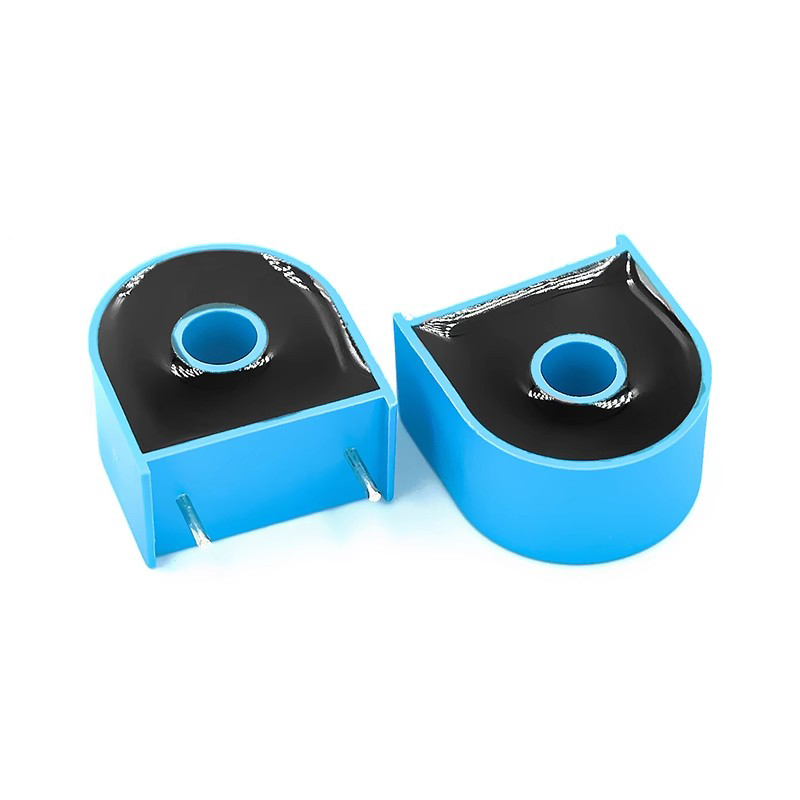

  • ZMCT103C Current Sensor



    Product Information:

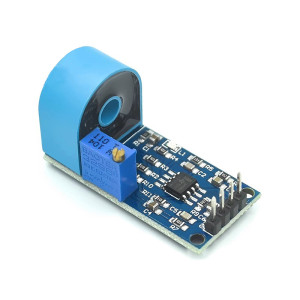

    The 5A range single-phase AC active output current transformer module is equipped with the ZMCT103C series small high-precision current transformer and high-precision operational amplifier circuit, which facilitates signal acquisition of AC currents within 5A.



    Product Features:

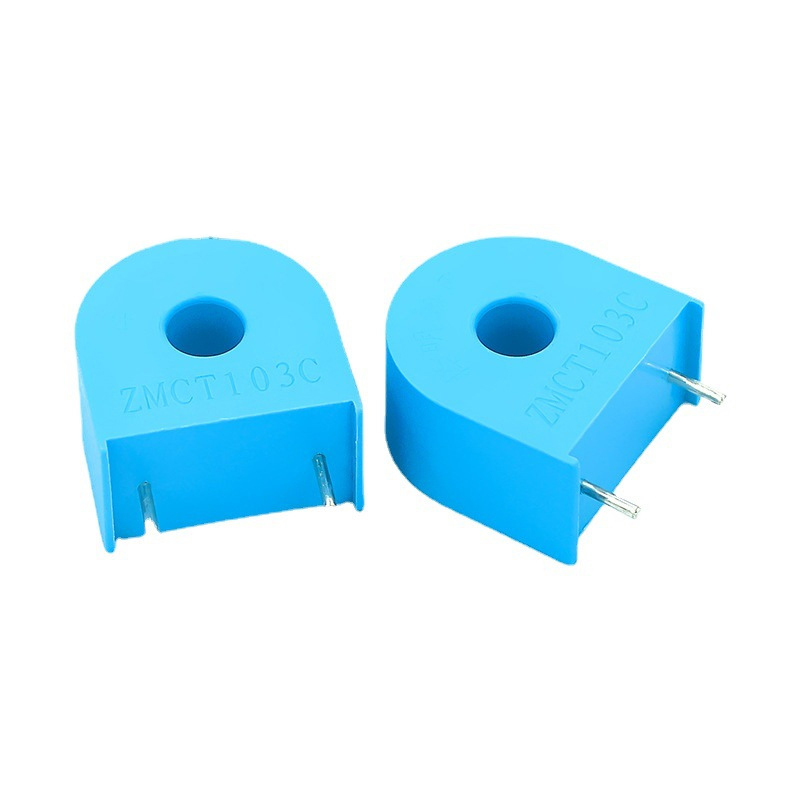

    1. On board precision miniature current transformer

    2. On board high-precision operational amplifier circuit, with functions such as precise sampling and appropriate compensation for signals

    3. The module can measure AC current within 5A, and the corresponding output analog quantity can be adjusted

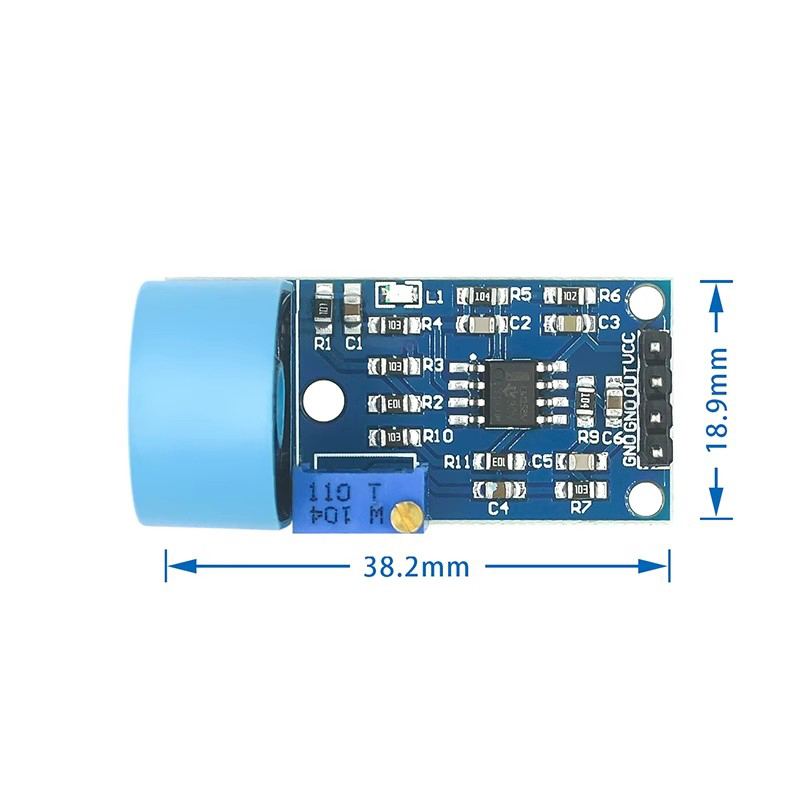

    4. PCB board size: 38x18.5mm



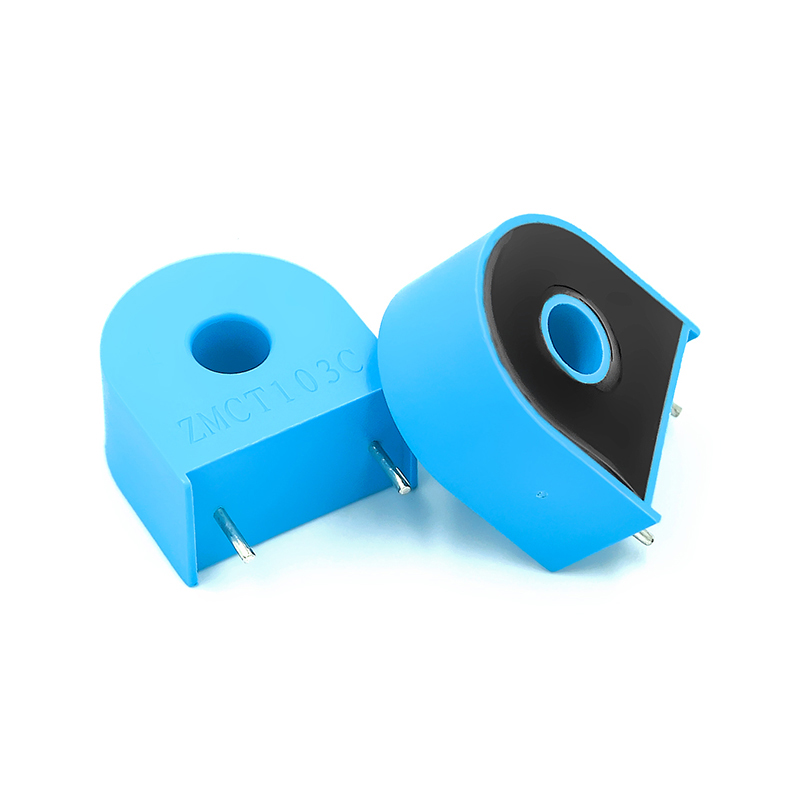

    ZMCT103C Parameters:



    ● Rated input current: 5A

    ● Rated output current: 5mA

    ● Transformation ratio: 1000:1

    ● Phase difference: less than or equal to 20 (100 Ω)

    ● Linear range: 0-10A (100 Ω)

    ● Linearity: 0.2%

    ● Precision level: 0.2 level

    ● Isolation and withstand voltage: 3000V

    ● Operating temperature: -40 ℃~70 ℃

    ● Sealing material: epoxy resin

    ● Module power supply voltage: 5-30V DC



    Usage:



    During measurement, the measured signal wire passes through the round hole of the transformer, VCC and GND are connected to the DC-30V power supply, and VOUT and GND are connected to the oscilloscope. Adjust the Potentiometer to get the waveform you want. The amplitude of the waveform will increase with the measured current, but not more than 1/2 VCC
