XL6009 Upgraded Version DC-DC Adjustable Step-up Module 5-32V Boost 5-40V 4A With Digital Display Exceeding LM2577Item NO.: XL6009 upgrade
-
Customized Requirements
- Quantity
-
-
- Product Name: XL6009 Upgraded Version DC-DC Adjustable Step-up Module 5-32V Boost 5-40V 4A With Digital Display Exceeding LM2577
- Item NO.: XL6009 upgrade
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Upgraded Version , 4A , With Digital Display , DC-DC , XL6009 , Adjustable Step-up Module , 5-32V Boost 5-40V
- Creation Time: 2024-04-10

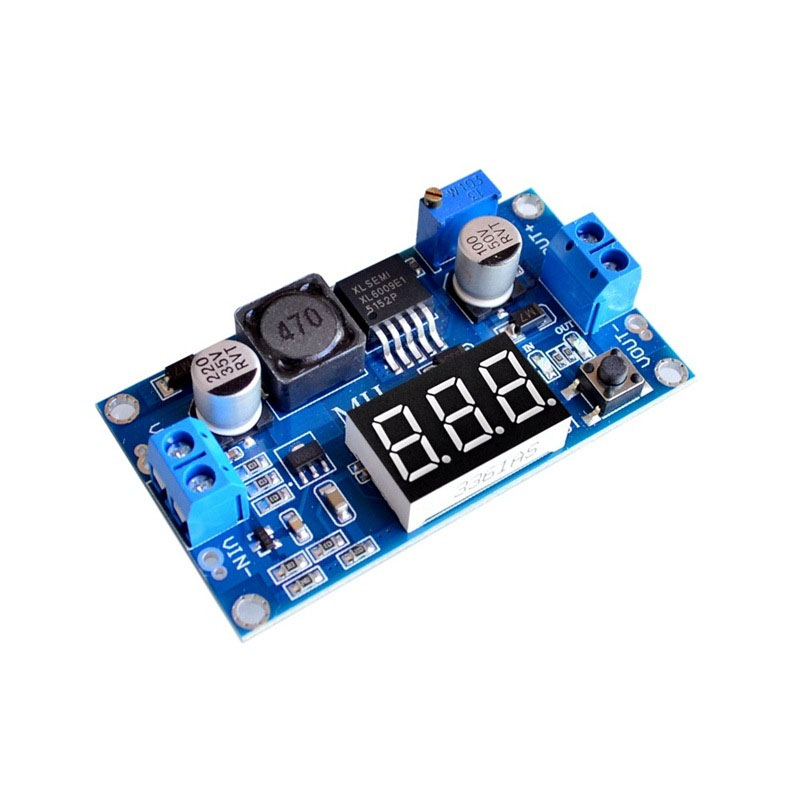

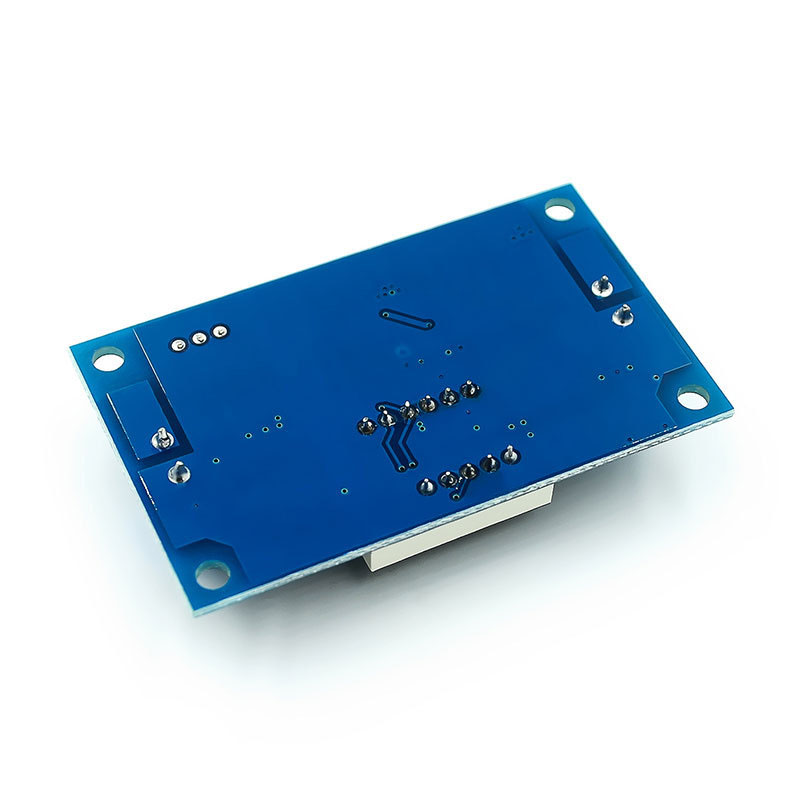

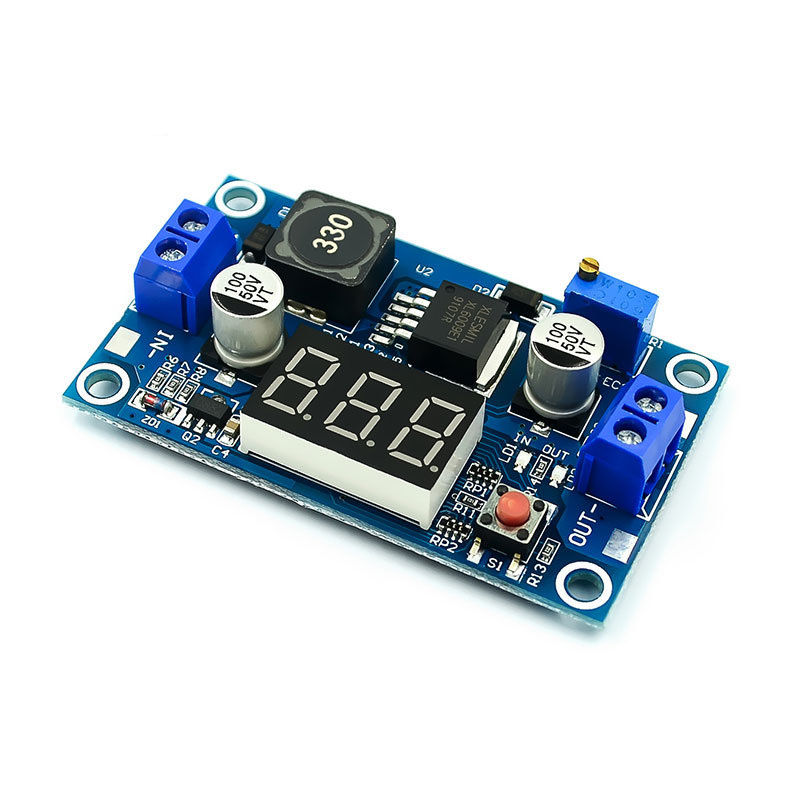

XL6009 Adjustable Step-up Module With Digital Display
Advantages Of the Upgraded Version:
Adopting an internal high-precision benchmark and a partial voltage sampling resistor with a low temperature drift of one thousandth, the software performs multiple filtering processing, greatly improving the accuracy of the collected voltage.
Key Function Description:
Each time the key is pressed, the voltage displayed on the Nixie tube switches between the input and output voltages. At the same time, the input LED and output indicator LED on the board are also switched. Press the key for 2 seconds to turn off the Nixie tube.
Parameter Description:
● Ultra wide input voltage is 3V~32V (voltage rise below 5V works normally, but Nixie tube does not work), and the best working voltage range is 5~32V;
● Ultra wide boost output voltage of 5V~40V;
● Built-in 4A high-efficiency MOSFET switch transistor, achieving an efficiency of 94%; (LM2577 current only 3A)
● The ultra-high switching frequency of 400KHz can achieve very good results with a small capacity filter capacitor, with smaller ripple and smaller volume. (LM2577 frequency only 50KHz)
● With input display indicator and output display indicator, the IN indicator lights up when the Nixie tube displays the input voltage, and the OUT indicator lights up when the Nixie tube displays the output voltage
Wiring Instructions:
● IN+: Input positive pole
● IN -: Input negative pole
● OUT+: output positive pole
● OUT -: Output negative pole
Other Instructions:
XL6009 is a high-performance boost (BOOST) module with a 4A switching current. This module uses XL6009E1, a second-generation high-frequency switching technology, as the core chip, with performance far exceeding that of LM2577, a next-generation technology. The XL6009 boost module has lower cost and better performance, and the LM2577 module is about to be phased out.
● Equipped with wiring terminals, it can be easily used without soldering iron, and the solder wire connection points are retained.
● Equipped with overheating protection and short circuit protection functions
● Size 65 * 39 * 14mm
● Weight 24g
Technical Parameters:
● Module nature: Non isolated boost (BOOST)
● Rectification method: asynchronous rectification
● Input current: 4A (), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the no-load current.)
● Conversion efficiency:<94% (the greater the pressure difference, the lower the efficiency)
● Switching frequency: 400KHz
● Output ripple: 50mV (the higher the voltage, the greater the current, and the larger the ripple)
● Load adjustment rate: ± 0.5%
● Voltage adjustment rate: ± 0.5%
● Operating temperature: -40 ℃~+85 ℃
● Outline dimensions: 65mm * 39mm * 14mm (length * width * height)
