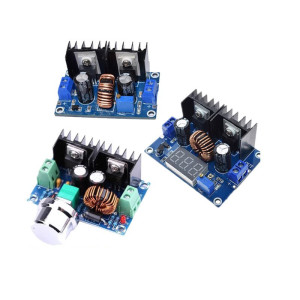

XH-M401 DC-DC Step-down Module XL4016E1 High-power DC Regulator XH-M404 Digital Display Large 8A with Voltage StabilizationItem NO.: XL4016E1
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M401 DC-DC Step-down Module XL4016E1 High-power DC Regulator XH-M404 Digital Display Large 8A with Voltage Stabilization
- Item NO.: XL4016E1
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 8A , Digital Display , DC-DC , Step-Down Module , XH-M401 , XH-M404 , XL4016E1 , DC Regulator , Voltage Stabilization
- Creation Time: 2024-04-10
XL4016E1 DC-DC Step-down Module

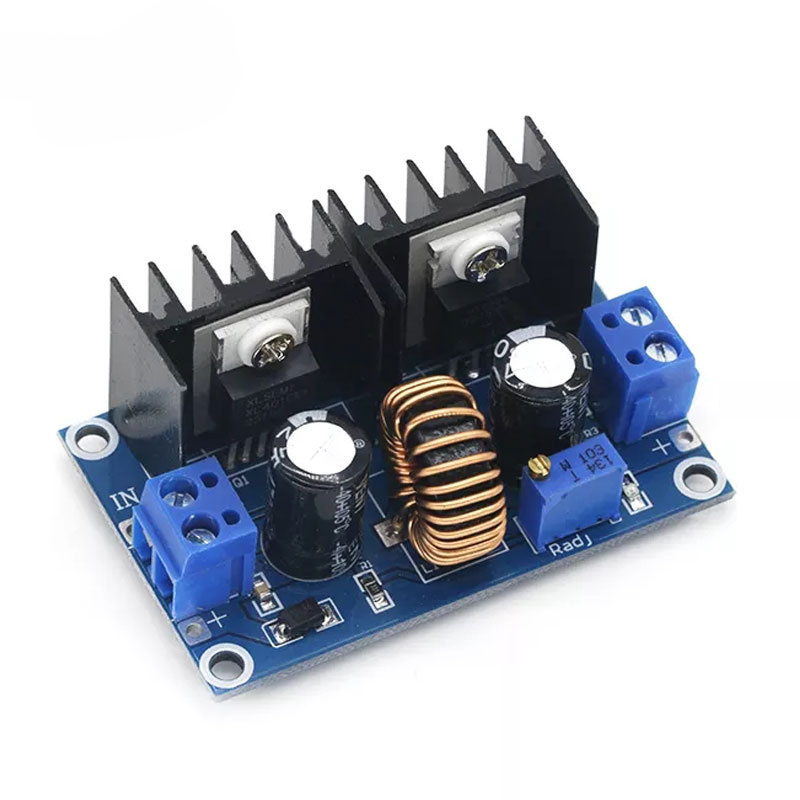

XH-M401(A) Product Parameters:
●Input voltage: DC 4-38V
●Output voltage: DC 1.25-36V
●Output current: 8A (recommended for long-distance running within 5A)
●Switching frequency: 180KHz
●Efficiency: 95%
●Power: 250W
●Working temperature: -45℃~+85℃

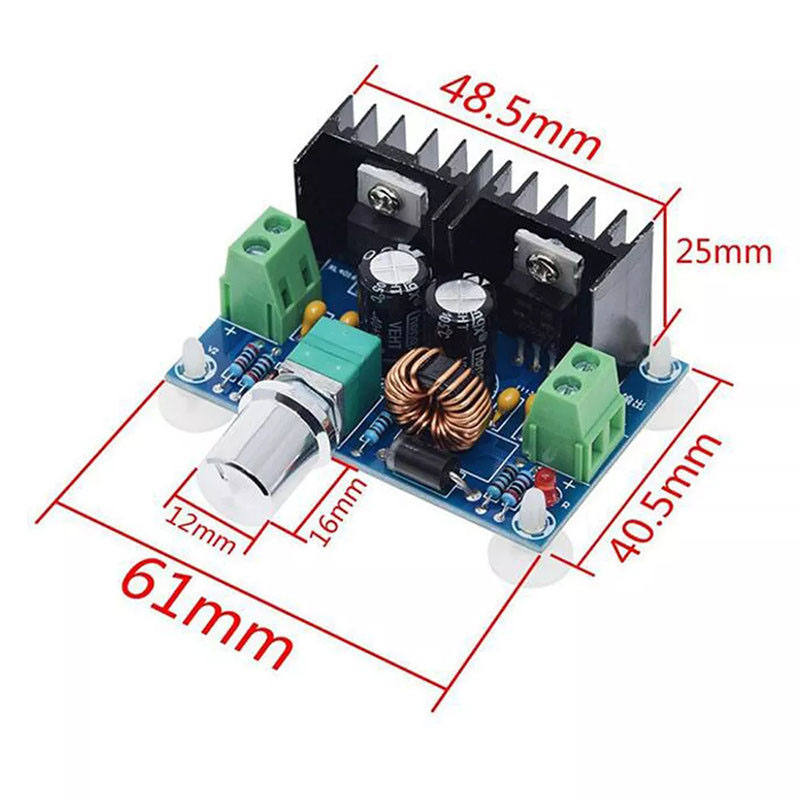

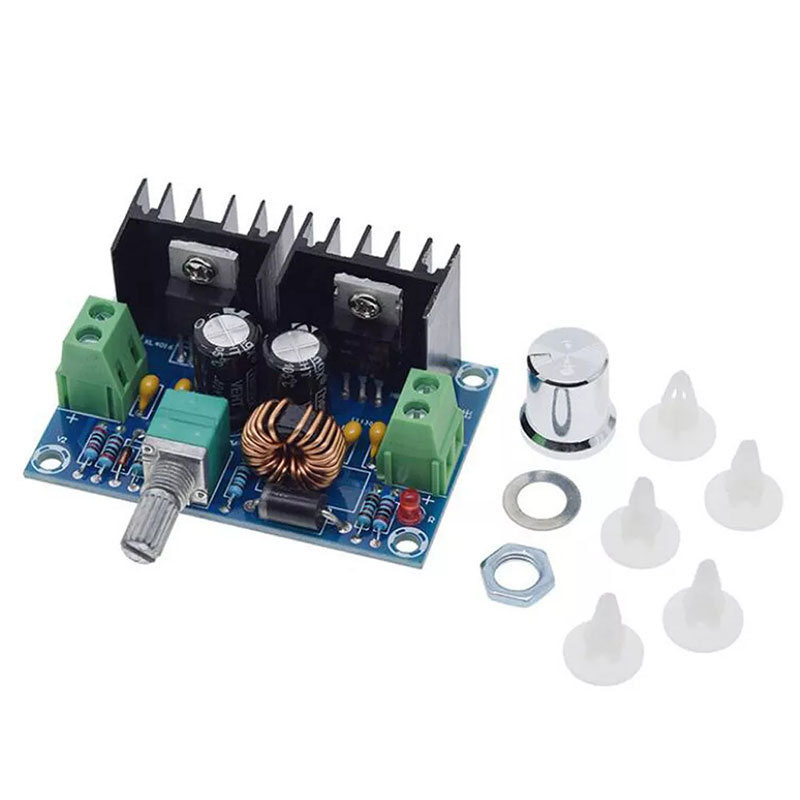

XH-M401(B) Product Parameters:
● Product name: DC voltage regulator
● Voltage regulation method: PWM modulation
● Input voltage DC4-40V
● Output range: DC1.25-36V
● High current: 8A
● High power: 200W
● Conversion efficiency: 94%
● Switching frequency: 180KHZ
● Appearance size: 61 * 41 * 27MM
● Weight: 50 grams

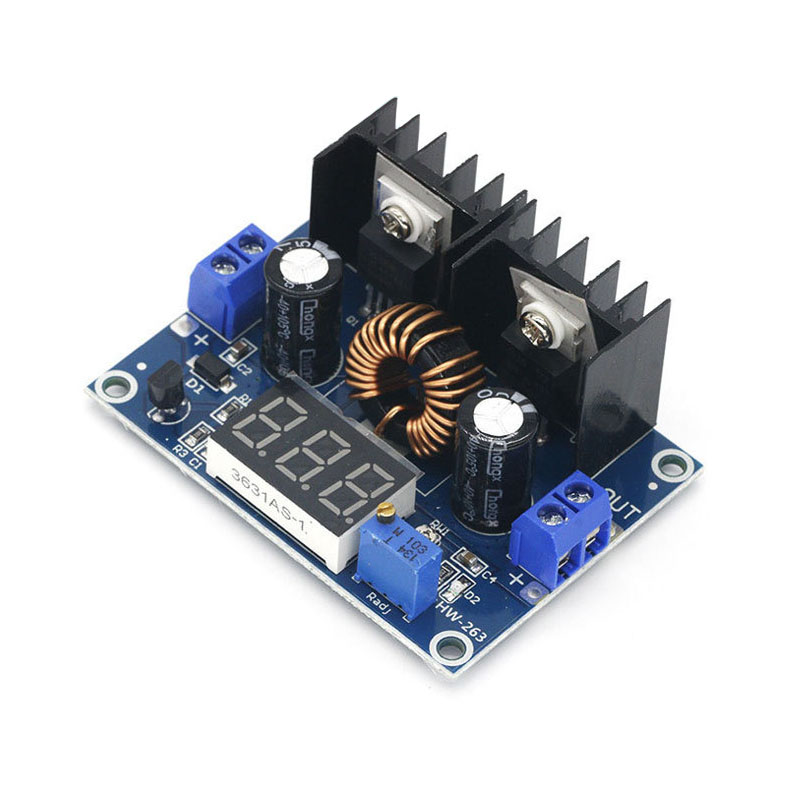

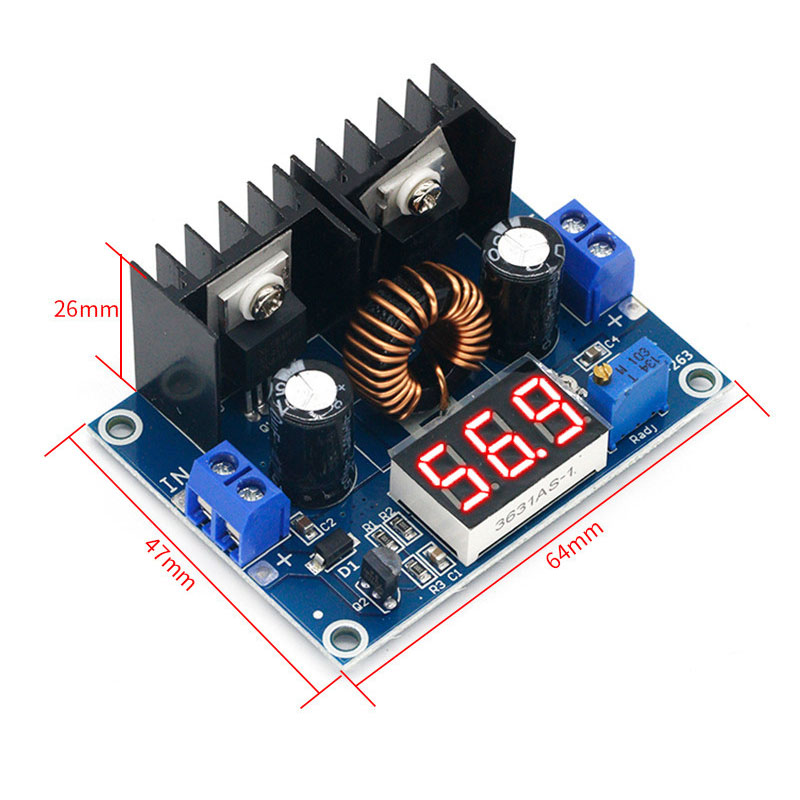

XH-M404 Product Parameters:
● Input voltage: DC4-38V
● Output range: DC1.25-36V
● Output current (Max): 8A (recommended for long-distance running within 5A)
● Switching frequency: 180KHZ
● Power (Max): 250W (Max)
● Efficiency: 95% (Max)
● Operating temperature: -45 ℃~+85 ℃
● Display mode: 0.36 inch three digit red Nixie tube
