Bidirectional Forward Reverse Rotation DC Motor Governor With Digital Display Scale Tachometer 40A 12V24V36Item NO.: MK01559

DC Motor Governor 40A 12V24V36V

Product Information:

● with positive and negative switch, potentiometer knob with switch, which can be controlled by PLC. The forward and reverse switches can be replaced by inching switches.

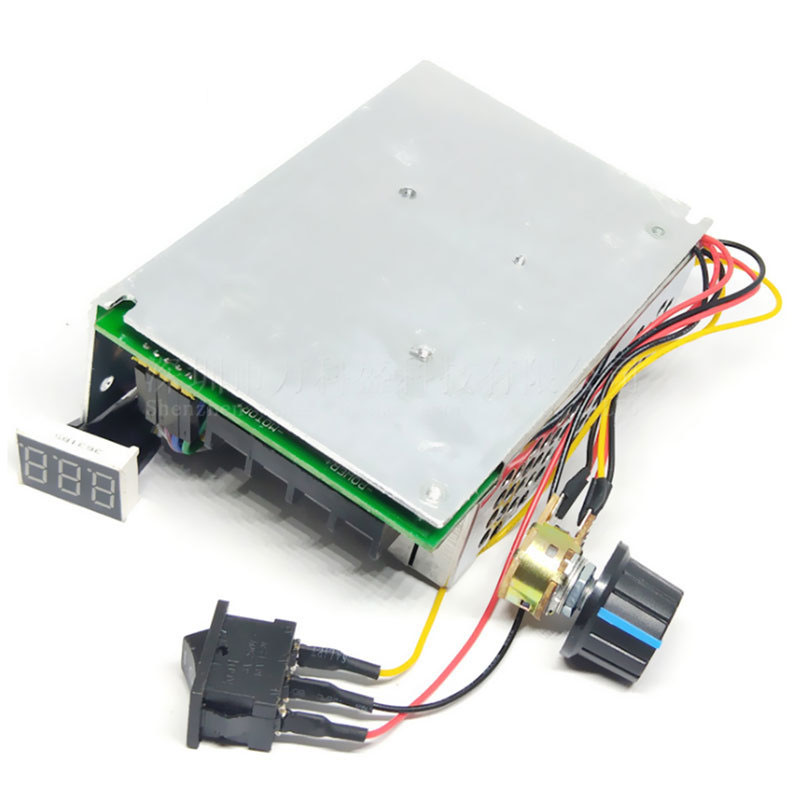

● the display tube and module are connected by a flat cable. The flat cable may loose and fall off during express transportation. The buyer needs to plug it tightly and firmly by himself. Don't shoot if you mind.

● positioning with 0-100% digital scale

Technical Indicators:

● input voltage: dc10-55v (equal to rated voltage of motor)

● output voltage: linear under load

● maximum current: 60A

● continuous current: 40A (pay attention to heat dissipation or reduce current for long-term use)

● speed regulation type: current regulation

● speed regulation mode: potentiometer (linear)

● supporting motor: DC brush motor

● forward rotation and reverse rotation: support

● speed regulation range: 0-100%

● control frequency: 15KHz

● wiring type: terminal

● knob specification: 100k (with switch)

● wiring type: barrier terminal

● net weight of product: 249g

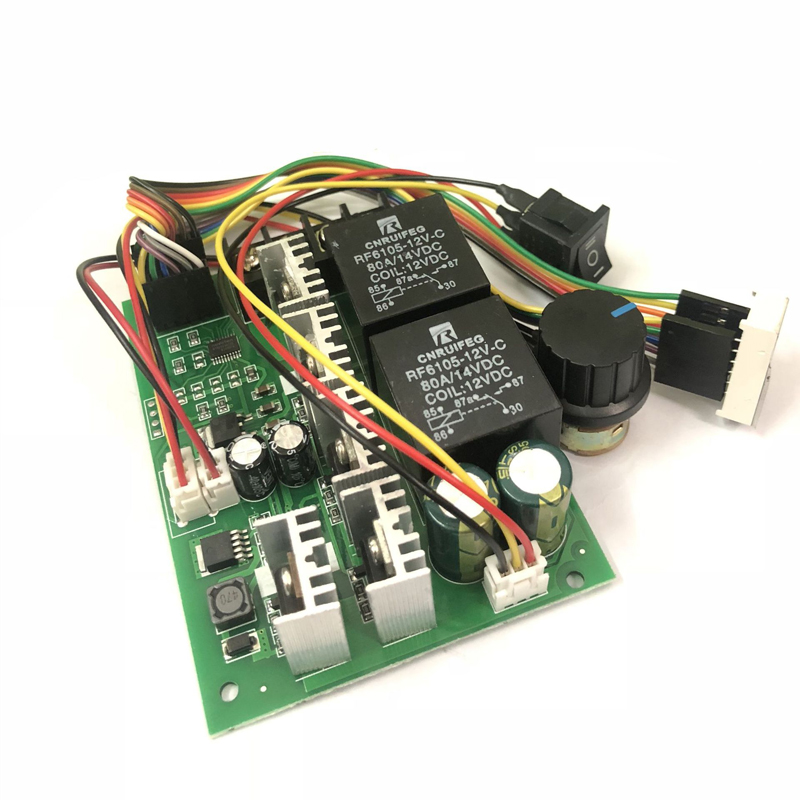

● main board size: 100mm*76mm*28mm

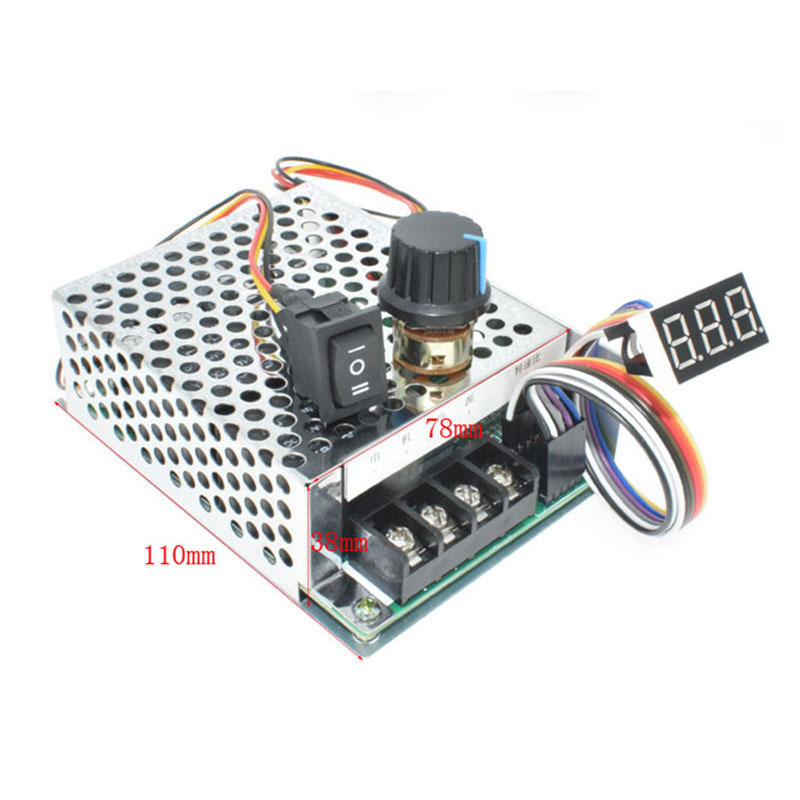

● shell size: 110*78*38mm

Note:

● the digital display is the percentage of motor full speed 0-100, which is not the actual speed of the motor

● the input voltage must be positive or negative

● the input voltage shall be equal to the rated voltage of the motor within 10-55v of DC

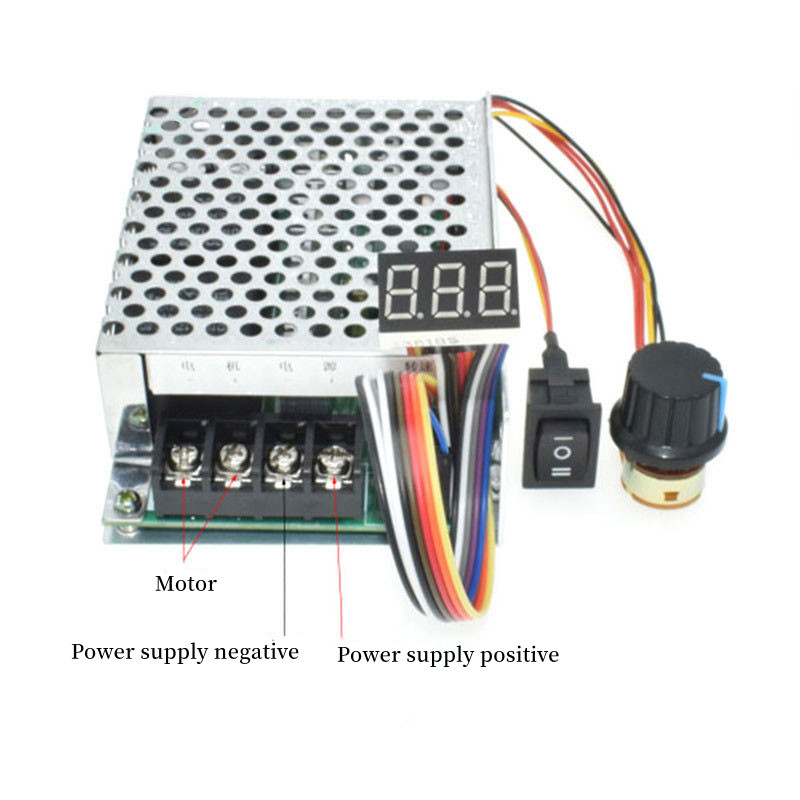

● make sure that the positive and negative connections are correct before power on. Do not touch the heat sink for wiring, which may burn the circuit board. Note that this is not a power module, and the speed can be adjusted only when the motor is connected. The output of the multimeter without the motor does not change, and the AC cannot be connected. For brush motor.
