- Product Name: TTP223 Capacitive Touch Switch Touch Button Module Digital Touch Sensor Module
- Item NO.: TTP223LC
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: TTP223 , Capacitive Touch Switch , Digital Touch Sensor Module , Touch Button Module
- Creation Time: 2024-05-08
TTP223 Capacitive Touch Switch
Product Information:

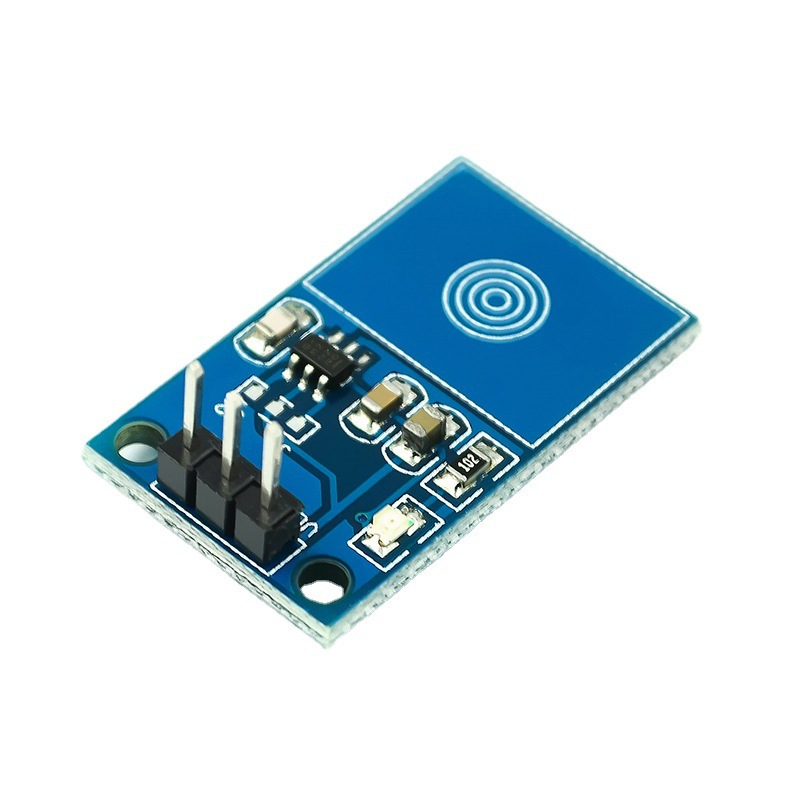

1. Onboard TTP223 capacitive single touch sensing IC
2. Onboard level status indicator
3. Working voltage: 2.0V-5.5V

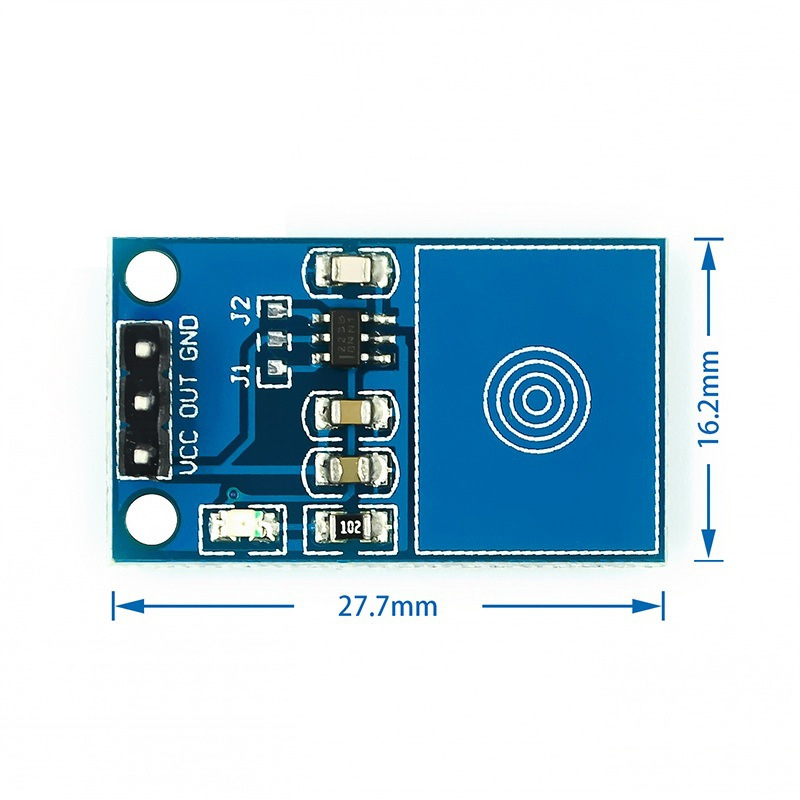

4. PCB board size: 29 (mm) x16 (mm)
Touch key detection IC, providing 1 touch key. The touch detection IC is designed to replace traditional button keys with variable area keys. Low power consumption and wide operating voltage are DC and AC characteristics of touch keys. After powering on, a stabilization time of about 0.5 seconds is required. During this period, do not touch the key. At this time, all functions are disabled, and self calibration is always performed. When the key is not touched, the recalibration cycle is about 4.0 seconds. With blue LED indicator on the board
Output OUT can directly control the relay module in our store, or directly input the IO of a microcontroller or the IO of an ARDUINO development board
The module output mode is selectable. (Short-circuit pad A or B of the board with tin to change the output mode, with a short circuit of 1 and a disconnection of 0
Pin Definition:
Pin 1 is power supply+VCC
Pin 2 is output OUT
Pin 3 is power supply - GND
Product Application:
● Extensive consumer products
● Waterproof electrical appliances
● Button key replacement
