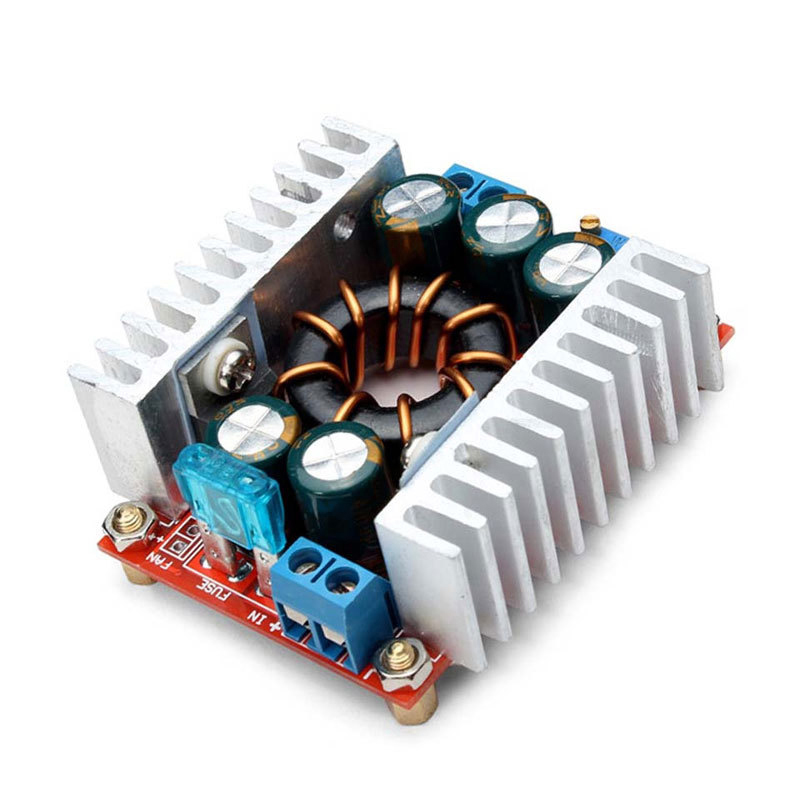

DC-DC 15A Synchronous Rectification High Power Adjustable Step-Down Automotive LED Regulated Power ModuleItem NO.: MK02224
-
Customized Requirements
- Quantity
-
-
- Product Name: DC-DC 15A Synchronous Rectification High Power Adjustable Step-Down Automotive LED Regulated Power Module
- Item NO.: MK02224
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 15A , DC-DC , Synchronous Rectification High Power , Adjustable Step-Down , Regulated Power Module
- Creation Time: 2024-05-13

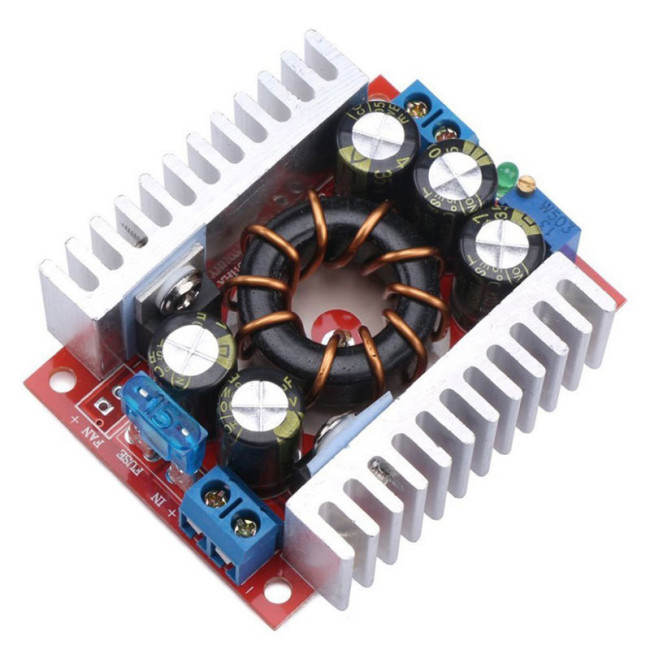

LED Regulated Power Module DC-DC 15A
Introduction to Synchronous Rectification Technology:
Synchronous rectification is a new technology that uses power MOSFETs with extremely low on state resistance to replace rectifier diodes and reduce rectification losses. It can greatly improve the efficiency of DC/DC converters and there is no dead zone voltage caused by Schottky barrier voltage. Power MOSFETs belong to voltage controlled devices, and their volt ampere characteristics exhibit a linear relationship during conduction. When using power MOSFETs as rectifiers, it is required to maintain synchronization between the gate voltage and the phase of the rectified voltage in order to complete the rectification function, hence it is called synchronous rectification. Synchronous rectification technology greatly reduces the rectification loss at the output end of the switching power supply, thereby converting efficiency and reducing the heating of the power supply itself.
Module Parameters:
● Module nature: Non isolated buck module (BUCK) synchronous rectification
● Input voltage: 4-32V, please reserve the voltage margin.
● Output voltage: 1.2-32V continuously adjustable (continuously adjustable)
1.2-32V fixed output
● Input and output. Small pressure difference: 1V
● Output current: Within 10A of natural heat dissipation for a long time, the temperature rise does not exceed 60 degrees, and the peak value can reach 20A. Please derate when the ambient temperature is high.
● Operating temperature: -40~+85 degrees Celsius
● Operating frequency: 150KHz
● Conversion efficiency: 98% higher (efficiency is related to input and output voltage, current, and voltage difference)
● Short circuit protection: with (limited current 2) input fuse of 1
● Overtemperature protection: Yes (automatic reduction of output current after overtemperature)
● Input reverse protection: None (if necessary, please input a diode in series)
● Installation method: 4 3mm screws
● Wiring method: terminal block, solderless, V-IN input, V-OUT output

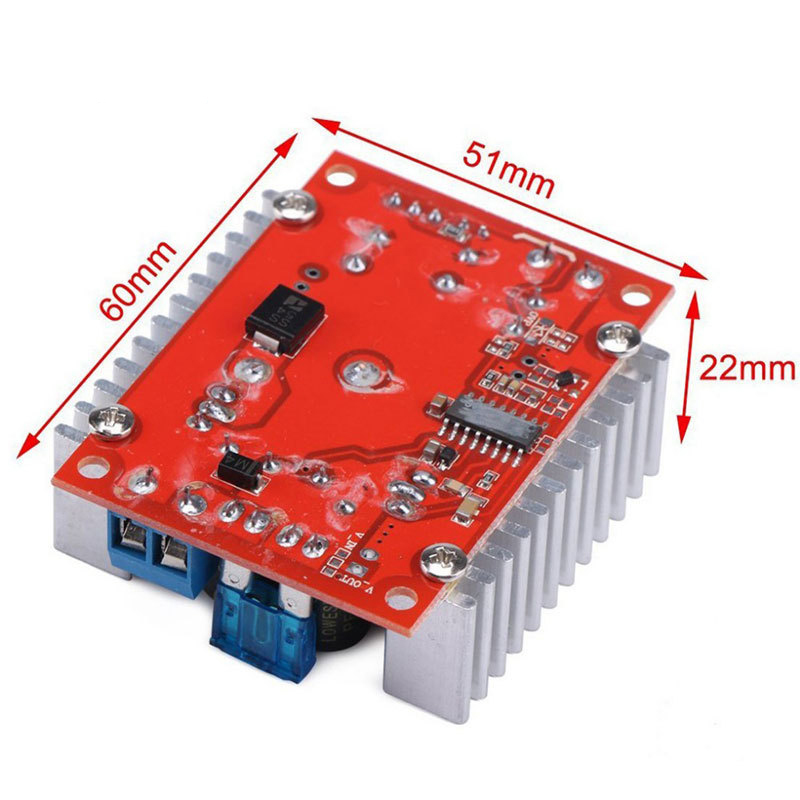

● Module size: 60mm long, 51mm wide, and 22mm high
Application Scope:
This module can be applied in the field of voltage reduction where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable regulated power supplies, 24V car mounted pen and meter power supplies, car mounted LED light strip power supplies, industrial equipment voltage reduction, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, etc.
